PERFORMANCE - Digital Hotplate Magnetic Stirrer

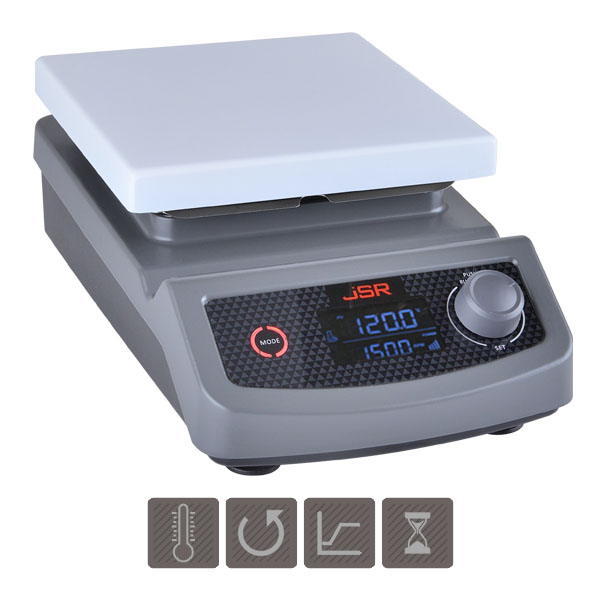

PERFORMANCE Series JSHS-18DX Digital Hotplate Stirrer utilize the most advanced Digital Fuzzy Control technology of stirring speed, temperature and time. The most outstanding performance of JSHS-18DX is detached magnetic bar detection and automatic optimal stirring speed correction algorithm to resume stirring without fail. It also provides OIL heating mode for high viscous medium heating. Control temperature range max. 400 °C in 0.1 °C display resolution, stirring speed range from 80 to 1,500 rpm, timer set to 99 hr 59 min. Durable and rugged aluminum casting body and chemical resistant ceramic coated top plate.
| DETACHED MAGNETIC BAR DETECTION + OIL HEATING MODE |
 |
Features
|
Performance |
|
- Detect detached magnetic bar with automatic optimal stirring speed correction Controller and motor equipped with special algorithm, when it detects detached magnetic bar it stops stirring and place the magnetic bar on the center position. Controller automatically reset to optimum stirring speed and restart stirring action repeatedly to prevent damage of sample which may be caused by stirring failure.
- OIL temperature control Mode for high viscous medium heating Accurate temperature control of high-viscosity medium such as oil, which cannot be controlled by conventional hotplate that is on the market. JSHS-18DX provides dual heating mode for high–viscosity medium (Oil) as well as low-viscosity medium (Water) using PHE-01T External Temperature Probe.

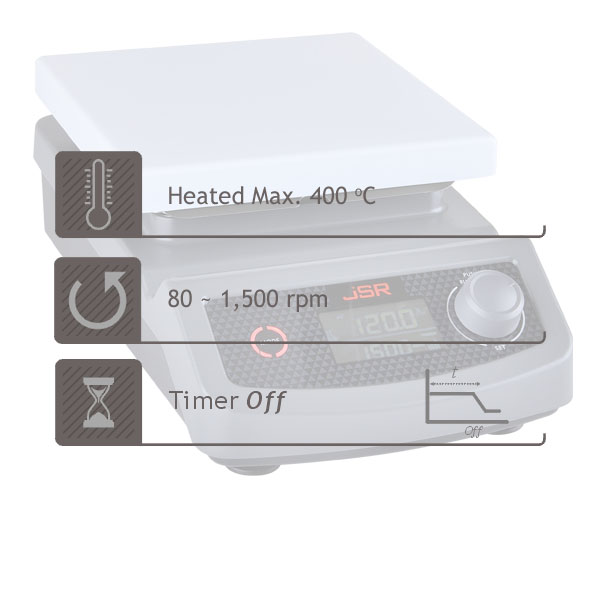

• Temperature setting from + 25 oC to 400 oC in 0.1 oC display resolution within ±3.0℃ accuracy • CA sensor embedded in top plate to measure and control temperature • Stirring speed range from 80 to 1,500 rpm in 5 rpm resolution • Timer setting range from 1 min to 99 hr 59 min
|
|
Controller |
|

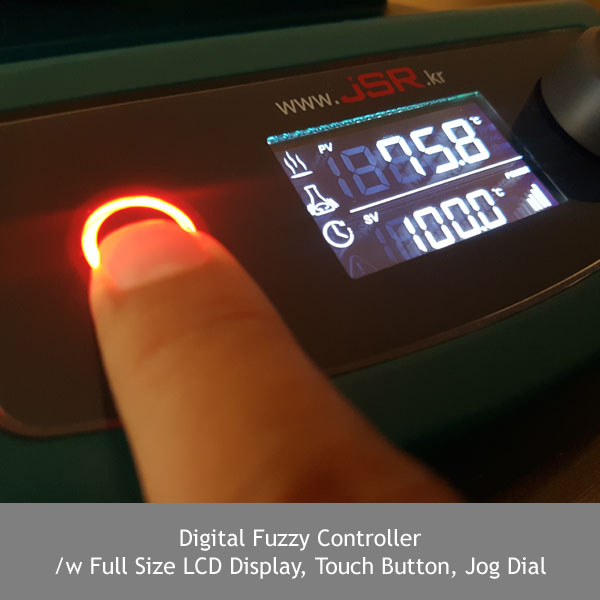

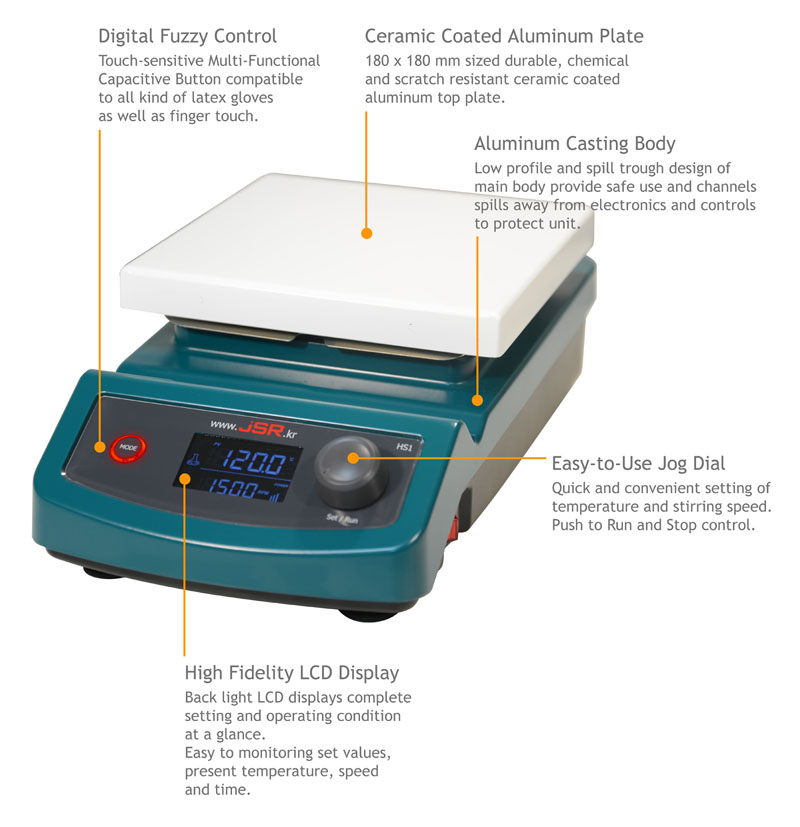

• Automatic speed reset in case of detached magnetic bar • Supports Dual Heating Mode (Oil and Water) • Advanced microprocessor Digital Fuzzy Controller with Touch button and Jog Dial. • Accurate temperature and stirring speed display and control • Rugged, solid and chemical-proof control panel surface • Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. • Easy-to-use Jog Dial for quick and convenient setting of temperature and stirring speed. Push to Run and Stop control. • High-fidelity clear back light LCD display completes setting and operating condition at a glance. Easy to monitor set values, present temperature, speed and time. • Connected to optional External Temperature Probe to directly measure and control sample temperature
|
|
Construction |
|
• 180 x 180 mm sized durable, chemical and scratch resistant ceramic coated aluminum top plate. • Thermal insulation between top plate and body ensure durability and long shelf life • Low profile and spill-trough design of main body provides safe use and channels spills away from electronics and controls to protect unit. • Main body made with aluminum casting with durable epoxy powder coating is resistant to most of the chemical and thermal damage • Base plate made with engineering plastic provides durability and resistant to chemical and fumes • Suction-Cup type Feet provides strong and stable attachment on the table surface
|
|
Convenience |
|

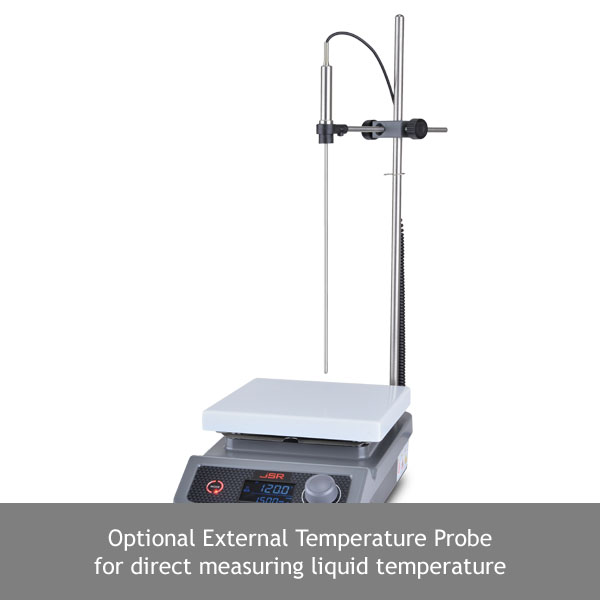

• Screw type attachment hole on the body for optional stand rod • Optional External Temperature Probe to measure sample temperature directly • Optional chemical resistant Teflon Temperature Probe • Optional clamp, holder and wire clip sets
|
|
Safety |
|
• OVER TEMP. PROTECTION • OVER CURRENT CUT-OFF : Fuse
|
General Specifications
|
Model |
|
|
Performance Data |
|
|
Temp. Control Mode |
Mode Selection (Oil or Water) |
|
Temp. Range |
Max. 400℃ |
|
Accuracy |
±0.3℃ at +200℃ |
|
Resolution (Display) |
0.1℃ |
|
Resolution (Control) |
0.5℃ |
|
|
|
|
Detached Magnetic Bar Detection |
Yes |
|
Speed Range |
80 ~ 1500 rpm |
|
Stirring Quantity (H2O) |
20 L |
|
Resolution |
5 rpm |
|
Usable Magnetic Bar |
Max. 50 mm in length |
|
Timer |
Max. 99 hr 59 min |
|
|
|
|
Controller |
|
|
|
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
|
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
|
|
|
Heater and Motor |
|
|
Heating Output |
600 Watt |
|
Temp. Sensor |
CA Type Embedded Sensor |
|
Motor |
30 watt DC Motor |
|
|
|
|
Dimension Data |
(W x D x H mm) |
|
Plate Dims. |
180 x 180 mm |
|
Overall Dims. |
180 x 325 x 110 mm |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
|
|
Material Data |
|
|
Top Plate |
Aluminum with ceramic coating |
|
Body |
Aluminum casting with epoxy powder coating |
|
Base |
Engineering Plastic |
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50 / 60Hz |
|
Phase |
1 Phase |
|
Nominal power |
650 Watt 3.0 amp |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H mm ) |
280 x 460 x 170 mm |
|
Type of packaging |
Carton |
|
Net Weight |
2.9 kg |
|
Shipping Weight |
3.9 kg |
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSHS-18DX |
Digital Hotplate Magnetic Stirrer |
230 VAC 50/60 Hz |
3.0 kg |
3.9 kg |
|
JSHS-18DX-SET |
Digital Hotplate Magnetic Stirrer SET including.... PHE-01T External Temperature Probe, CA, Stainless Steel PHA-03S Stand Rod, Stainless Steel PHA-04H SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea |
230 VAC 50/60 Hz | 3.2 kg | 4.1 kg |
Optional Accessories
|
Art No. |
Descriptions |
|
PHE-01T |
External Temperature Probe, CA, Stainless Steel |
|
PHE-02F |
External Temperature Probe, CA, Teflon |
|
PHA-03S |
Stand Rod, Stainless Steel |
|
PHA-04H |
SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea |
|
|
|
|
|

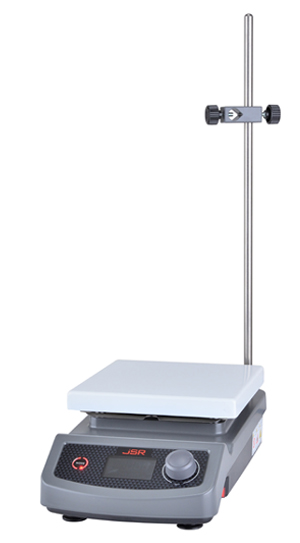

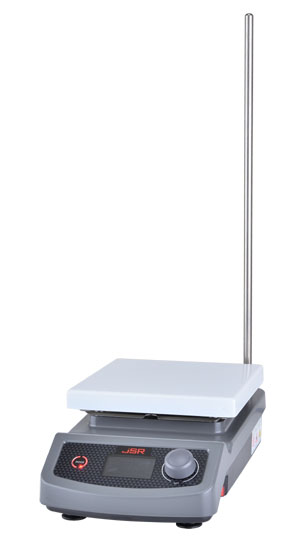

PHA-03S Stand Rod, Stainless Steel |
PHA-03S Stand Rod, Stainless Steel PHA-04H SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea |

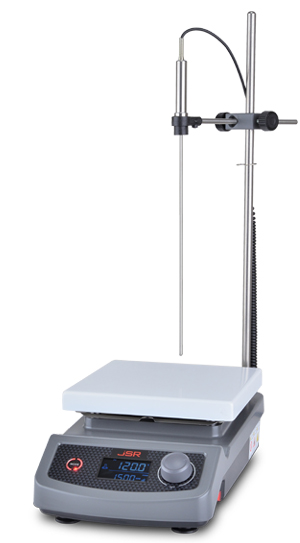

PHA-03S Stand Rod, Stainless Steel PHA-04H SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea PHA-01T External Temperature Probe, CA |
