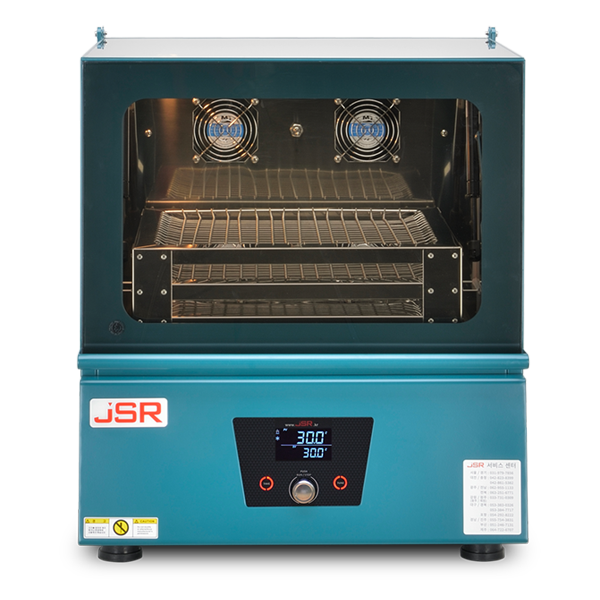

Tabletop Shaking Incubator (탁상형 진탕배양기)
JSSI-070 Series Tabletop Shaking Incubator is compact to fit laboratory table and ideal for any shaking application requiring controlled temperature and shaking speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from + 10°C to +70°C.
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
JSSI-070T : ambient + 5°C ~ 70°C |
|
JSSI-070C : + 10°C ~ 70°C |
|
|
Accuracy |
± 0.2°C at 25.0 oC (JSSI-070C) |
|
Uniformity |
± 1.0°C at 25.0 oC (JSSI-070C) |
|
Shaking Motion |
Orbital |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Control |
Integrated Microprocessor PID Control |
|
Auto STOP Stop Timer |
|
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
Over Current Cut-Off |
|
|
Material |
Body - Epoxy Powder Coated Steel |
|
Chamber – Stainless Steel 304 |
|
|
Tempered Safety Glass Folding Door |
|
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume (Capacity) |
62 L |
||
|
Dimensions |
Inner |
505 x 400 x 310 |
|
|
W x D x H mm |
Outer |
550 x 700 x 660 |
|
|
Platform |
W410 x D380 mm |
||
|
Temperature Range |
ambient + 5°C to 70°C |
+ 10°C to 70°C |
|
|
Accuracy |
± 0.2°C at 37°C |
± 0.2°C at 25 oC |
|
|
Uniformity |
± 1.0°C at 37°C |
± 1.0°C at 25°C |
|
|
Shaking |
Motion |
Orbital |
|
|
Speed |
20 ~ 350 rpm |
||
|
Stroke |
20 mm |
||
|
Working Light |
25 Watt Bulb |
||
|
Heater Capacity |
300 Watt |
500 Watt |
|
|
Refrigeration System |
none |
CFC-Free Air Cooled Compressor |
|
|
Power Rating |
3.2 Amp |
4.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features
|
Controller |
|

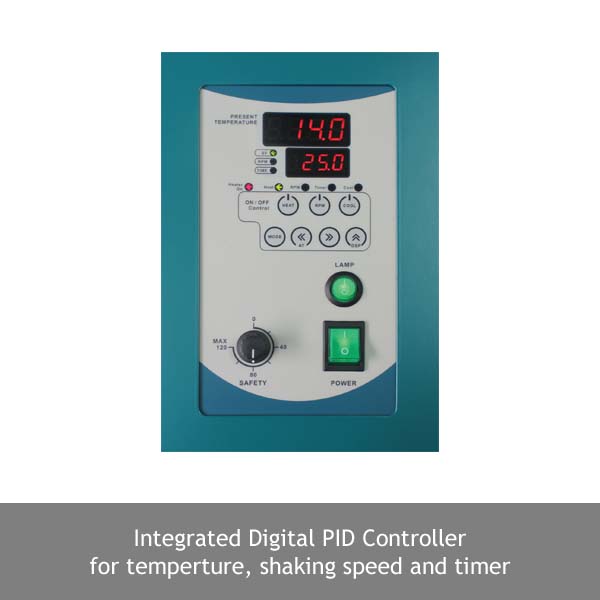

JSC-7S Integrated Digital PID Controller Temperature control with ±0.1°C Shaking speed control within ±1 rpm Automatic STOP timer Max. 99min 59sec / 99hr 59min / 99day 23hr Dual digital LED displays TEMP, RPM and remaining TIME Temperature calibration Shaking speed calibration Slow Start and Stop Control Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

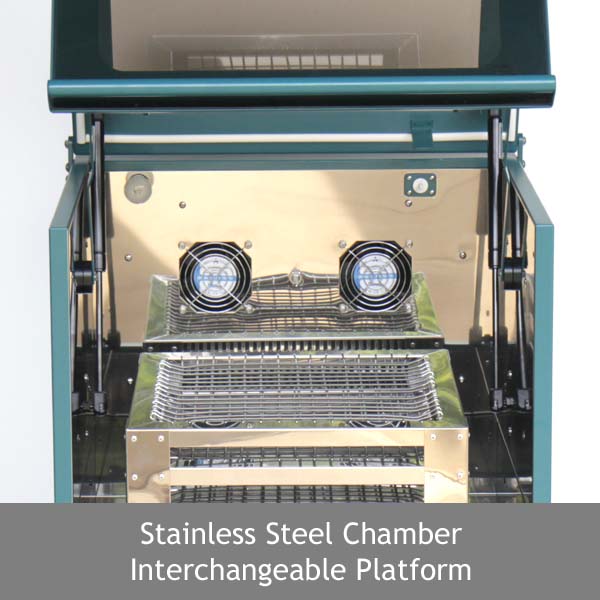

Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Unique design folding tempered safety glass door
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ±0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor Durable shaking mechanism with powerful AC motor supports orbital or reciprocal shaking motion
|
|
Convenience |
|

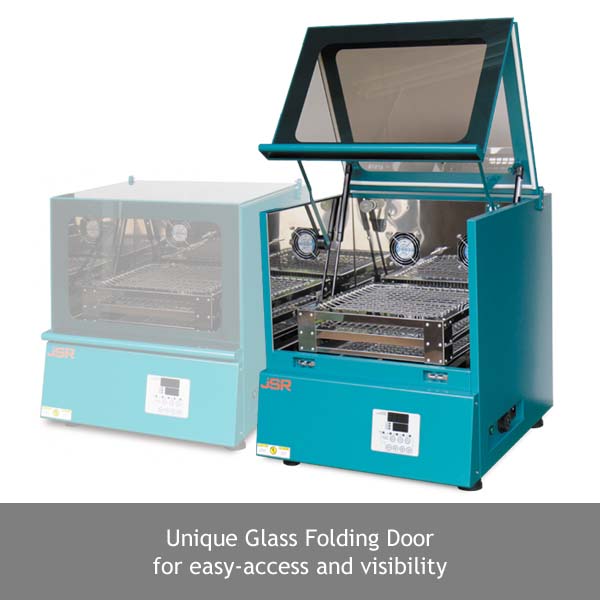

Unique design folding glass door for easy loading and unloading sample in limited space, lighting in chamber for easy observation during cultivation Door switch to cut-off shaking motion when put in and out sample Auto-defrost system, user settable interval and time Height adjustable level feet for balancing, anti-vibration Various choice of shaking platforms
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM Motor failure ALARM Shaking motion automatically stops when door opened OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSSI-070T |
Tabletop Shaking Incubator ambient + 5°C to 70°C Heating only |
220 VAC 50/60 Hz |
85 L |
- |
- |
|
JSSI-070C |
Tabletop Shaking Incubator + 10°C to 70°C /w Cooling |
220 VAC 50/60 Hz |
85 L |
- |
- |
|
(Shaking Incubator supplied without shaking platform and accessories) |
|||||

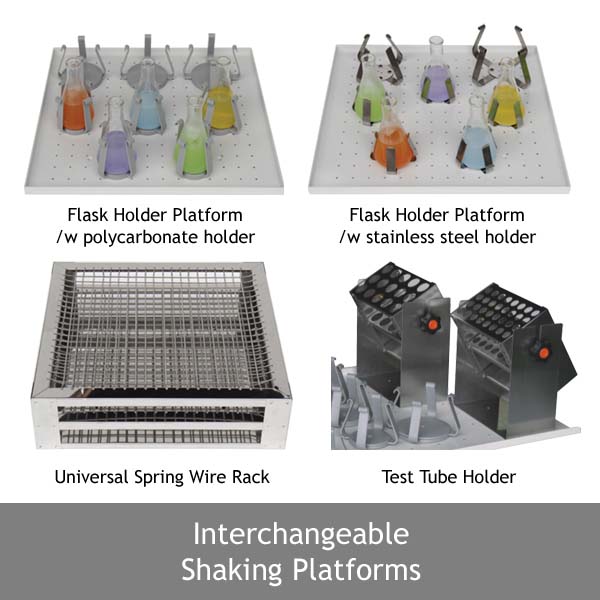

Optional Accessories
|
Art No. |
PHF-U40 |
Universal Spring Rack W410 x D380 mm |
|
|
|
Flask loading capacity (approx.) 100 ml 15 ea 250 ml 8 ea 500 ml 4 ea 1000 ml 2 ea |
||
|
PHF-P40 |
Universal Flask Holder Platform W410 x D380 mm |
||
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 23 ea 200 ~ 300 ml 16 ea 500 ml 9 ea 1000 ml 6 ea |
||
|
PHF-M40 |
Non-Slip Rubber Mat W410 x D380 mm |
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
||
|
|
PHF-S01 |
100 ml |
|
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
Art No. |
Test Tube Holder |
||
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
