Heavy Duty Industrial Oven
Oven, Forced Convection, Industrial Scale, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 410, 960, 1386 liters
 |
catalog-jsio-oven-eng.pdf |
|
Download Data Sheet |
JSIO-400T |
JSIO-960T | JSIO-1400T |
|
|
Industrial Oven |
discontinued |
960 Liter | 1386 Liter |
General Specifications
|
Heating |
Forced Air Convection |
|
|
Horizontal Air Flow |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 0.3°C at 120°C (JSIO-400T) |
|
Uniformity |
± 5.0°C at 120°C (JSIO-400T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 and Galvanized Steel (EGI) |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Floor Standing with Caster |
|
|
Shelf - including perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase or 380±10% VAC 50/60Hz 3-Phase-4-Wire |
|
Plug config. |
30 AMP |

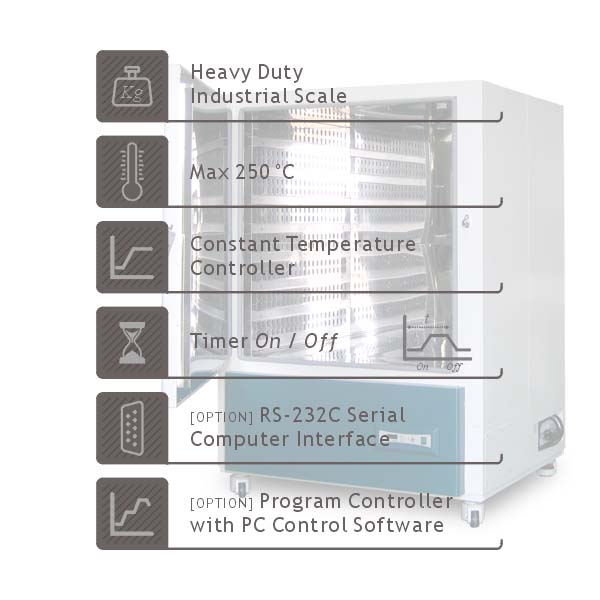

Features

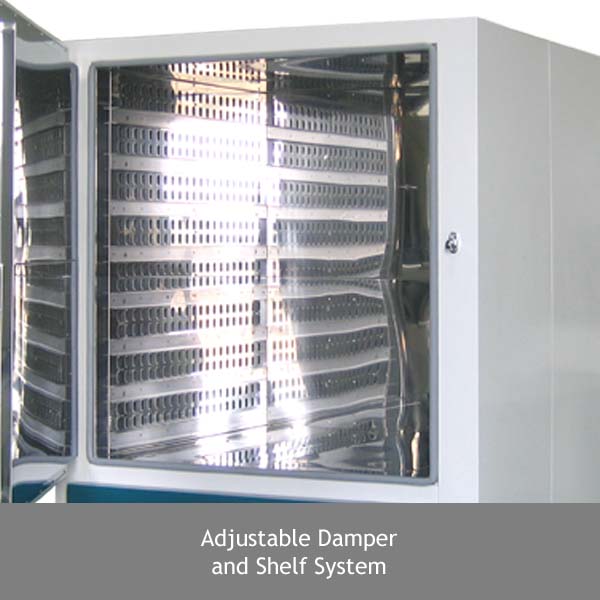

| Construction | Chamber | Adjustable Air Damper | ||
 |
 |
 |
|
Performance |
|

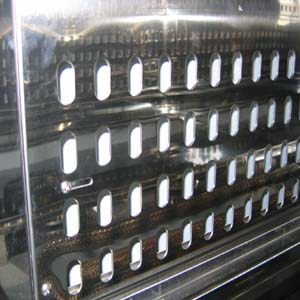

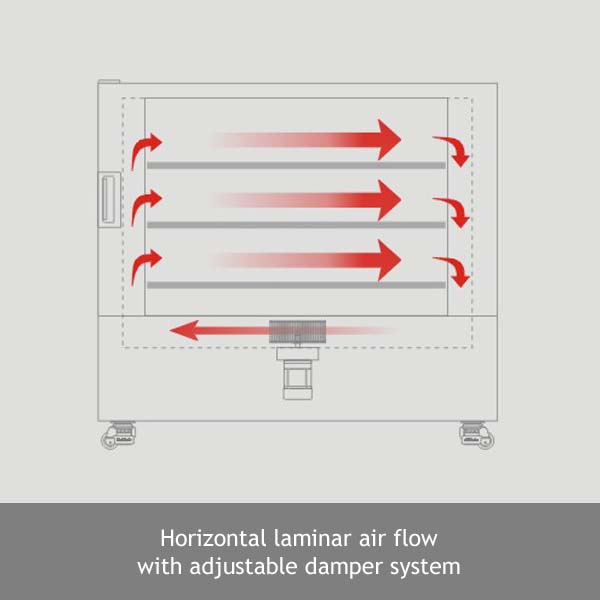

• Forced Air Convection for quick drying and better temperature uniformity • High capacity powerful sirocco blowers provide big volume of horizontal air flow • Adjustable damper system on each shelf level allow maintaining optimum air circulation throughout the chamber to achieve excellent temperature uniformity and operational condition • Separate heating compartment located on bottom plate prevents contamination and maintenance free • The sliding type shelf is suitable for drying large volumes of samples
|
|
Controller |
|
• ±0.1°C Digital PID Controller with LED Display • Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 and galvanized steel chamber • Opening size adjustable ventilation damper • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|

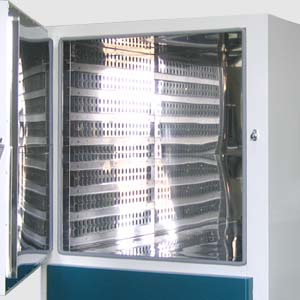

• Floor standing industrial scale big volume oven provides more throughput and productivity of sample treatment • Corrosion resistant Stainless Steel 304 and galvanized steel chamber • Removable 3 tier shelf • Outer door with silicone gasket and compression door lock • Caster for easy transport
|
|
Safety |
|
• DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit • DOOR SENSOR : Door switch cut-off heater and blower when door opened • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Models
|
DESCRIPTIONS |
|
||
|
Dimension Data |
|
|
|
|
Chamber Volume |
|
960 Liters |
1386 Liters |
|
Inner Dims. (W x D x H mm) |
|
1000 x 800 x 1200 |
1100 x 1050 x 1200 |
|
Outer Dims. (W x D x H mm) |
|
1285 x 1035 x 1960 |
1385 x 1235 x 1960 |
|
No. of Ventilation Damper |
|
1 ea |
1 ea |
|
Shelf Minimum Spacing |
|
140mm |
140mm |
|
No. of Shelf Position |
|
8 |
8 |
|
No. of Perforated Shelf included |
|
3 |
3 |
|
|
|
|
|
|
Performance Data |
|
|
|
|
Heating System |
Forced Air Convection, Horizontal Air Flow |
||
|
Temp. Range |
Amb. +10 oC ~ +250 oC, 0.1 oC resolution |
||
|
Accuracy at 120 oC |
|
±0.5 oC |
±0.5 oC |
|
Uniformity at 120 oC |
|
±6.0 oC |
±8.0 oC |
|
Heat up time to 120 oC |
|
25 min. |
25 min. |
|
|
|
|
|
|
Controller |
|
|
|
|
Processor |
Digital Microprocessor PID Temperature Controller |
||
|
Display |
4 Digit LED Display |
||
|
Temp. Calibration |
Built-in Temperature Calibration |
||
|
|
Auto-tuning |
||
|
Temp. Resolution |
0.1 oC |
||
|
Timer Scale |
99 min 59 sec / 99 hr 59 min / 99 dy 23 hr |
||
|
Timer |
Automatic START/STOP timer / Continuous Operation |
||
|
Sensor |
CLASS A PT-100 Ω Sensor |
||
|
|
|
||
|
Safety Data |
|
|
|
|
Safety Device |
DUAL OVER TEMP. CUT-OFF |
||
|
|
Digital system cut-off heater and AUDIO VISUAL ALARM |
||
|
|
Analog system cut-off heater 10% above set temp. |
||
|
|
MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM |
||
|
|
CUT-OFF heater and blower when door opened |
||
|
|
SENSOR DISCONNECTION ALARM |
||
|
|
Over Current CUT-OFF |
||
|
|
|
||
|
Material Data |
|
|
|
|
Body |
Epoxy Powder Coated SPCC Steel |
||
|
Chamber |
Stainless Steel 304 (AISI304) and Galvanized Steel (EGI) |
||
|
Door |
High Temperature Foamed Silicone Packing |
||
|
Insulation |
50 mm Woven Mineral Wool |
||
|
Perforated Shelf |
Stainless Steel 304 |
||
|
|
Floor Standing with Caster |
||
|
|
|
|
|
|
Electrical Data |
|
|
|
|
Rated voltage |
|
380 ± 10% VAC |
380 ± 10% VAC |
|
Power frequency |
|
50 / 60Hz |
50 / 60Hz |
|
Heater Output |
|
7.5 kW |
10.5 kW |
|
Nominal power |
|
7.7 kW 11.7 amp |
10.7 kW 16.3 amp |
|
Phase |
|
3 Phase |
3 Phase |
|
Plug configuration |
|
380 VAC 4 Wire |
380 VAC 4 Wire |
Ordering Information
|
Art No. |
Descriptions |
Capacity |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSIO-960T |
Heavy Duty Industrial Oven |
960 L |
380 VAC 50/60 Hz 3P 4W |
335 kg |
470kg |
|
JSIO-1400T |
Heavy Duty Industrial Oven |
1386 L |
380 VAC 50/60 Hz 3P 4W |
380 kg |
520 kg |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A16 |
for JSIO-600T W990 x D760 mm |
|
PHS-A18 |
for JSIO-1200T W1090 x D1010 mm |
