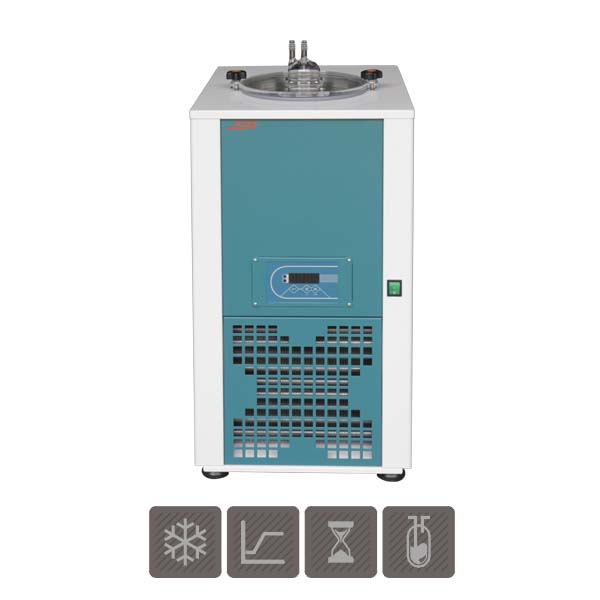

Ultra Low Temp. Cold Trap Bath

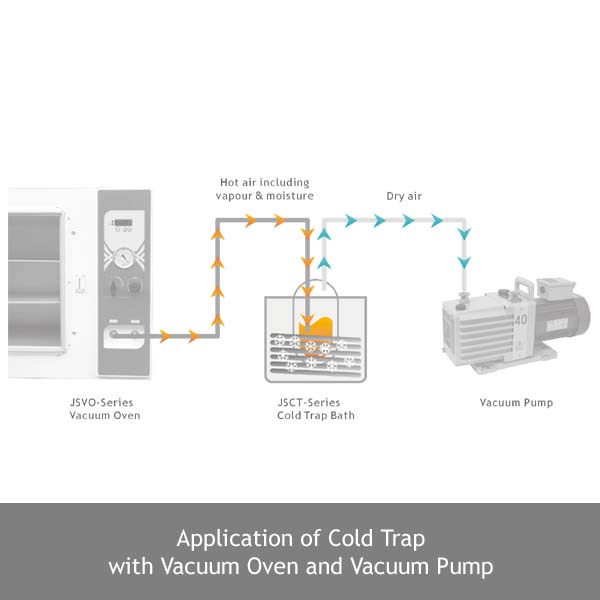

In vacuum applications, JSCT-Series Cold Trap Bath provides freezing temperature -35°C or -85°C to condensates and removes vapor or moisture being evacuated in the vacuum line to protect the vacuum pump from corrosion. The Traps may also be used in other laboratory applications such as freeze drying and desiccation.
 |
download_catalog_cold_trap_bath.pdf |
Specifications
|
Cooling |
CFC Free Air Cooled Compressor |
|
Temp. Range |
-35.0°C (JSCT-35C) |
|
|
-55.0°C (JSCT-55ULT) |
|
|
-85.0°C (JSCT-85ULT) |
|
Control |
Digital ON/OFF Controller |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Seamless Stainless Steel 304 |
|
|
Lid – Transparent acrylic lid for ø 60mm glass trap with gasket |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
||||
|
Bath Volume (Capacity) |
7.2 L |
|||
|
Dimensions |
Inner |
∅200 x H 230 |
||
|
W x D x H mm |
Outer |
370 x 460 x 640 |
370 x 470 x 730 |
370 x 470 x 730 |
|
Temperature Range |
- 35°C |
- 55°C |
- 85°C |
|
|
Accuracy |
ON/OFF within ± 2.0°C |
|||
|
Drain Valve |
Yes |
|||
|
Glass Trap Lid |
Transparent acrylic lid with ∅60 mm hole for glass trap |
|||
|
Refrigeration System |
CFC Free Air Cooled Compressor |
|||
|
Power Rating |
3.1 Amp |
4.1 Amp |
4.1 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|||

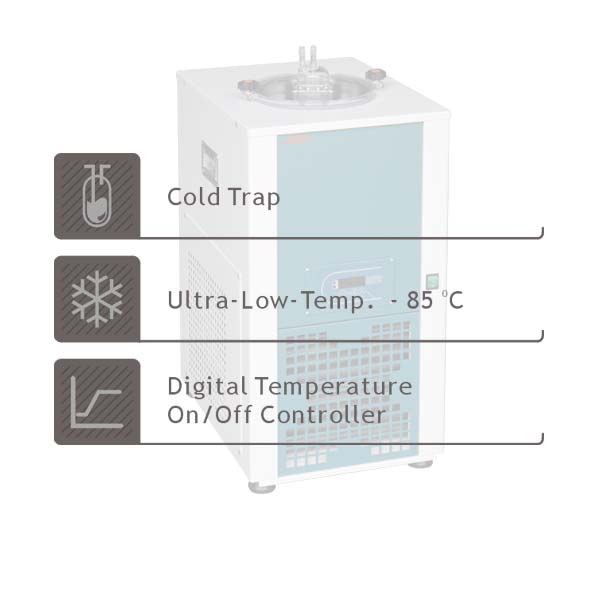

Features
|
Controller |
|
JSC-0D Digital PID Controller ±2.0°C Digital ON/OFF Controller with LED Display Temperature calibration Class A Pt-100 Ω sensor
|
|
Construction |
|

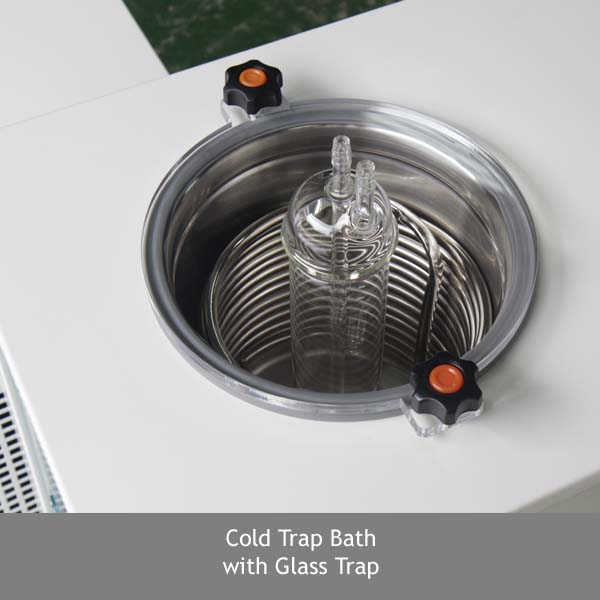

Durable epoxy powder coated metallic casing Corrosion resistant Seamless Stainless Steel 304 bath Transparent acrylic bath lid to hold ∅60 mm glass trap and easy to check condensation level of trap
|
|
Performance |
|
Choice of minimum temperature -35°C or -85°C ULT Ultra-Low-Temperature Technology allows ultimate minimum temperature to -85°C and fast cooling time.
|
|
Convenience |
|
Easy to clean Seamless Stainless Steel 304 Bath Drain for easy emptying of the bath fluid Supplied with removable acrylic bath lid to hold glass trap Dust accumulation in refrigeration system is easily cleaned by means of an removable venting grill
|
|
Safety |
|
SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric leakage breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
|
JSCT-35C |
Cold Trap Bath -35°C |
220 VAC 50/60 Hz |
7.2 L |
28 kg |
35 kg |
|
|
JSCT-55ULT |
Cold Trap Bath -55°C |
220 VAC 50/60 Hz |
7.2 L |
32 kg |
38 kg |
|
|
JSCT-85ULT |
Cold Trap Bath -85°C |
220 VAC 50/60 Hz |
7.2 L |
33 kg |
39 kg |
|
|
|
||||||
|
Optional Accessories |
||||||
|
Art No. |
Descriptions |
|||||
|
W2V10 |
Rotary Vane Vacuum Pump, 100 L/min, 5 x 10-4 Torr, 220 VAC |
|||||
|
OHG-001 |
Glass Trap |
|||||
