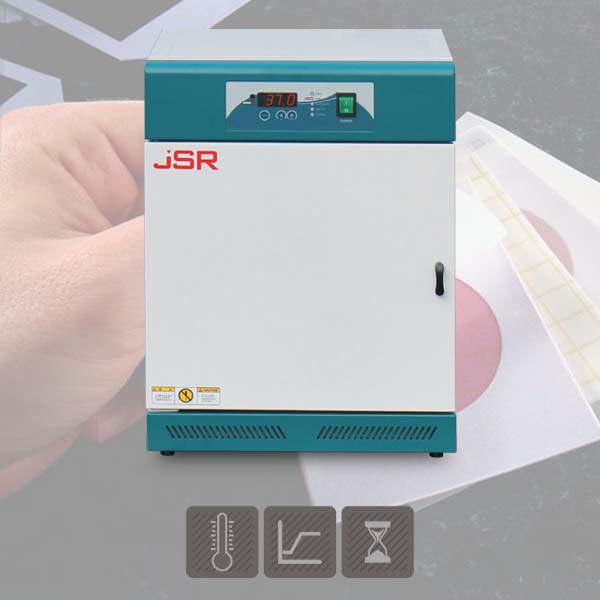

Compact Incubator
10 Liter, 30 Liter small volume incubator, Temperature Range ambient +5 °C to +50 °C
 |
catalog-jsgi-xxt-incubator-eng.pdf |
|
Download Data Sheet |
||
|
Compact Incubator |
10 Liter |
31.5 Liter |
General Specifications
|
Heating |
JSGI-10T : Gravity Convection |
|
|
JSGI-30T : Forced Air Convection |
|
Temp. Range |
ambient + 5 oC ~ 50 oC |
|
Accuracy |
± 1.0 oC at 37.0 oC |
|
Uniformity |
± 2.0 oC at 37.0 oC |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
JSGI-10T without Inner Glass Door |
|
|
JSGI-30T with Tempered Safety Inner Glass Door |
|
|
Shelf -including PVC coated wire shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |

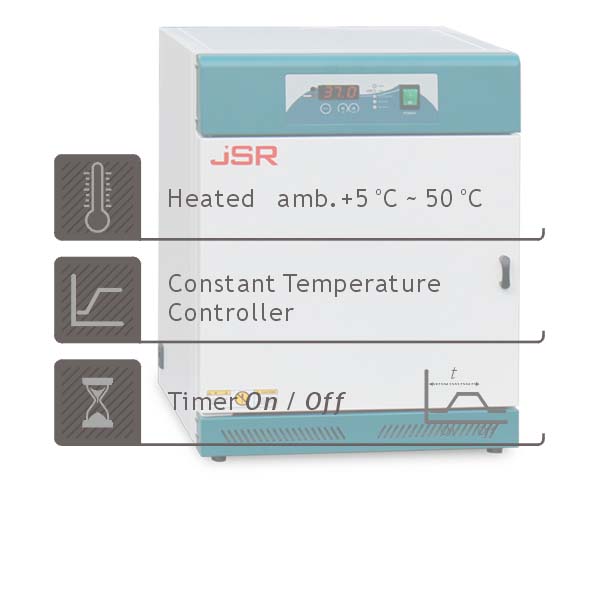

Features
|
Controller |
|
• ±0.1 oC Digital PID Controller with LED Display • Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber • Inner glass door (JSGI-30T)
|
|
Performance |
|
• Mild gravity convection with durable silicone film heater (JSGI-10T) • Forced air convection with separate heating compartment (JSGI-30T) • Simple and durable design permits practical usage of bacteria screening such as HACCP laboratory
|
|
Convenience |
|
• Outer door with self adhesive magnetic packing • 2 tier removable shelf
|
|
Safety |
|
• Controller cut-off heater and ALARM in case +2 oC above set temperature • Controller cut-off heater and ALARM in case +1 oC above maximum temperature limit • Over-Temp. Safety Cut-Off • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Fuse
|
Models
|
DESCRIPTIONS |
||
|
Dimension Data |
|
|
|
Chamber Volume |
9.3 Liters |
31.5 Liters |
|
Inner Dims. (W x D x H mm) |
210 x 210 x 210 |
300 x 300 x 350 |
|
Outer Dims. (W x D x H mm) |
315 x 370 x 435 |
425 x 460 x 590 |
|
No. of Wire Coated Shelf included |
2 ea |
2 ea |
|
No. of Shelf Position |
2 ea x 72mm spacing |
12 ea x 25mm spacing |
|
Inner Glass Door |
No |
Yes |
|
|
|
|
|
Performance Data |
|
|
|
Heating System |
Gravity Convection |
Forced Convection |
|
Temp. Range |
Amb. +5 oC ~ +50 oC |
|
|
Accuracy |
±1.0 oC at 37 oC |
|
|
Uniformity |
±2.0 oC at 37 oC |
|
|
|
|
|
|
Electrical Data |
|
|
|
Rated voltage |
220 ± 10% VAC |
|
|
Power frequency |
50 / 60Hz |
|
|
Heater Output |
60 W |
100 W |
|
Nominal power |
60 W 0.3 amp |
100 W 0.5 amp |
|
Phase |
1 Phase |
|
|
Plug configuration |
CEE 7/7 Schuko |
|
Ordering Information
|
Art No. |
Descriptions |
Capacity |
Elec. Req. |
|
JSGI-10T |
Compact Incubator |
10 L |
220 VAC 50/60 Hz |
|
JSGI-30T |
Compact Incubator |
31.5 L |
220 VAC 50/60 Hz |
Optional Accessories
|
Art No. |
Descriptions |
|
PHS-C01 |
Wire Coated Shelf, W205 x D200 mm for JSGI-10T |
|
PHS-C02 |
Wire Coated Shelf, W295 x D290 mm for JSGI-30T |
|
PHS-A99 |
Shelf Support, Set of 4 for JSGI-30T |
