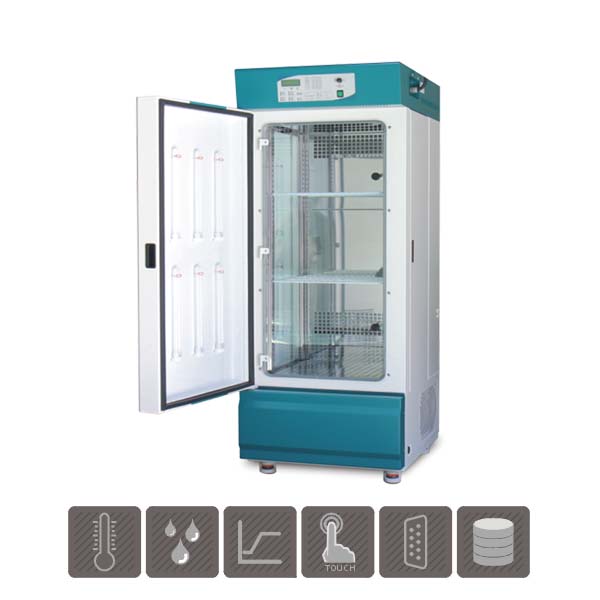

Drug Stability Test Chamber

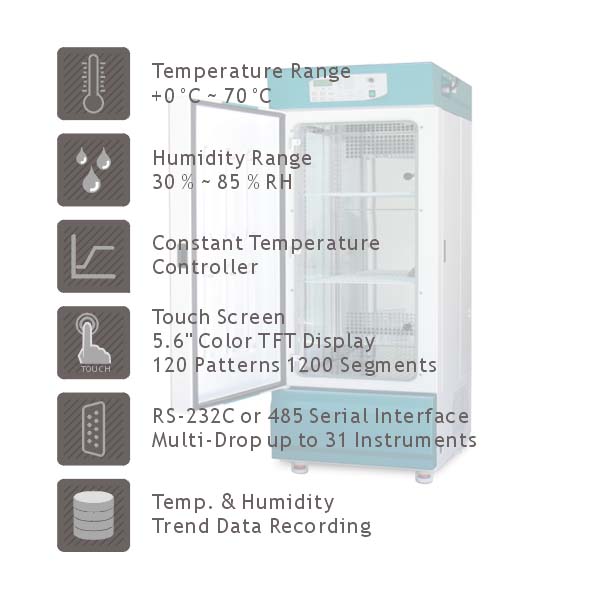

JSDS-Series Temperature and Humidity Drug Stability Chamber designed for Drug Stability Test for pharmaceutical industry meets the requirement of ICH Guideline Q1A (Stability Test)
 |
download_catalog_drug_stability_chamber.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
+ 10°C ~ 70°C |
|
Accuracy |
± 0.3°C at 20.0°C, 60% RH |
|
Uniformity |
± 1.0°C at 20.0°C, 60% RH |
|
Temp. Sensor |
Class A Pt-100 Ω Sensor |
|
Humidity Range |
30 ~ 85% RH |
|
Accuracy |
± 3.0 % RH at 20.0°C, 60% RH |
|
Uniformity |
± 6.0 % RH at 20.0°C, 60% RH |
|
Humidity Sensor |
Electronic Sensor |
|
Illumination |
Fluorescent lamp on/off for observation |
|
Basic Controller |
JSC-4CP Programmable Controller Programmable PID Control 11 Segment 999 Cycle Repeat |
|
Optional Controller 1 |
JSC-2500 TFT-LCD Touch Screen (Art no. OEC-006) 5.7” 640 x 480 pixel TFT-LCD Color Touch Screen 64 MB Internal Memory for program and data storage External SD Memory Card 120 Patterns 1,200 Segments, 999 hour 59 min 59 sec. 9 Zone PID Group Displays real time trend graph monitoring Displays recorded trend graph monitoring Easy-to-use Graphic User Interface Uploading and downloading data, pattern, parameter setting with PC Control and Data Monitoring PC Software RS-232C or RS-485 Multi-Drop Communication |
|
Optinal Controller 2 |
JSC-950 TFT-LCD Touch Screen (Art no. OEC-007) 5.6” 640 x 480 pixel TFT-LCD Color Touch Screen 64 MB Internal Memory for program and data storage 120 Patterns 1,200 Segments, 999 hour 59 min 59 sec. 9 Zone PID Group Uploading and downloading data, pattern, parameter setting with PC Control and Data Monitoring PC Software RS-232C or RS-485 Multi-Drop Communication |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Double Layer Vacuum Glass Observation Window |
|
|
Including PVC Coated Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
30 AMP or 50AMP |
Models
|
Art No. |
||||
|
Chamber Volume (Capacity) |
300 L |
432 L |
864 L |
|
|
Dimensions |
Inner |
500 x 500 x 1200 |
600 x 600 x 1200 |
1200 x 600 x 1200 |
|
W x D x H mm |
Outer |
690 x 835 x 1985 |
790 x 935 x 1985 |
1390 x 935 x 1985 |
|
Temperature |
Range |
+10°C ~ 70°C w/o Humidification |
||
|
|
Accuracy |
± 0.3°C at 20.0°C, 60% RH |
||
|
|
Uniformity |
± 1.0°C at 20.0°C, 60% RH |
||
|
Humidity |
Range |
30 ~ 85% RH |
||
|
|
Accuracy |
± 3.0 % RH at 20.0°C 60% RH |
||
|
|
Uniformity |
± 6.0 % RH at 20.0°C 60% RH |
||
|
Illumination |
Type |
Fluorescent lamp on/off for observation |
||
|
|
Lamp |
3 x 36W FPL |
3 x 36W FPL |
4 x 36W FPL |
|
Controller |
Programmable PID Control 11 segments 999 cycle repeatable |
|||
|
Sensors |
Temp |
Class A Pt-100 Ω Sensor |
||
|
|
Humidity |
Electronic Humidity Sensor |
||
|
Number of shelves/Max. |
3 / 35 |
3 / 35 |
6 / 35 |
|
|
Heater Capacity |
3.1 kW |
3.5 kW |
6.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
|||
|
Electric Requirement |
220VAC 50/60Hz 1P |
|||
|
Power Rating |
19 Amp |
21 Amp |
34 Amp |
|
|
Power Plug |
30 AMP |
30 AMP |
50 AMP |
|
Features

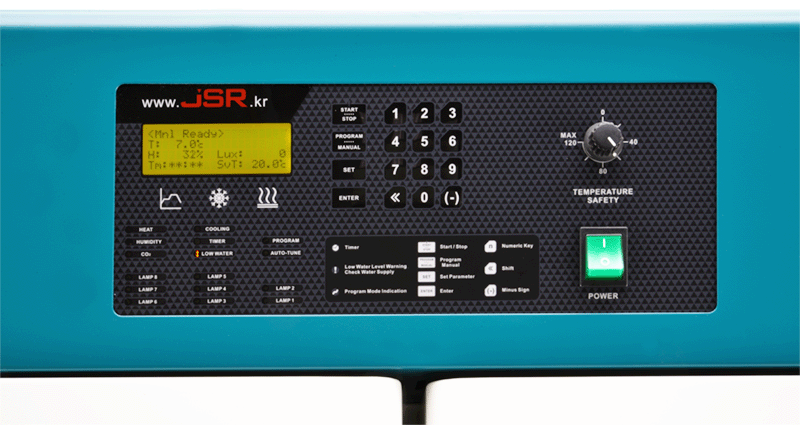

| Basic Controller JSC-4CP Programmable Controller | ||
|
High precision Digital PID Microprocessor controls temperature, humidity and lighting in one integrated unit with easy to use 4-line back-light LCD display interface Constant temperature, humidity and lighting operation with automatic OFF timer Programmable operation capability of various climatic conditions up to 11 Segments 999 cycles or unlimited repeating operation of temperature, humidity and lighting with time duration Calibration and auto-tuning function Class A Pt-100 Ω temperature sensor Precision electronic humidity sensor Automatic defrost cycle |
| JSC-950 Optional Controller | JSC-2500 Optional Controller | |
 |
 |
|
|
5.6" TFT-LCD 640x480 Touch Screen 64MB internal memory for trend data and parameters storage |
 |
5.7" TFT-LCD 640x480 Touch Screen 64MB internal memory for trend data and parameters storage External SD Card memory for easy data transfer |
|
 |
Programming 120 Patterns 1200 Segments up to 999hour 59min 59sec 9 zone PID group |
 |
Programming 120 Patterns 1200 Segments up to 999hour 59min 59sec 9 zone PID group |
|
|
|
Data Transfer Upload and download pattern, parameter, data to PC Data monitoring PC software |
|
Graphic Interface Easy-to-use graphical interface |
|
|
|
Pattern Editing Saved patterns can be recalled as graphical interface Easy upload and download parameters and patterns |
|
Monitoring Realtime trend graph Recorded trend graph Record data into internal memory or SD card |
|
|
|
PC Software Control and monitoring RS-232C or RS-485 Multi-Drop communication interface |
|
Pattern Editing Saved patterns can be recalled as graphical interface Easy upload and download parameters and patterns |
|
 |
Data Transfer Upload and download pattern, parameter, data to PC Data monitoring PC software |
|||
 |
PC Pattern Editing Saved patterns can be recalled as graphical interface Easy upload and download parameters and patterns |
|||
 |
PC Software Control and monitoring RS-232C or RS-485 Multi-Drop communication interface |
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Removable and height adjustable shelf Built-in humidifier and automatic water supply Double layer vacuum tempered safety glass side wall on light bank Tempered Safety inner glass door
|
|
Performance |
|
Forced air circulation of controlled temperature and humidity to achieve excellent thermal uniformity Durable Stainless Steel 304 Sheath Heater and copper-aluminum finned evaporator Temperature control within ± 0.1°C resolution Humidity control within ±1.0% RH resolution Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with air tight gasket for easy observation of sample during experiment. Removable and height adjustable shelf by 25mm spacing Easy to access Light Bank System for convenient maintenance Corrosion resistant Stainless Steel 304 (ASTM 304) chamber Auto-defrost system, user settable interval and time Built-in casters for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM LOW WATER LEVEL ALARM AND CUT-OFF HUMIDIFIER DRY-BURN PROTECTION OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSDS-300C |
Drug Stability Chamber |
220 VAC 50/60 Hz |
300 L |
185 kg |
313 kg |
|
JSDS-420C |
Drug Stability Chamber |
220 VAC 50/60 Hz |
432 L |
220 kg |
368 kg |
|

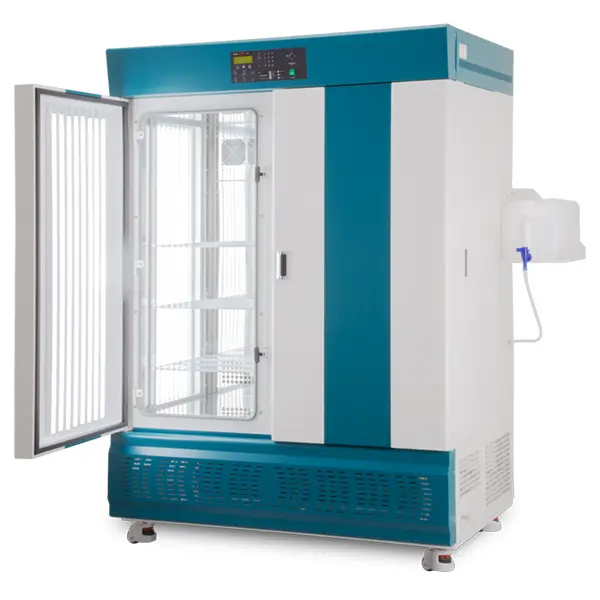

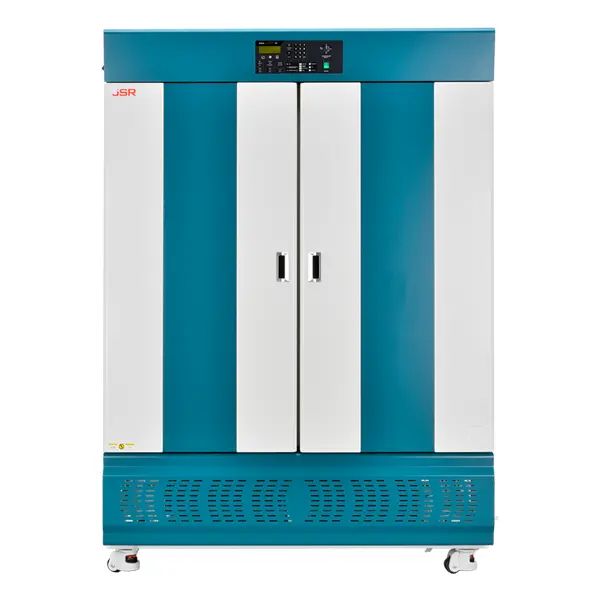

JSDS-960C |
Drug Stability Chamber |
220 VAC 50/60 Hz |
864 L |
380 kg |
550 kg |
Factory Built-in Options
|
Art No. |
Descriptions |
|
OEC-006 |
JSC-2500 Touch Screen Controller |
|
OER-007 |
JSC-950 Touch Screen Controller |
|
OER-010 |
6-Channel Chart Recorder |
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C05 |
for JSDS-300C W470 x D480 mm |
|
PHS-C13 |
for JSDS-420C W570 x D580 mm |
|
PHS-C15 |
for JSDS-960C W570 x D545 mm |
