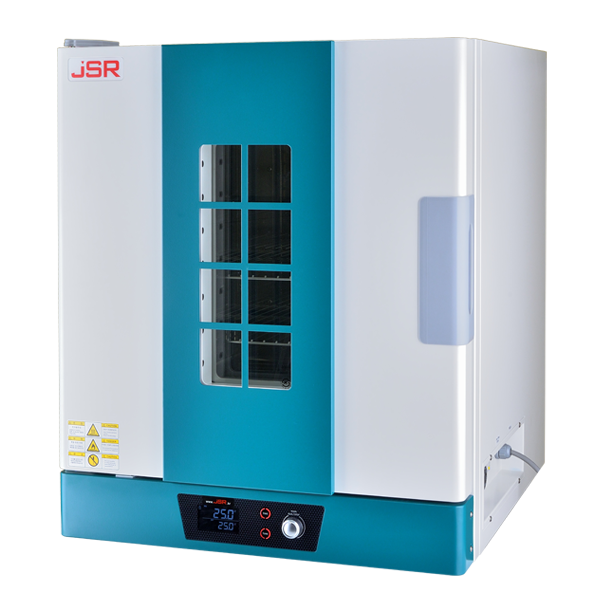

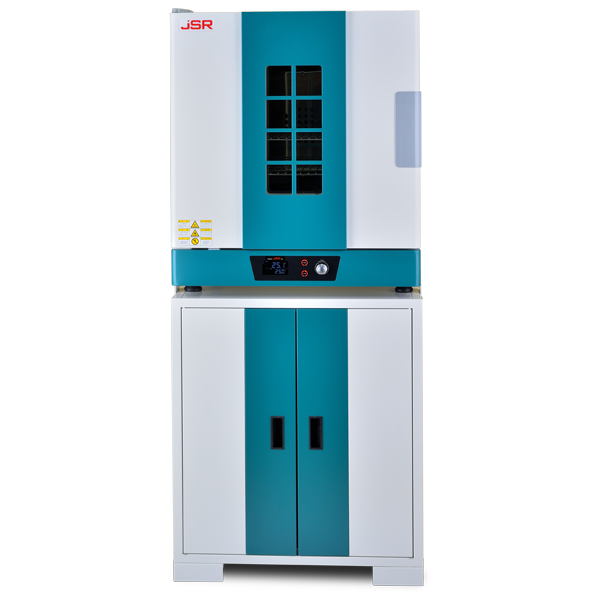

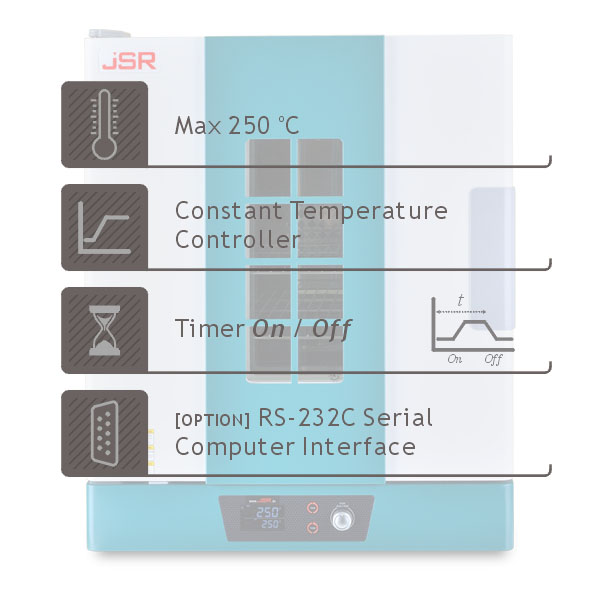

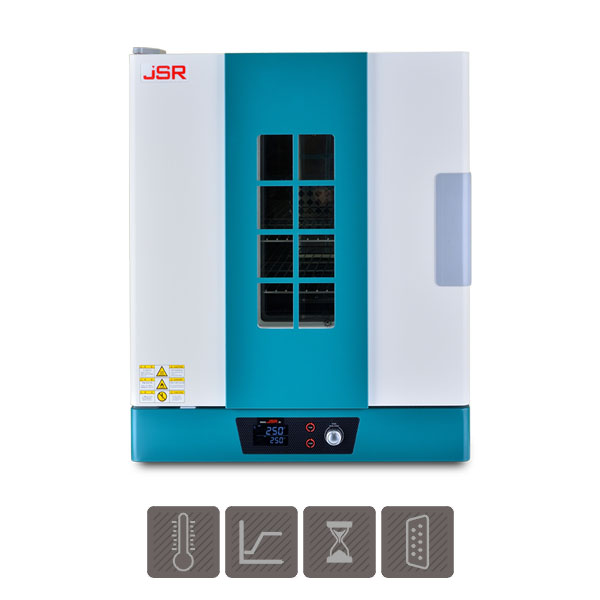

Programmable Forced Convection Oven
Oven, Forced Convection, Programmable Controller, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 50, 100, 150, 250 liters
 |
 |
General Specifications
|
Heating |
Forced Air Convection |
|
Temp. Range |
ambient + 10 °C ~ 250 °C |
|
Accuracy |
± 0.2 °C at 120 °C (JSOF-050) |
|
Uniformity |
± 1.0 °C at 120 °C (JSOF-050) |
|
Controller |
JIC-CON 5th GEN Programmable PID Controller |
|
Program |
1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat |
|
|
3 Group Zone PID Temperature Control Algorithm |
|
Calibration |
3 Point Temperature Calibration |
|
|
1 Point Temperature Offset Calibration |
|
Sensor |
Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|

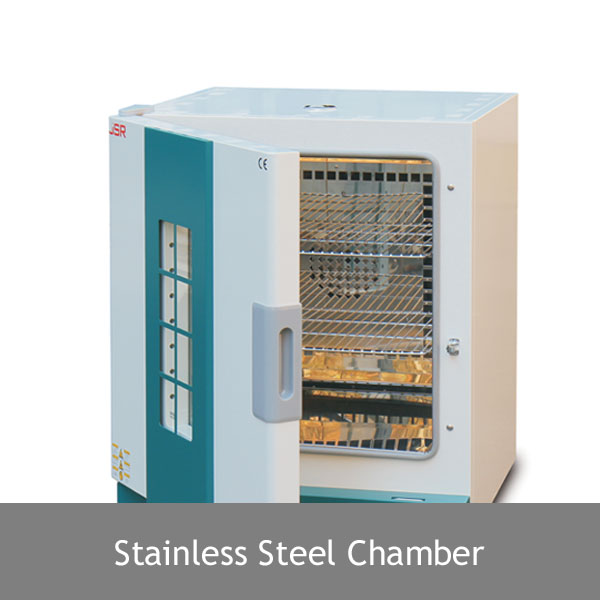

Chamber - Stainless Steel 304 |
|
|
Insulation - 50mm thick woven mineral wool |
|
|
including Stainless Steel Wire Shelf |
|
|
optional Perforated Stainless Steel Shelf |
|
Electric |
220 ± 10% VAC 50 / 60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
 |
|
|

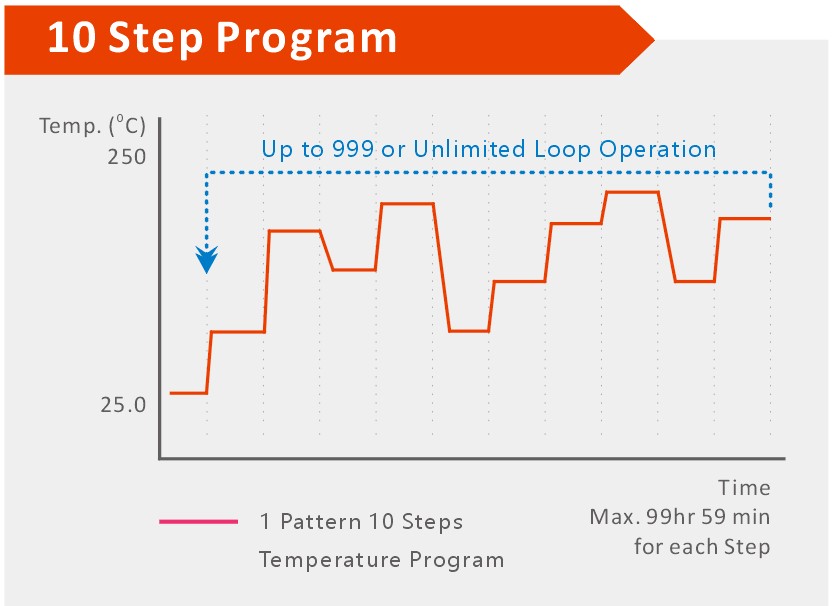

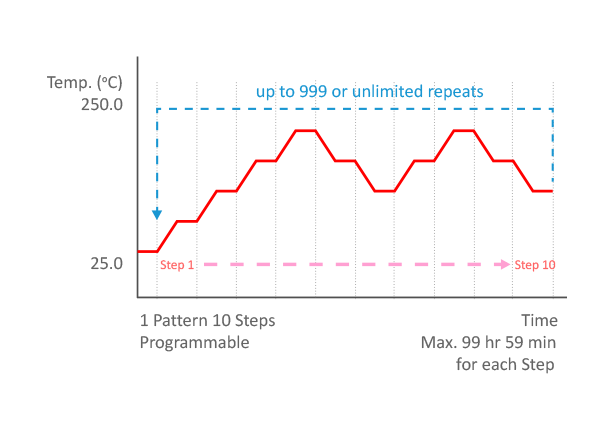

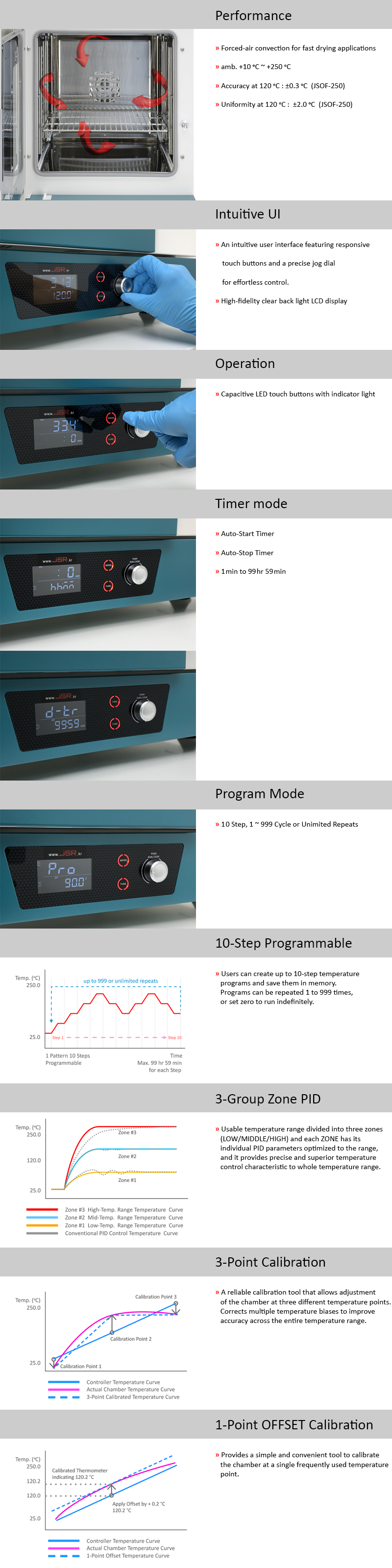

10 STEP PROGRAMMABLE User can compose 10 steps of varying temperature program and can save it in a memory. Composed program can be repeated 1 ~ 999 times (or unlimited number of times) |
|
|

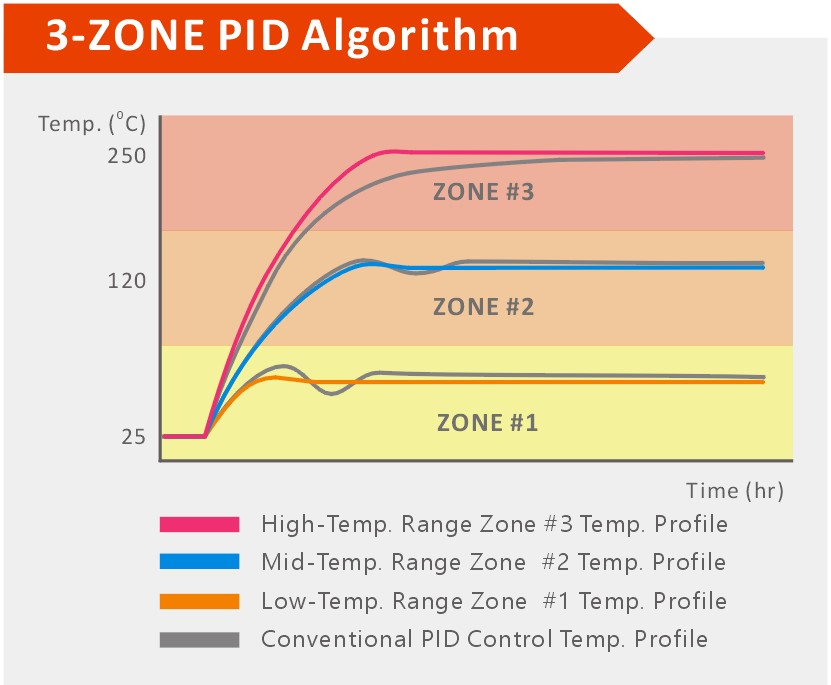

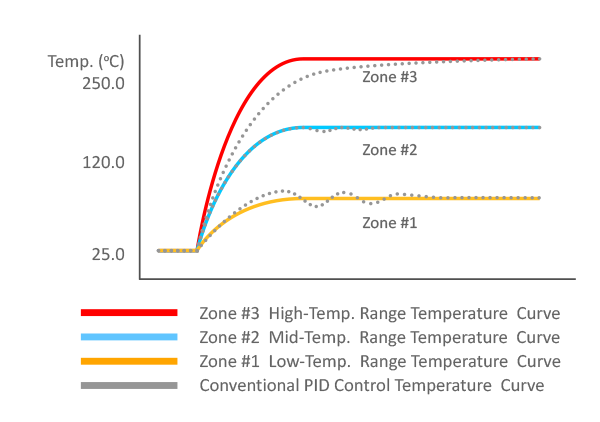

3 GROUP ZONE PID ALGORITHM Usable temperature range divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID parameters optimized to the range, and it provides precise and superior temperature control characteristic to whole temperature range. |
|
|

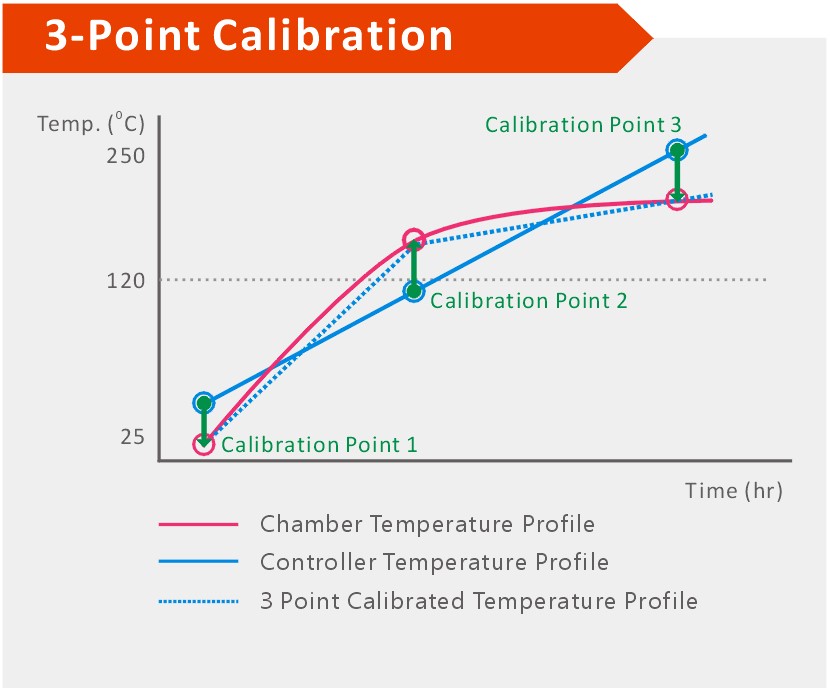

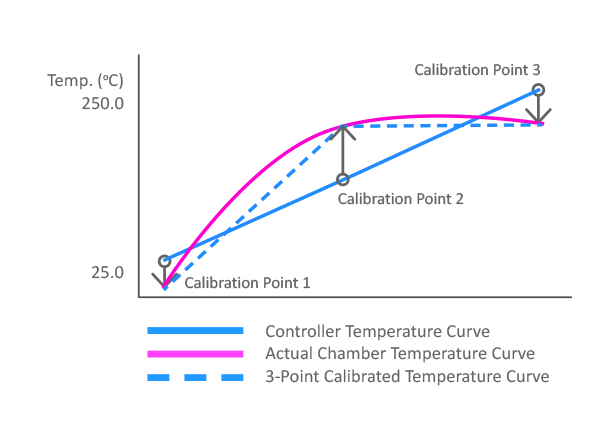

3 POINT CALIBRATION FUNCTION A perfect calibration tool to calibrate chamber at THREE DIFFERENT TEMPERATURE POINTS to adjust multiple temperature bias to increase the temperature accuracy of WHOLE TEMPERATURE RANGE. |
|
|

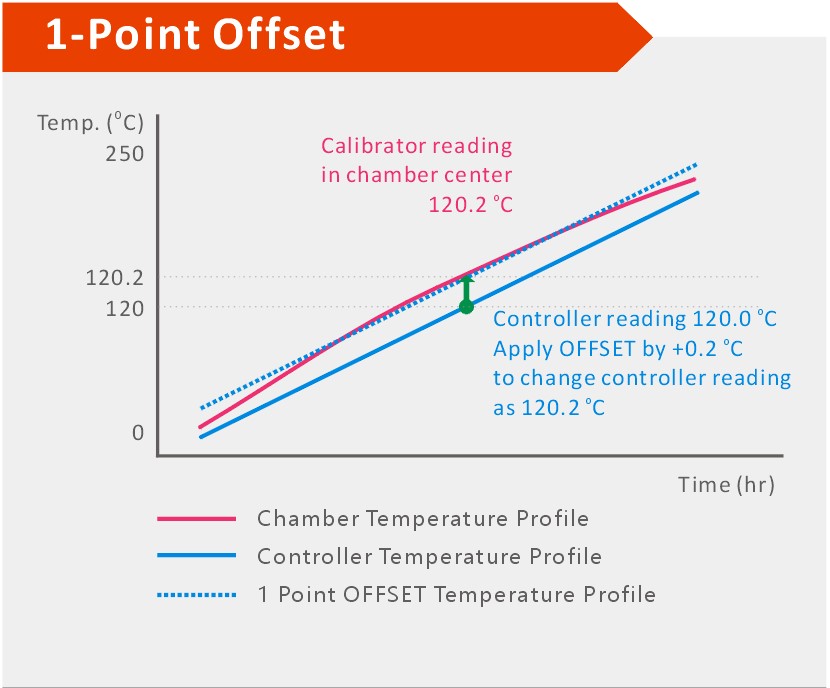

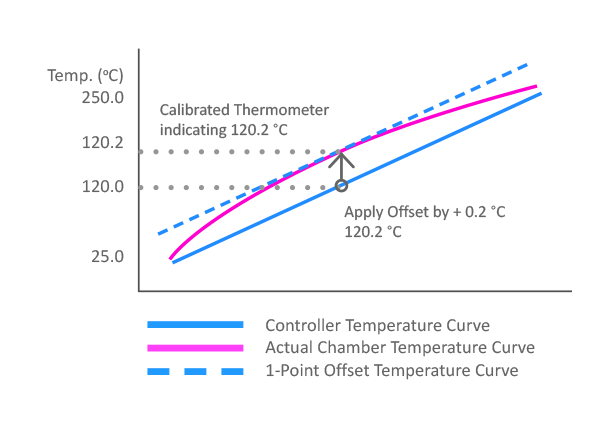

1 POINT OFFSET FUNCTION Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERATURE POINT in frequent use. |
|
Performance |
|

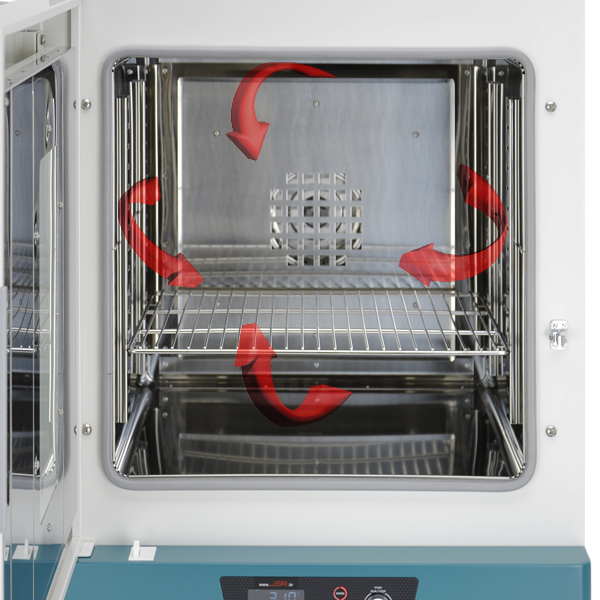

• Temperature Range from ambient +10 oC to 250 oC • Forced air convection for fast drying application • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust |
|
Controller |
|

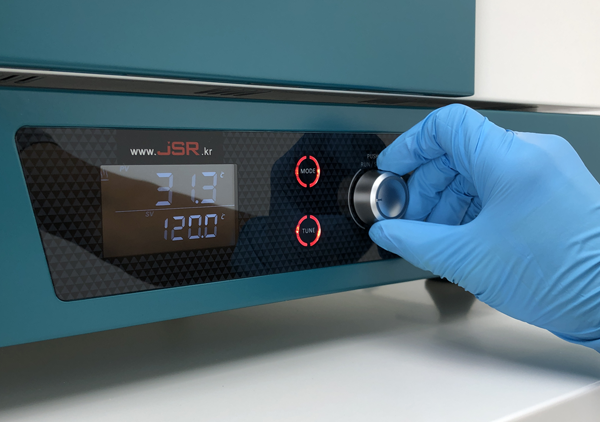

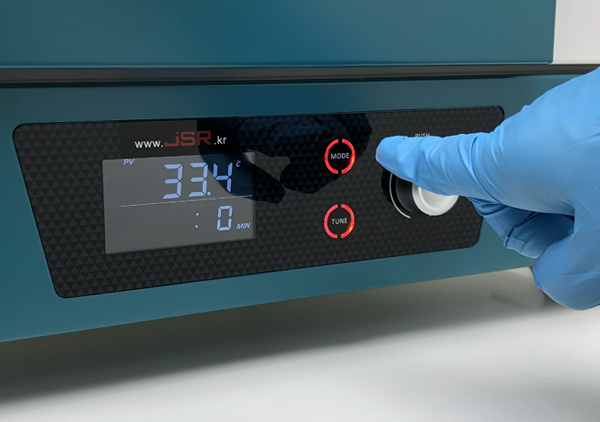

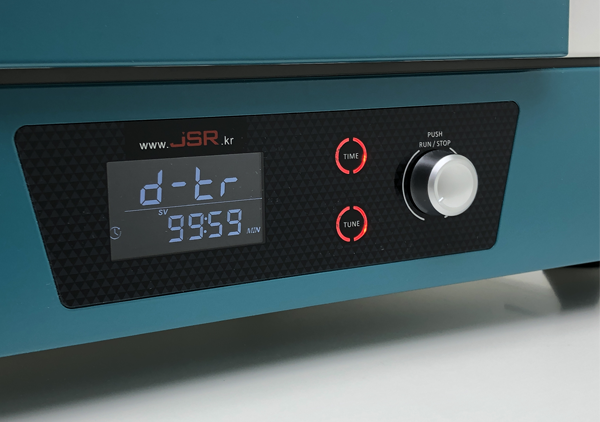

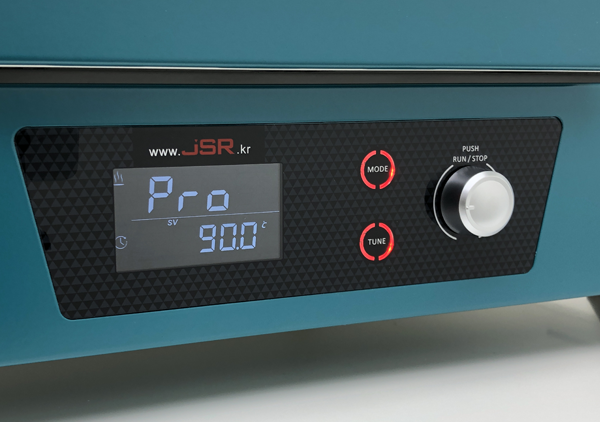

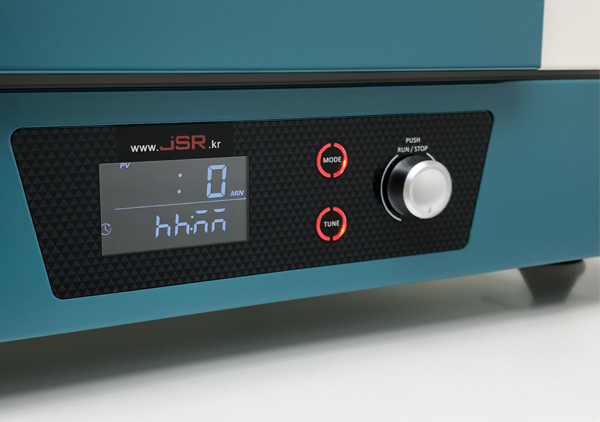

• Programmable Digital Microprocessor PID Temperature Controller • Back Light Graphic LCD Display • Capacitive LED Touch Button with light • Encoder Jog Dial provides easy and simple user interface • 0.1 oC Resolution • 1 Pattern 10 Step Programmable • 1 ~ 999 (or unlimited) times repeat • Auto-Stop Timer 1 min ~ 99 hour 59 min • Auto-Start Timer 1 min ~ 99 hour 59 min • Temperature and Timer Memory Function • 3 Group Zone PID • 3 Point Temperature Calibration • 1 Point Temperature Offset Calibration • Selectable Operation Mode (On or Off) when power loss and restore • PT-100 Ω Sensor |
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with round cornered edge allows easy cleaning • Double layered glass window for easy observation of samples • Adjustable ventilation damper on the top
|
|
Convenience |
|

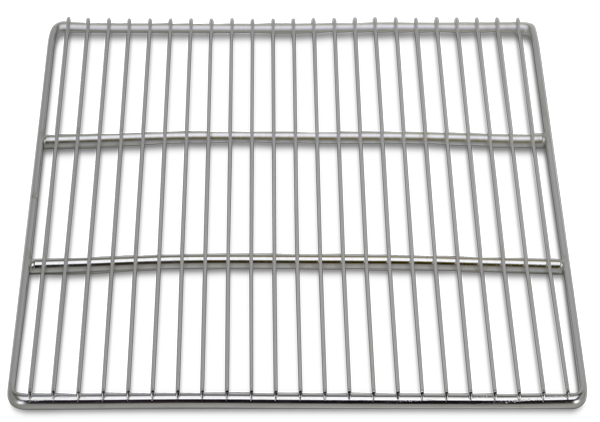

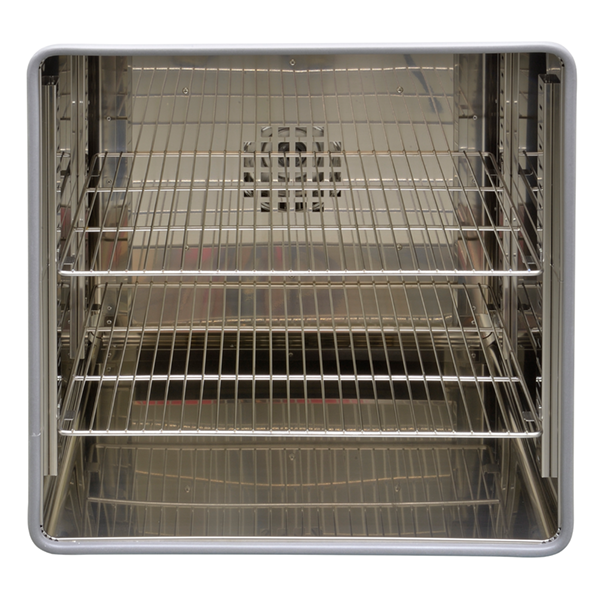

• Double layered tempered safety glass window for easy observation of samples • Removable and height adjustable shelf by 25mm spacing • Easy-to-open and air-tight one touch door latch • Door switch cut-off heater and blower to protect user from exposure to hot air |
|
Safety |
|
• Sensor Short or Disconnecton Audio Visual Alarm • Over-temperature Cut-Off Safety ALARM HIGH : Cut-Off Heater +10 oC above set temp. Audio Visual Alarm ALARM LOW : Cut-Off Heater -10 oC below set temp. Audio Visual Alarm Independent analog thermostat cut-off heater above set temperature • Door Open Audio Visual Alarm • Over Current Cut-Off : Electric Circuit Breaker |

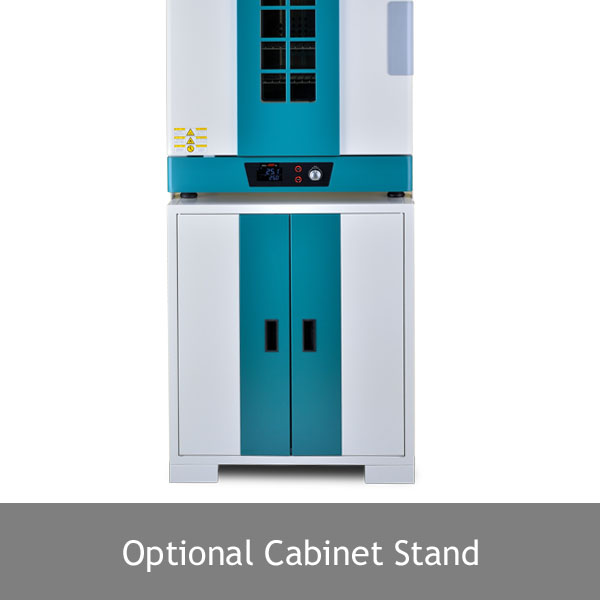

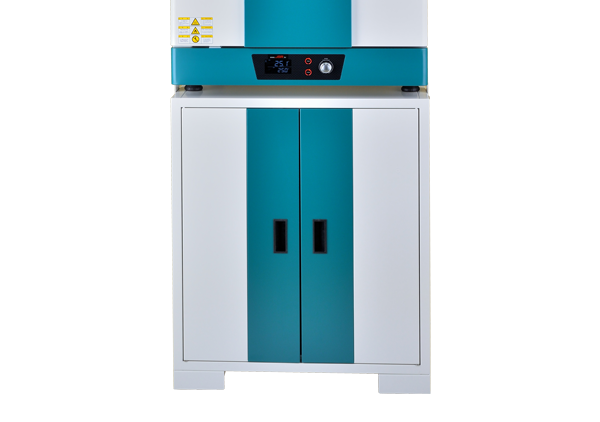

| Controller | Cabinet Stand [OPTION] | Door window | ||
 |
 |
 |
||
| Chamber | Adjustable Shelf | Safety | ||
 |
 |
 |
Models
|
Art. No. |
JSOF-050 |
JSOF-100 |
JSOF-150 |
JSOF-250 |
|
Dimension Data |
|
|
|
|
|
Chamber Volume |
48 Liters |
100 Liters |
151 Liters |
252 Liters |
|
Inner Dims. (W x D x H mm) |
400 x 300 x 400 |
500 x 400 x 500 |
560 x 450 x 600 |
600 x 600 x 700 |
|
Outer Dims. (W x D x H mm) |
560 x 605 x 710 |
660 x 705 x 810 |
720 x 755 x 910 |
760 x 905 x 1010 |
|
Window Dims. (W x H mm) |
150 x 290 |
150 x 360 |
150 x 410 |
150 x 460 |
|
No. of Shelf Positions |
12 ea |
16 ea |
20 ea |
24 ea |
|
No. of Shelf included |
2 ea |
2 ea |
2 ea |
3 ea |
|
No. of Ventilation Damper |
1 ea |
1 ea |
1 ea |
1 ea |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
|
Heating System |
Forced Air Convection |
|||
|
Temp. Range |
Amb. +10 oC ~ +250 oC |
|||
|
Accuracy at 120 oC |
±0.2 oC |
±0.3 oC |
±0.3 oC |
±0.3 oC |
|
Uniformity at 120 oC |
±1.0 oC |
±1.3 oC |
±1.5 oC |
±1.8 oC |
|
Heat up time to 120 oC |
10 min. |
12 min. |
13 min. |
13 min. |
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
|
Rated voltage |
220 ± 10% VAC |
|||
|
Power frequency |
50 / 60Hz |
|||
|
Heater Output |
1.0 kW |
1.5 kW |
1.7 kW |
2.5 kW |
|
Nominal power |
1.1 kW 4.7 amp |
1.6 kW 7.0 amp |
1.8 kW 7.9 amp |
2.6 kW 11.5 amp |
|
Phase |
1 Phase |
|||
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|||
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSOF-050 |
Forced Convection Oven, 48 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSOF-100 |
Forced Convection Oven, 100 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSOF-150 |
Forced Convection Oven, 151 L including standard accessories 2 ea x Wire Shelf, Stainless Steel 304 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSOF-250 |
Forced Convection Oven, 252 L including standard accessories 3 ea x Wire Shelf, Stainless Steel 304 12 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art No. |

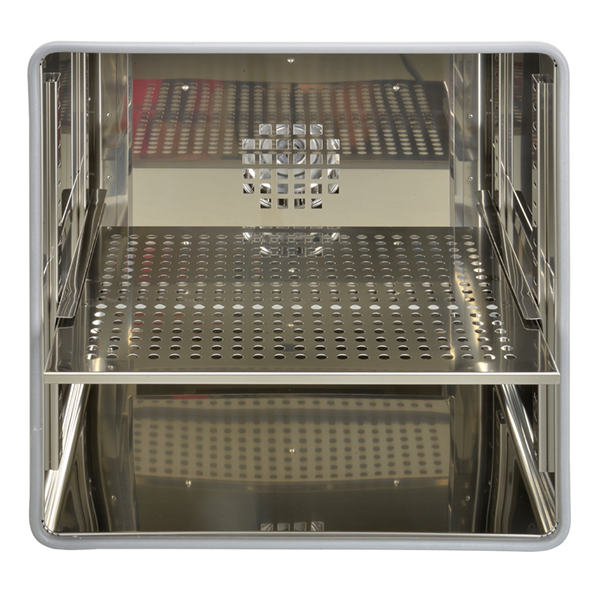

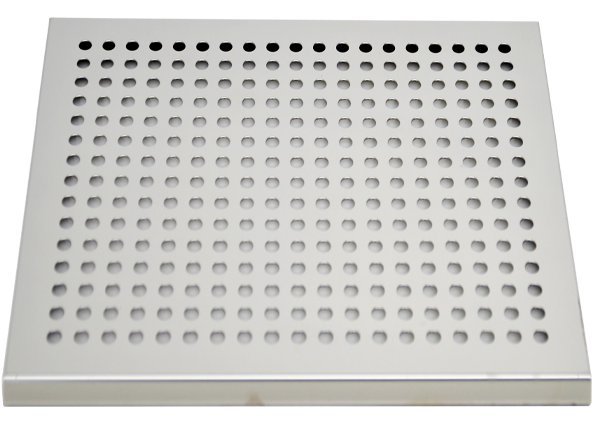

Perforated Shelf, Stainless Steel 304 |
|
PHS-A03 |
for JSOF-050 W370 x D280 mm |
|
PHS-A05 |
for JSOF-100 W470 x D380 mm |
|
PHS-A07 |
for JSOF-150 W530 x D430 mm |
|
PHS-A09 |
for JSOF-250 W570 x D580 mm |
|
|
|
|
Art No. |
Wire Shelf, Stainless Steel 304 |
|
PHS-B03 |
for JSOF-050 W370 x D280 mm |
|
PHS-B05 |
for JSOF-100 W470 x D380 mm |
|
PHS-B07 |
for JSOF-150 W530 x D430 mm |
|
PHS-B09 |
for JSOF-250 W570 x D580 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
|
|
|
|
Art No. |
Cabinet Stand with Caster |
|
PHC-050 |
for JSOF-050 |
|
PHC-100 |
for JSOF-100 |
|
PHC-150 |
for JSOF-150 |
|
PHC-250 |
for JSOF-250 |
