HEPA Filter Clean Air Oven
Oven, Forced Convection, HEPA Filter H14 (ISO Class 5) Clean Air, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 168, 336, 1200 liters
 |
catalog-jsco-oven-eng.pdf |
|
Download Data Sheet |

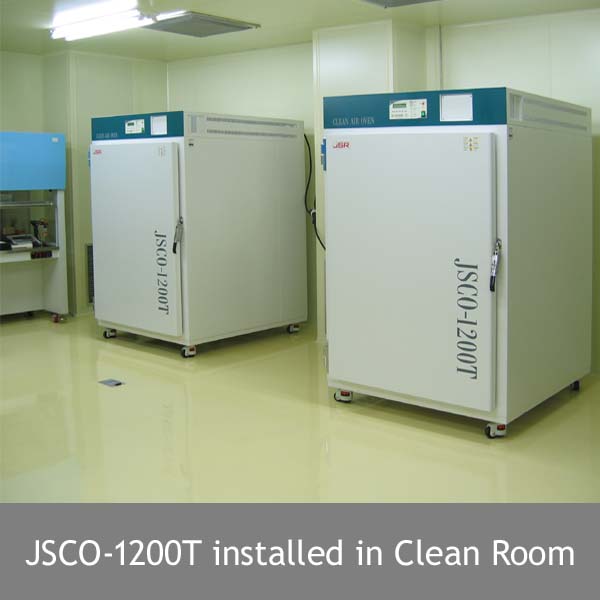

JSCO-300T | JSCO-1200T |
|
|
|
Clean Air Oven |
168 Liter |
336 Liter | 1200 Liter |
General Specifications
|
Heating |
Forced Air Convection |
|
|
Horizontal laminar air flow |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 0.3°C at 120°C (JSCO-150T) |
|
Uniformity |
± 5.0°C at 120°C (JSCO-150T) |
|
Air Filtration |
High Temp. H14 (ISO Class 5) HEPA Filter |
|
Filtration Efficiency |
99.995% > 0.3um particles |
|
Control |
Programmable Microprocessor PID Control |
|
|
1 Pattern 10 Segments 999 cycle repeat |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Floor Standing with Casters |
|
|
Shelf -including perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase or 380±10% VAC 50/60Hz 3-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |

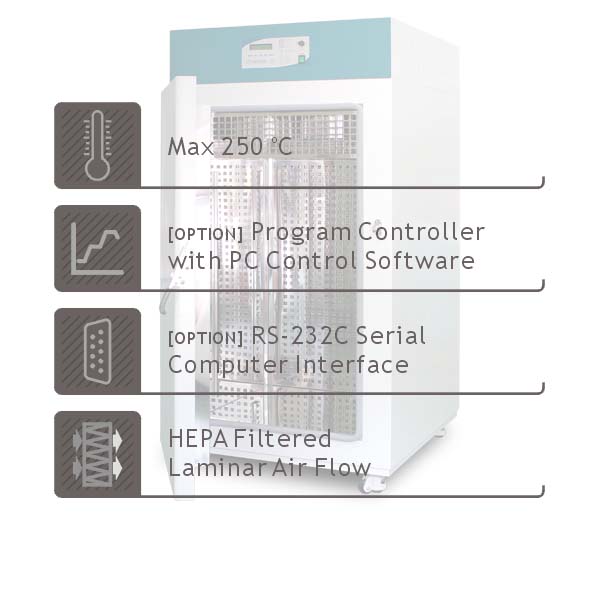

Features
| Construction | Hi-Temp. HEPA Filter | Laminar Air Flow | ||
 |
 |
 |
||
| PC Communication | Safety | |||
 |
 |
|
Controller |
|

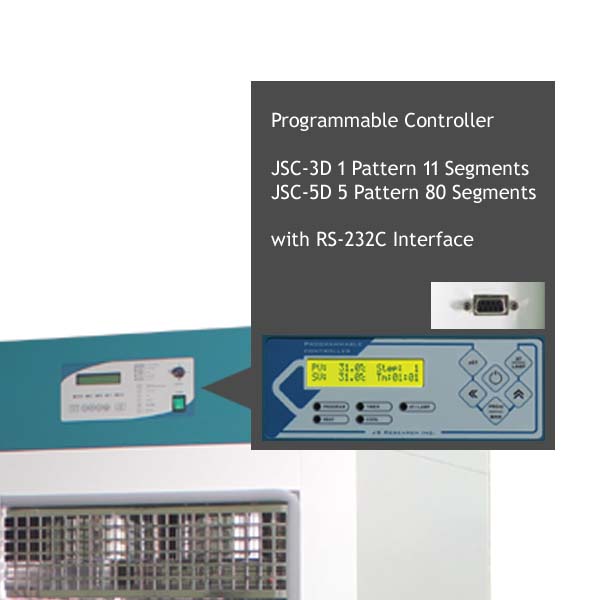

JSC-3D Programmable Controller 1 Patterns 10 Segments • 16-bit Microprocessor ±0.1°C Digital PID Controller • 2-Line Back-Light LCD Display • Constant Temperature Mode / Program Mode • 1 Pattern 10 Segments 999 times or unlimited repeat. • Segment skip • Automatic STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min or continuous • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor • RS-232C Interface with PC Software
|
|
Performance |
|

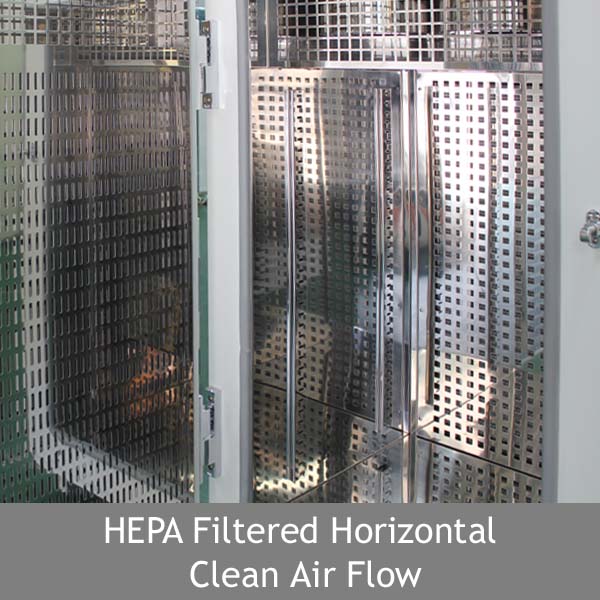

• Forced air convection through HI-TEMP. H14 (ISO Class 5) HEPA Filter removes particles up to 99.995% • HEPA filtered clean horizontal laminar air flow created across the chamber between HEPA Filter installed on the back wall and drawn into the inlet grilles on front door plenum keep circulated by powerful sirocco blower prevent cross-contamination and excellent thermal uniformity
|
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber • Stainless Steel 316 (ASTM 316) Chamber [OPTION] • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|
• Floor standing for easy transport and large volume allow more throughput and productivity of sample treatment • Stainless Steel 316 (ASTM 316) Chamber [OPTION] • Removable and height adjustable shelf by 25mm spacing • Outer door with silicone gasket and compression door lock • Easy-to-Replace HEPA Filter
|
|
Safety |
|
• DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit • DOOR SENSOR : Door switch cut-off heater and blower when door opened • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Models
|
DESCRIPTIONS |
|||
|
Dimension Data |
|
|
|
|
Chamber Volume |
168 Liters |
336 Liters |
1200 Liters |
|
Inner Dims. (W x D x H mm) |
600 x 560 x 500 |
600 x 560 x 1000 |
1000 x 1000 x 1200 |
|
Outer Dims. (W x D x H mm) |
845 x 1100 x 1240 |
845 x 1100 x 1740 |
1250 x 1530 x 1940 |
|
Shelf Spacing |
25mm |
25mm |
25mm |
|
No. of Shelf Position |
14 |
36 |
44 |
|
No. of Perforated Shelf included |
2 |
3 |
4 |
|
|
|
|
|
|
Performance Data |
|
|
|
|
Heating System |
Forced Air Convection |
||
|
|
Horizontal Laminar Air Flow |
||
|
Temp. Range |
Amb. +10 oC ~ +250 oC, 0.1 oC resolution |
||
|
Accuracy at 120 oC |
±0.3 oC |
||
|
Uniformity at 120 oC |
±5.0 oC |
||
|
|
|
|
|
|
HEPA Filter |
H14 (ISO Class 5) HI-TEMP HEAP Filter |
||
|
|
Efficiency 99.995% > 0.3um particles |
||
|
|
|
|
|
|
Controller |
|
|
|
|
Processor |
Digital Microprocessor Programmable PID Temperature Controller |
||
|
Display |
2-Line back light LCD Display |
||
|
Temp. Calibration |
Built-in Temperature Calibration |
||
|
|
Auto-tuning |
||
|
Temp. Resolution |
0.1 oC |
||
|
Timer Scale |
99 min 59 sec / 99 hr 59 min |
||
|
Programming |
Constant Temperature Mode / Program Mode |
||
|
|
1 Pattern 10 Segments 999 times or unlimited repeat. |
||
|
|
Segment skip |
||
|
Sensor |
CLASS A PT-100 Ω Sensor |
||
|
PC Communication Interface |
RS-232C PC COMMUNICATION INTERFACE [OPTION] |
||
|
|
RS-485 Multi-Drop COMMUNICATION INTERFACE [OPTION] |
||
|
|
|
||
|
Safety Data |
|
|
|
|
Safety Device |
DUAL OVER TEMP. CUT-OFF |
||
|
|
Digital system cut-off heater and AUDIO VISUAL ALARM |
||
|
|
Analog system cut-off heater 10% above set temp. |
||
|
|
MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM |
||
|
|
CUT-OFF heater and blower when door opened |
||
|
|
SENSOR DISCONNECTION ALARM |
||
|
|
Over Current CUT-OFF |
||
|
|
|
||
|
Material Data |
|
|
|
|
Body |
Epoxy Powder Coated SPCC Steel |
||
|
Chamber |
Stainless Steel 304 (AISI304) and Galvanized Steel (EGI) |
||
|
Door |
High Temperature Foamed Silicone Packing |
||
|
Insulation |
50 mm Woven Mineral Wool |
||
|
Perforated Shelf |
Stainless Steel 304 |
||
|
|
|
|
|
|
Electrical Data |
|
|
|
|
Rated voltage |
220 ± 10% VAC |
220 ± 10% VAC |
220 (380) ± 10% VAC |
|
Power frequency |
50 / 60Hz |
50 / 60Hz |
50 / 60Hz |
|
Heater Output |
2 x 1.0 kW |
2 x 2.0 kW |
3 x 2.5 kW |
|
Nominal power |
2.2 kW 10.0 amp |
4.5 kW 20.5 amp |
8.0 kW 36 (12) amp |
|
Phase |
1 Phase |
1 Phase |
1 Phase (3 Phase) |
|
Plug configuration |
CEE 7/7 Schuko |
30 AMP Plug |
50 AMP Plug |
Ordering Information
|
Art No. |
Descriptions |
Capacity |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSCO-150T |
Clean Air Oven |
168 L |
220 VAC 50/60Hz 1P |
190 kg |
280 kg |
|
JSCO-300T |
Clean Air Oven |
336 L |
220 VAC 50/60Hz 1P |
230 kg |
320 kg |
|
JSCO-1200T |
Clean Air Oven |
1200 L |
380 VAC 50/60Hz 3P |
410 kg |
540 kg |
Optional Accessories
|
Art. No. |
Descriptions |
|
OEC-501 |
RS-232C Serial Interface, PC Software |
|
OEC-502 |
RS-485 Serial Interface, PC Software |
|
OHC-002 |
Differential Pressure Gauge for monitoring HEPA Filter Pressure Drop |
|
OHM-001 |
SS3116(ASTM316) Chamber for JSCO-150T |
|
OHM-002 |
SS3116(ASTM316) Chamber for JSCO-300T |
|
OHM-003 |
SS3116(ASTM316) Chamber for JSCO-1200T |
|
PHS-A08 |
SUS Perforated Shelf, W570 x D540 mm for JSCO-150T / 300T |
|
PHS-A17 |
SUS Perforated Shelf, W970 x D980 mm for JSCO-1200T |
|
PHS-A99 |
Shelf Support. Set of 4 ea |
