Microcentrifuge
JSCF-M8 Micro Centrifuge is designed for quick and pulse spin down up to 6,200 rpm / RCF 1,800 x g and offers your convenience of tool-free interchangeable rotors and adaptors for 0.2 ml and 0.5 ml tubes.
 |
jscf-m8-eng.pdf |
Features
|
Performance Speed and Capacity |
|
Max. 6,200 rpm / RCF 1,800 x g Fixed Angle Rotor for 1.5 ml or 2.0 ml x 8 holes PCR Strip Rotor for 0.2 ml x 32 tubes, 4 PCR Strips
|
|
Construction |
|
Silent DC motor Clear polycarbonate dome lid ABS plastic body with low gravitational centered design Rubber bottom base
|
|
Convenience |
|
Tool free one-touch rotor replacement Accommodates various tubes 0.2ml, 0.5ml, 1.5ml and 2.0 ml Spring hinged lifting lid
|
|
Safety |
|
Two way safety door switch |
Specifications
|
Speed |
: Max. 6,200 rpm |
|
Max. RCF |
: 1,800 x g |
|
Capacity |
: 8 x 0.2 / 0.5 / 1.5 / 2.0 ml tubes, 4 x 0.2 ml PCR Strips |
|
Rotor Configuration |
|
|
Angle Rotor |
: 8 Holes Fixed-Angle Rotor for 0.5 / 1.5 / 2.0 ml micro-tubes |
|
PCR Strip Rotor |
: 32 Holes PCR Strip Rotor for 0.2 ml PCR Strip or Tubes |
|
Tube Adaptors |
: including eight (8) x 0.2 ml and 0.5 ml tube adaptors |
|
Safety |
: Two-Way Door Limit Switch |
|
Material |
: Body – ABS Plastic |
|
|
: Rotor - ABS Plastic |
|
Electric |
: 230±10% VAC 50/60 Hz 1-Phase |
|
Plug config. |
: CEE 7/7 Schuko or BS 1363 |
|
|
|
Models
|
Art. No. |
|
|
Performance Data |
|
|
Speed |
Max. 6,200 rpm |
|
Max. RCF |
1,800 x g |
|
Capacity |
8 x 0.2 / 0.5 / 1.5 / 2.0 ml tubes, 4 x 0.2 ml PCR Strips |
|
Speed Control |
Automatic / Constant speed |
|
|
|
|
Rotor Configuration |
|
|
Angle Rotor |
8 Holes Fixed-Angle Rotor for 0.5 / 1.5 / 2.0 ml micro-tubes |
|
PCR Strip Rotor |
32 Holes PCR Strip Rotor for 0.2 ml PCR Strip or Tubes |
|
Tube Adaptors |
Including eight (8) x 0.2 ml and 0.5 ml tube adaptors |
|
|
|
|
Motor |
|
|
Type |
DC Motor |
|
Power |
8 Watt |
|
Rotating Direction |
Clockwise |
|
|
|
|
Safety Data |
|
|
Safety Device |
Two-Way Door Limit Switch |
|
|
|
|
Material Data |
|
|
Lid |
Polycarbonate |
|
Body |
ABS |
|
Rotor |
ABS |
|
|
|
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50/60Hz |
|
Nominal power |
8 Watt |
|
Phase (Nominal voltage) |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H) |
250 x 200 x 220 mm |
|
Type of packaging |
Carton |
|
Net Weight |
1.4 kg |
|
Shipping Weight |
1.7 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSCF-M8 |
Micro Centrifuge, 6,200 rpm |
230 VAC 1 ph 50/60 Hz |
|
|
including |
|
|
|

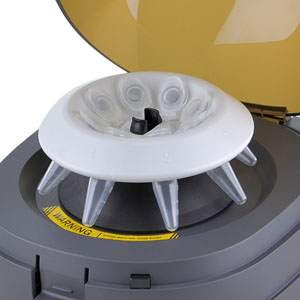

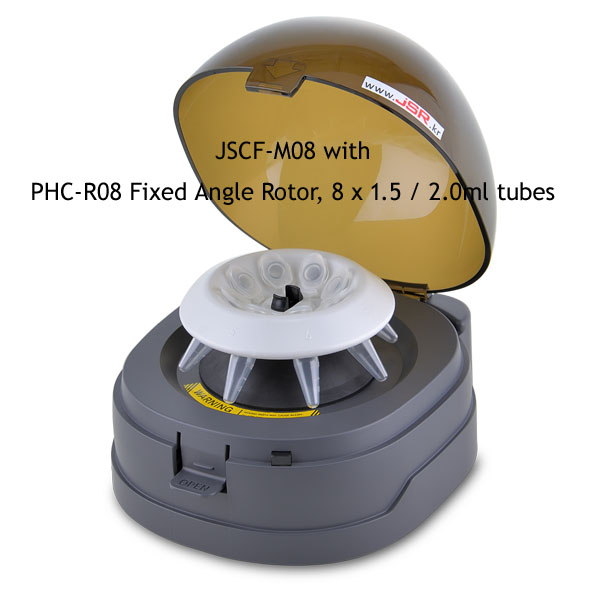

PHC-R08 Fixed Angle Rotor, 8 x 1.5 / 2.0ml tubes |
|
|
|

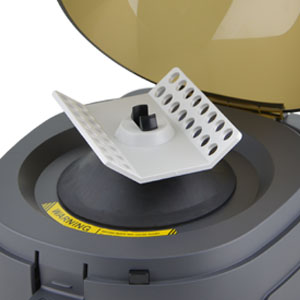

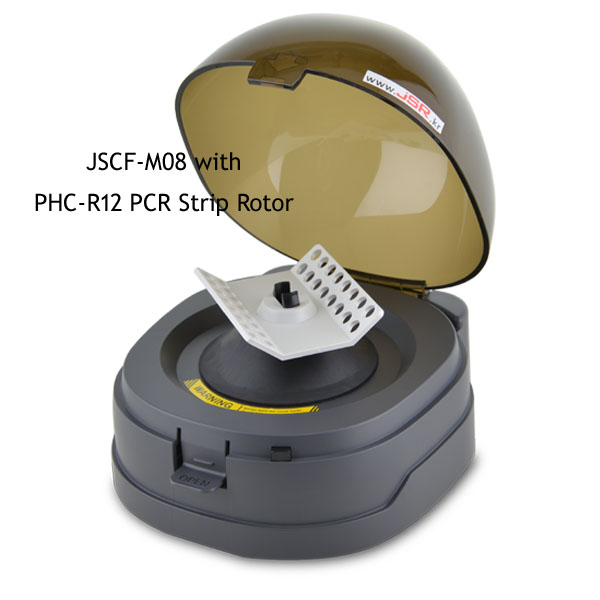

PHC-R32 PCR Strip Rotor, 32 x 0.2ml tubes or 4 Lines x PCR Strips |
|
|
|

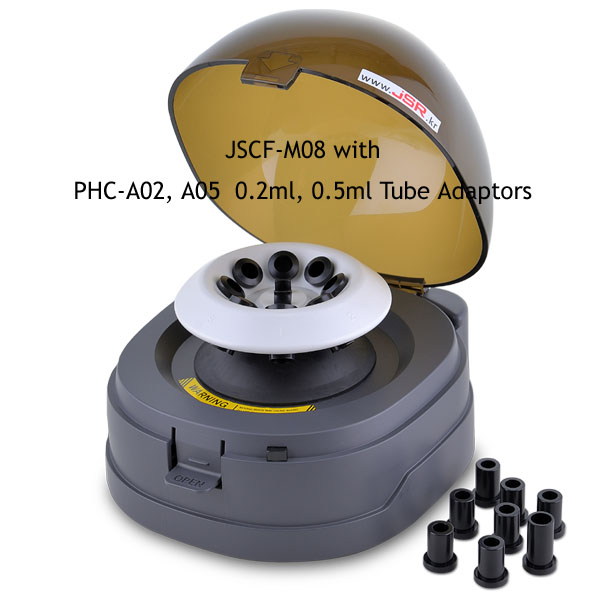

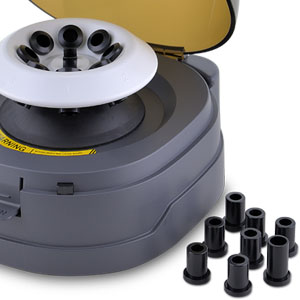

PHC-A02 Tube Adapter, 8 x 0.2ml |
|
|
|
PHC-A05 Tube Adapter, 8 x 0.5ml |
|
Optional Accessories
|
|
|
Art No. |
Descriptions |
|
|
|
PHC-R08 |
Fixed Angle Rotor, 8 x 1.5 / 2.0ml tubes |
|
|
|
PHC-R32 |
PCR Strip Rotor, 32 x 0.2ml tubes or 4 Lines x PCR Strips |
|
|
|
PHC-A02 |
Tube Adapter, 8 x 0.2ml |
|
|
|
PHC-A05 |
Tube Adapter, 8 x 0.5ml |
