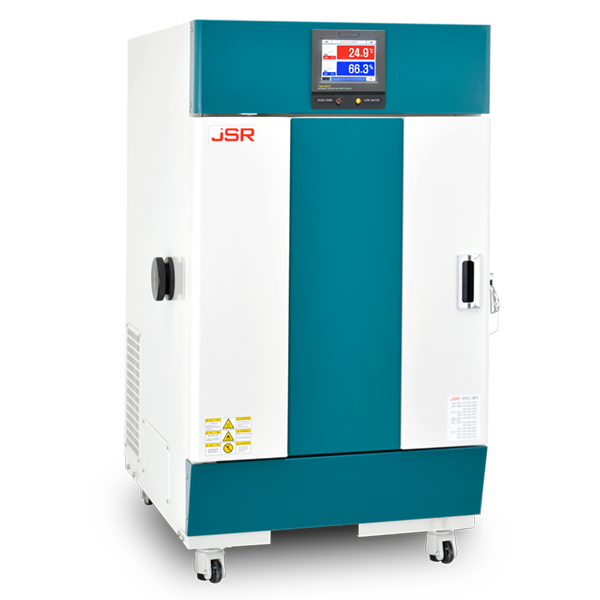

Table Top Climatic Chamber +10°C ~ +80°C
JSCH-Series Table Top Climatic Chamber is compact, practical and economic choice for stability, reliability and acceleration aging test of various parts, components and final products in ambient range of temperature from +10°C to +80°C and humidity from 60 ~ 90% RH.
 |
download_catalog_jsch-xxxcp.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
+10°C ~ + 80°C (without humidity control) |
|
Accuracy |
± 0.2°C at 20.0°C, (JSCH-070) |
|
Uniformity |
± 0.6°C at 20.0°C, (JSCH-070) |
|
Temp. Sensor |
Class A Pt-100 Ω Sensor |
|
Humidity Range |
60 ~ 90% RH |
|
Accuracy |
± 0.3 % at 60% RH (JSCH-070) |
|
Uniformity |
± 1.0 % at 60% RH (JSCH-070) |
|
Humidity Sensor |
Electronic Sensor |
|
Controller |
JSC-300 Graphic LCD Programmable PID Controller |
|
|
10 Patterns 100 Segments, 999 times repeatable |
|
|
6 Zone PID Group |
|
|
Uploading and downloading data, pattern, parameter setting with PC |
|
|
Control and Data Monitoring PC Software |
|
|
RS-232C or RS-485 Multi-Drop Communication up to 9 instruments and PC Software (OPTION) |
|
Safety |
Over-Temperature Cut-Off |
|
|
Max. Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Including Stainless Steel Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
CEE 7/7 Schuko |
|
|
|
Models
|
Art No. |
|||
|
Chamber Volume (Capacity) |
70 L |
100 L |
|
|
Dimensions |
Inner |
400 x 350 x 500 |
500 x 365 x 550 |
|
W x D x H mm |
Outer |
650 x 885 x 1070 |
750 x 900 x 1120 |
|
Temperature Range |
+ 10°C ~ + 80°C (without Humidification) |
||
|
Accuracy at 20.0°C |
± 0.2°C |
± 0.3°C |
|
|
Uniformity at 20.0°C |
± 0.6°C |
± 0.8°C |
|
|
Humidity Range |
60% ~ 90% RH |
||
|
Accuracy at 60% RH |
± 0.3% |
± 0.4% |
|
|
Uniformity at 60% RH |
± 1.0% |
± 1.3% |
|
|
Number of shelves/Max. |
2 / 16 |
2 / 18 |
|
|
Cable Port |
1 ea x ∅50 mm |
||
|
Humidity Water Supply |
Built-in Water Tank |
||
|
Heater Capacity |
1.6 kW |
2.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||
|
Power Rating |
10.8 Amp |
12.7 Amp |
|
|
Power Plug |
CEE 7/7 Schuko |
||
Features
|

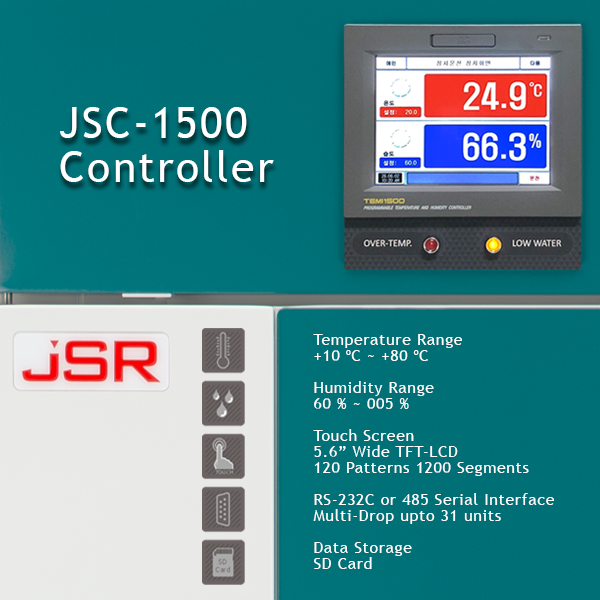

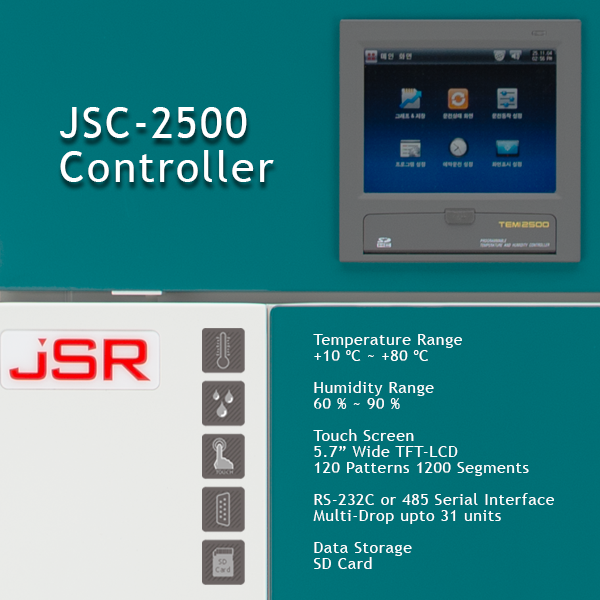

JSC-300 Graphic LCD Programmable Controller |
|
10 Patterns memory 100 Segments 999 times repeatable RS-232C or RS-485 Multi-Drop serial communication up to 9 instruments and PC software (option) Maximum 6 zone PID group for different temperature and humidity range for better control accuracy Temperature calibration and auto-tuning function Class A Pt-100 Ω sensor and electronic humidity sensor
|
|
Construction |
|

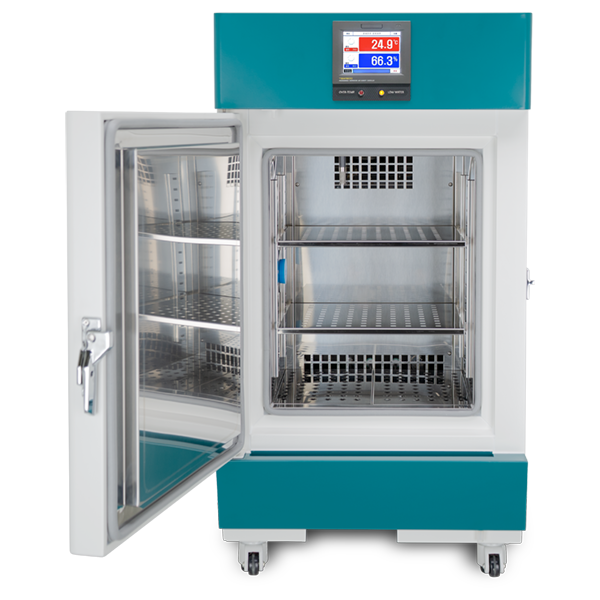

Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Removable and height adjustable shelf Built-in humidifier and automatic water supply from in-built water tank
|
|
Performance |
|
Ideal for ambient range temperature and humidity test Optimized control system allows long term stability and reliability test at different temperature and humidity condition Forced air circulation of controlled temperature and humidity to achieve excellent thermal uniformity Durable Stainless Steel 304 Sheath Heater and copper-aluminum finned evaporator Temperature control within ± 0.1°C resolution Humidity control within ±1.0% RH resolution Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door self adhesive magnetic packing Door with high density silicone packing and air-tight door lock ∅50 mm access port for easy connection of cables into the chamber Automatic water supply from built-in water tank Built-in casters for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM LOW WATER LEVEL ALARM AND CUT-OFF HUMIDIFIER DRY-BURN PROTECTION OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSCH-070CP |
Table Top Climatic Chamber |
220 VAC 50/60 Hz |
70 L |
100 kg |
120 kg |
|
JSCH-100CP |
Table Top Climatic Chamber |
220 VAC 50/60 Hz |
100 L |
130 kg |
150 kg |
|
|
|||||
|
Optional Accessories |
|||||
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
||||
|
PHS-A21 |
for JSCH-070 W370 x D330 mm |
||||
|
PHS-A22 |
for JSCH-100 W470 x D345 mm |
||||
