-20°C Refrigerated Circulation Bath (-20°C 저온순환수조)
Heated/Refrigerated circulating open bath system capable of reaching temperature as low as -20°C and heating up to 120°C for a wide variety of laboratory heating and cooling applications. Internal circulation of thermal fluid within the bath allows precise uniformity within ±0.1°C. Circulation pump enables to circulates heated or refrigerated thermal fluid to external equipments such applications as reactor, condenser, rotary evaporator or controlling the temperature of laboratory equipment such as chromatography columns, viscometers, and densitometers. External circulation pump capacity 10 liters/min. in flow rate and 0.5 bar in pressure.
 |
download_catalog_refrigerated_circulation_bath_type_c.pdf |
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
|
With internal/external circulation pump |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Temp. Range |
ambient -20.0°C ~ 120.0°C |
|
Accuracy |
± 0.1°C at -10.0°C (JSRC-13C) |
|
Uniformity |
± 0.3°C at -10.0°C (JSRC-13C) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Circulation |

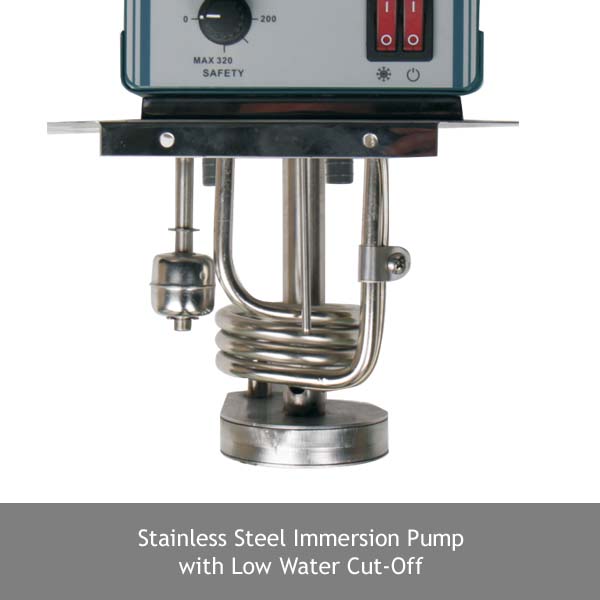

Stainless Steel Immersion Pump |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|

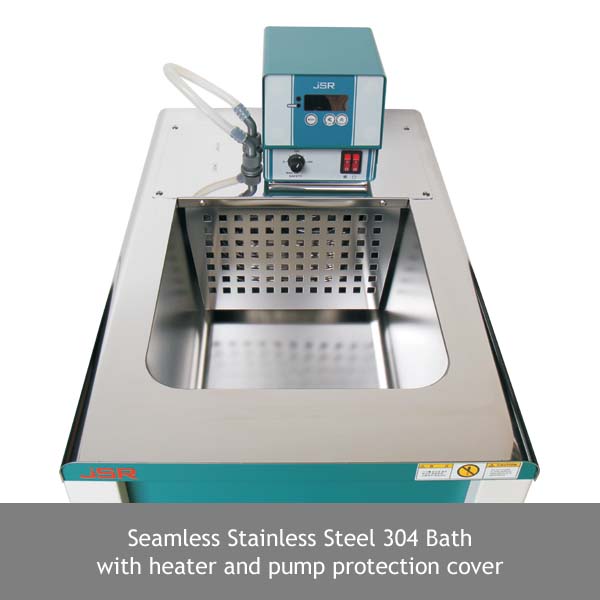

Bath – Electro-polished Seamless Stainless Steel 304 |
|
|
Lid – Polished Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||||
|
Bath Volume (Capacity) |
7 L |
11 L |
20 L |
30 L |
|
|
Dimensions |
Inner |
155 x 300 x 150 |
240 x 300 x 150 |
300 x 330 x 200 |
300 x 500 x 200 |
|
W x D x H mm |
Usable |
155 x 90 x 150 |
240 x 120 x 150 |
300 x 150 x 200 |
295 x 315 x 200 |
|
|
Outer |
290 x 470 x 670 |
370 x 450 x 670 |
430 x 480 x 720 |
430 x 670 x 720 |
|
Temperature Range |
-20°C to 120°C |
||||
|
Accuracy at 37.0°C |
± 0.1°C |
||||
|
Uniformity at 37.0°C |
± 0.3°C |
||||
|
Water Circulation |
Stainless Steel Immersion Circulation Pump |
||||
|
Drain Valve |
Yes |
||||
|
Inlet/Outlet Fitting |
∅9 mm hose barb |
||||
|
Heater Capacity |
700 Watt |
800 Watt |
1.2 kW |
1.6 kW |
|
|
Refrigeration System |
CFC Free Air Cooled Compressor |
||||
|
Power Rating |
6.7 Amp |
7.1 Amp |
8.9 Amp |
10.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||||
Features
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Seamless Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 lid Perforated stainless steel heater and pump cover
|
|
Performance |
|
Temperature range from -20°C to 120°C Excellent control accuracy within ± 0.1°C and thermal uniformity within ± 0.3°C High efficiency heating and cooling system allows short heat-up and cool-down times Corrosion resistant Stainless Steel 304 sheath immersion heater and cooling coil controls bath temperature quickly and precisely Stainless steel immersion circulation pump circulates thermal fluid within the bath for higher temperature uniformity or circulates thermal fluid to external closed loop with flow rate 10 liter/min and 0.5 bar in pressure
|
|
Convenience |
|
Easy to clean Electro-Polished Seamless Stainless Steel 304 Bath Perforated stainless steel heater and pump cover Drain for easy emptying of the bath fluid Supplied with stainless steel flat cover to help reduce heat losses and evaporation Easy to connect ∅9 mm hose barb fitting for external circulation Dust accumulation in refrigeration system is easily cleaned by means of an removable venting grill
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM LOW WATER LEVEL CUT-OFF OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|

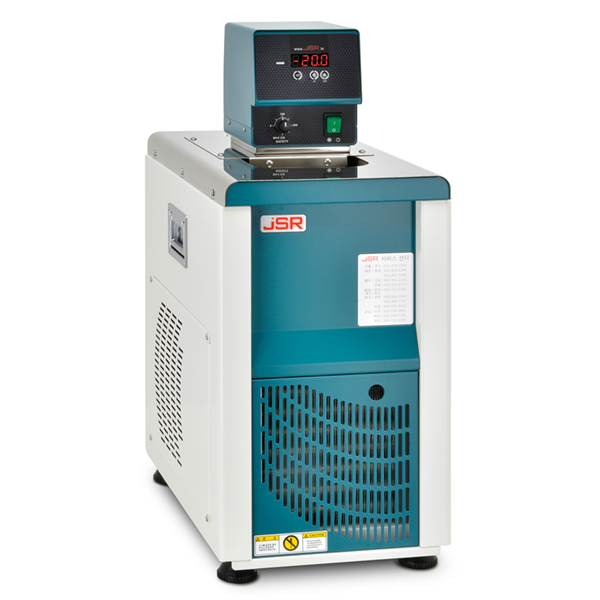

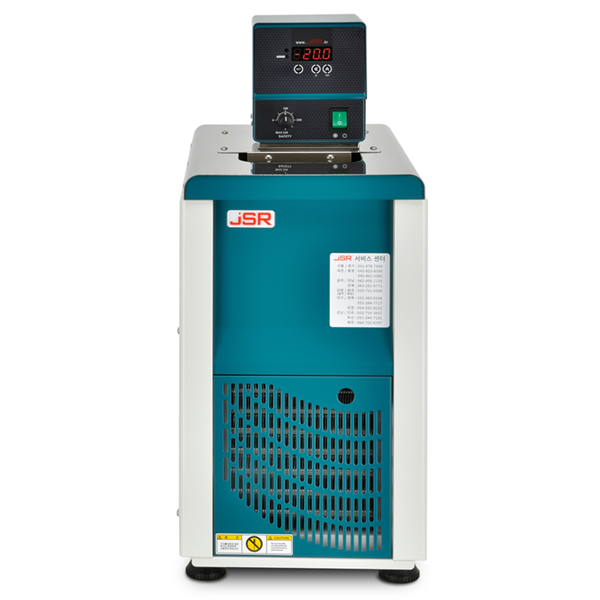

JSRC-06C |
Refrigerated Circulation Bath |
220 VAC 50/60 Hz |
7 L |
25 kg |
29 kg |
|
JSRC-13C |
Refrigerated Circulation Bath |
220 VAC 50/60 Hz |
11 L |
35 kg |
39 kg |
|
JSRC-22C |
Refrigerated Circulation Bath |
220 VAC 50/60 Hz |
20 L |
45 kg |
52 kg |
|

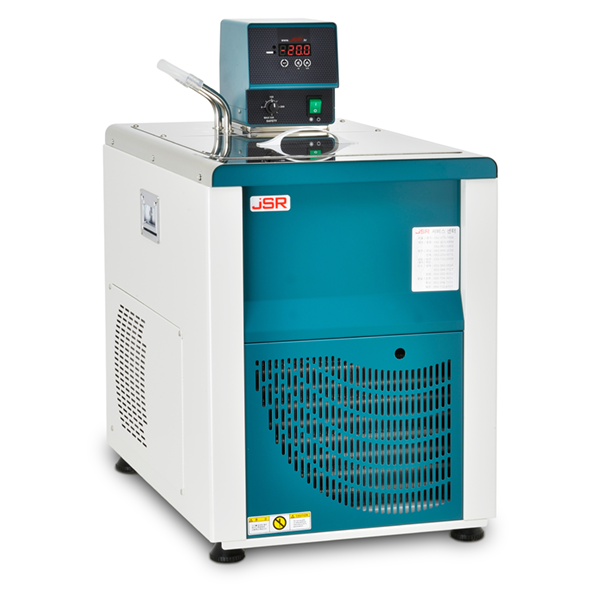

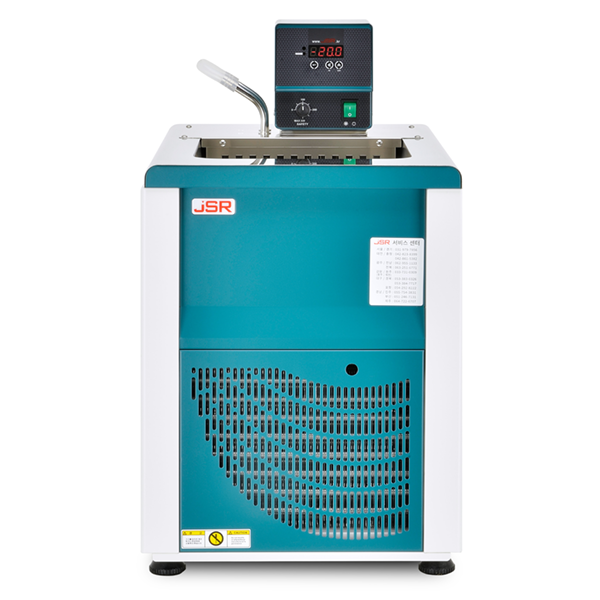

JSRC-30C |
Refrigerated Circulation Bath |
220 VAC 50/60 Hz |
30 L |
53 kg |
60 kg |
