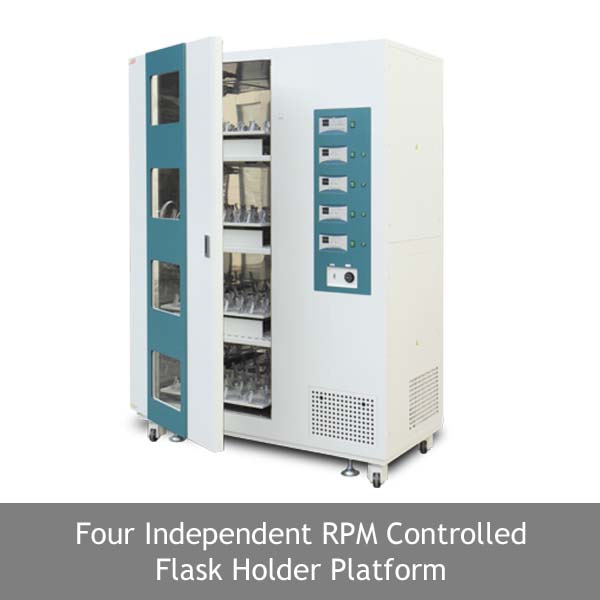

Four Stack Shaking Incubator (4단 진탕배양기)
JSSI-4CM Series Four Stack Shaking Incubator provides multiple shaking platforms in a temperature controlled chamber for big volume tissue culture applications.
 |
download_catalog_multi_stack_shaking_incubator.pdf |

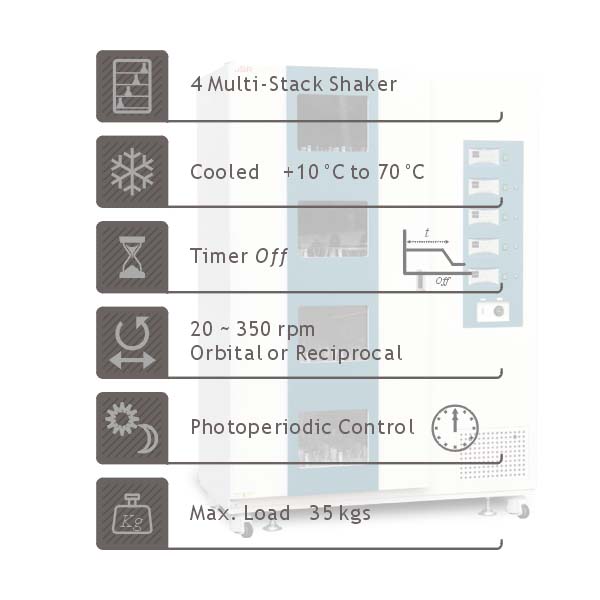

Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 10°C ~ 70°C |
|
Accuracy |
± 0.5°C at 25.0°C (JSSI-4CM) |
|
Uniformity |
± 3.0°C at 25.0°C (JSSI-4CM) |
|
Shaking Motion |
Orbital or Reciprocal |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Control |
Microprocessor Digital PID Control |
|
Auto STOP Timer |
|
|
Individual shaking control of each stack |
|
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
Over Current Cut-Off |
|
|
Material |
Body - Epoxy Powder Coated Steel |
|
Chamber – Stainless Steel 304 |
|
|
Tempered Safety Glass Window |
|
|
Built-in Caster and height adjustable level feet for easy trasnport, balaning and anti-vibration |
|
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
1080 L |
||
|
No. of Shaking Platform |
4 shaking platforms |
||
|
Dimensions |
Inner |
850 x 720 x 1925 |
|
|
W x D x H mm |
Outer |
1590 x 910 x 2255 |
|
|
Platform |
W700 x D650 mm |
||
|
Temperature Range |
+ 10°C to 70°C |
||
|
Accuracy |
± 0.5°C at 25°C (without light) |
||
|
Uniformity |
± 3.0°C at 25°C (without light) |
||
|
Shaking |
Motion |
Orbital or Reciprocal |
|
|
Speed |
20 ~ 350 rpm |
||
|
Stroke |
20 mm |
||
|
Illumination |
none |
8 x 36 Watt FPL |
|
|
Photoperiodic Light Control |
none |
Option |
|
|
Working Light |
25 Watt Bulb |
none |
|
|
Heater Capacity |
2.0 kW |
||
|
Refrigeration System |
CFC-Free Air Cooled Compressor |
||
|
Power Rating |
15.0 Amp |
||
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features
| Construction | Chamber /w Flask Platform | Chamber /w Spring Rack | ||
 |
 |
 |
||
| Controller | Photoperiodic Control Timer | Caster with Level Foot | ||
 |
 |
 |
|
Controller |
|
JSC-1D Digital PID Temperature Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
JSC-TACHO Digital Shaking Controller Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Door with magnetic packing, double layer glass window 4 ea x caster and level foot for self balancing and anti-vibration
|
|
Performance |
|
Four independently controlled shaking platform in a temperature controlled chamber enables large volume of culture under same condition for time saving and consistent production result. Each shaking platform can be operated independently under different speed and time Forced circulation for excellent thermal uniformity within ±0.5°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor Durable shaking mechanism with powerful AC motor supports orbital or reciprocal shaking motion Programmable Lighting System with 24 hour timer for photosynthetic culture
|
|
Convenience |
|
Door with silicone packing and compression door lock Glass window on each platform, lighting in chamber for easy observation during cultivation Door switch to cut-off shaking motion when put in and out sample Auto-defrost system, user settable interval and time Caster and height adjustable level feet for easy transport, balancing and anti-vibration Various choice of shaking platforms
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM Motor failure ALARM Shaking motion automatically stops when door opened OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSSI-4CM |
Multi-Stack Shaking Incubator 4 Shaking Platforms |
220 VAC 50/60 Hz |
1080 L |
410 kg |
510 kg |
|
JSSI-4CML |
Multi-Stack Shaking Incubator 4 Shaking Platforms /w Illumination Control |
220 VAC 50/60 Hz |
1080 L |
420 kg |
520 kg |
|
(Shaking Incubator supplied without shaking platform and accessories) |
|||||

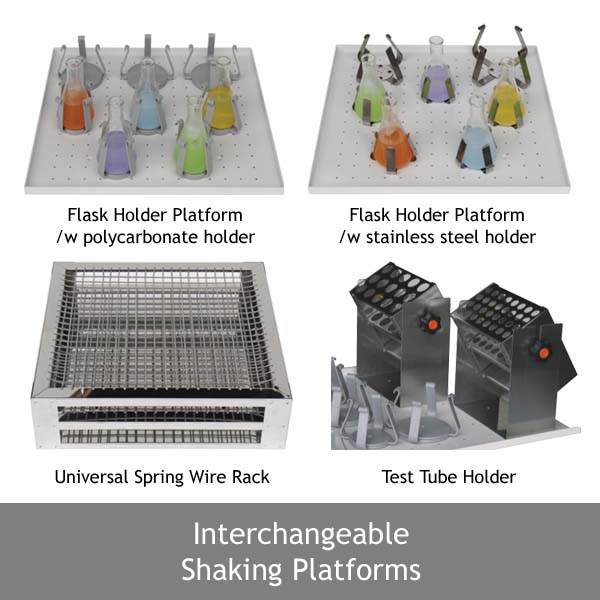

Optional Accessories
|
Art No. |
Descriptions |
|
OHC-106 |
24 Hour Timer Photoperiodic Light Control |
|
Art No. |
Descriptions |
||
|
PHF-P11 |
Adaptor Kit for Reciprocal Motion |
||
|
PHF-U70 |
Universal Spring Rack W690 x D650 mm |
||
|
|
Flask loading capacity (approx.) 100 ml 42 ea 250 ml 25 ea 500 ml 19 ea 1000 ml 15 ea 2000 ml 8 ea |
||
|
PHF-P70 |
Universal Flask Holder Platform W700 x D650 mm |
||
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 41 ea 200 ~ 300 ml 25 ea 500 ml 25 ea 1000 ml 16 ea 2000 ml 9 ea 3000 ml 9 ea 5000 ml 5 ea |
||
|
PHF-P71 |
Dedicated Flask Holder Platform W700 x D650 mm |
||
|
|
Including 72 ea x 50 ~ 100 ml polycarbonate flasks holder |
||
|
PHF-P72 |
Dedicated Flask Holder Platform W700 x D650 mm |
||
|
|
Including 42 ea x 200 ~ 300 ml polycarbonate flasks holder |
||
|
PHF-P73 |
Dedicated Flask Holder Platform W700 x D650 mm |
||
|
|
Including 25 ea x 500 ~ 1000 ml polycarbonate flasks holder |
||
|
PHF-M70 |
Non-Slip Rubber Mat W700 x D650 mm |
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
||
|
|
PHF-S01 |
100 ml |
|
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
Art No. |
Test Tube Holder |
||
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
