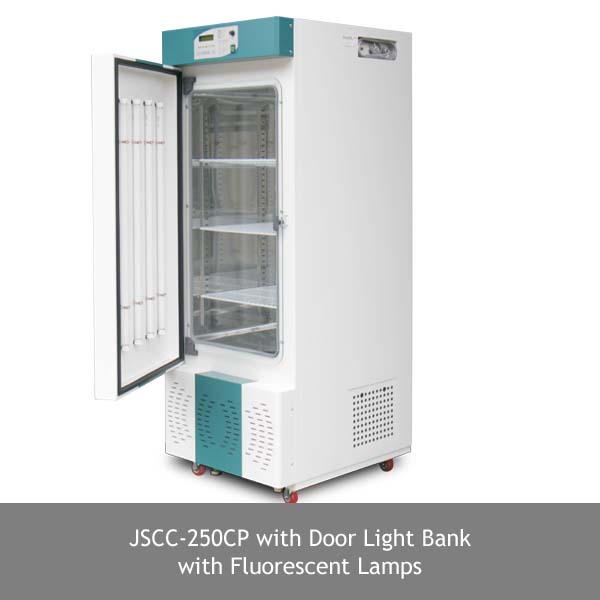

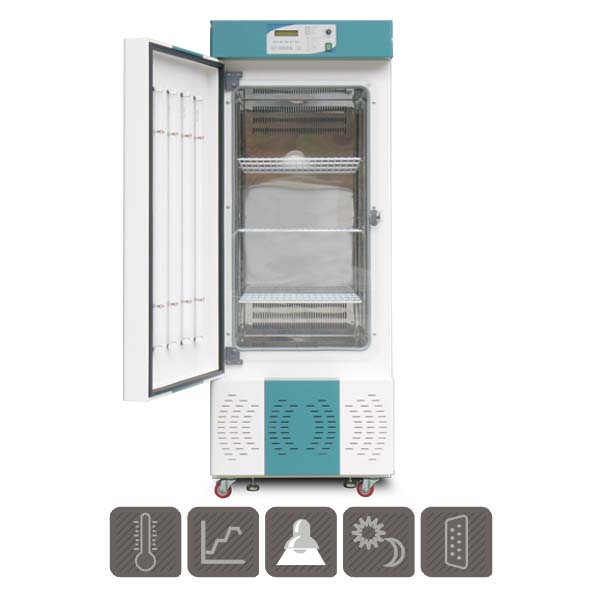

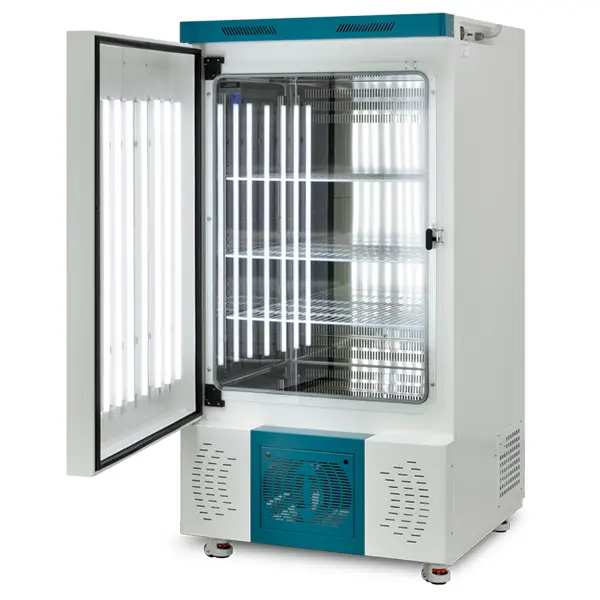

Tissue Culture Chamber (조직배양챔버)

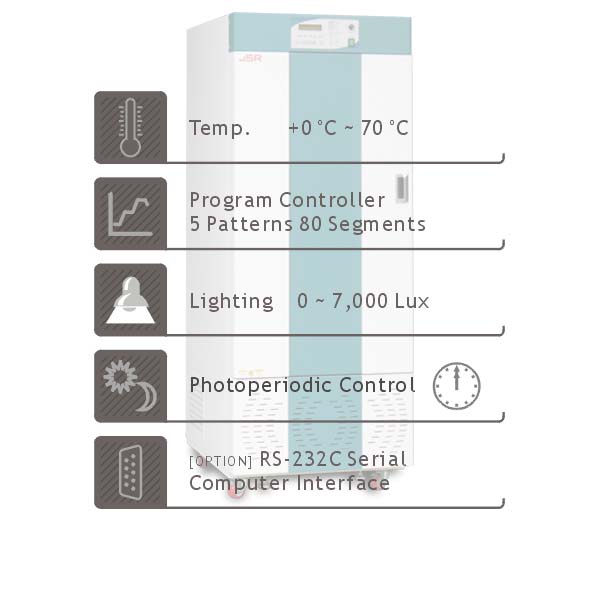

JSCC-Series Plant Tissue Culture Chamber controls temperature and light for photoperiodic day-night simulation to provide controlled climatic condition for crop plants or photosynthetic organisms. Culture conditions such as temperature and light ON/OFF are programmable in 5 pattern memory, up to 80 segments for each pattern, light ON/OFF, temperature range from +0°C to 70°C
 |
download_catalog_tissue_culture_chamber.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Temp. Range |
+0°C ~ 70°C (Light Off JSCC-150CP) |
|
|
+10°C ~ 70°C (Light On JSCC-150CP) |
|
Accuracy |
± 0.2°C at 20.0°C (JSCC-150CP) |
|
Uniformity |
± 0.5°C at 20.0°C (JSCC-150CP) |
|
Control |
Programmable PID Control |
|
|
5 Patterns Internal Memory, 80 Segments, 999 Cycles Repeatable |
|
Illumination |
Photoperiodic ON/OFF Programmable Control |
|
Temp. Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Including PVC Coated Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
CEE 7/7 Schuko or BS1363 |
Models
|
Art No. |
||||
|
Chamber Volume (Capacity) |
150 L |
250 L |
432 L |
|
|
Dimensions |
Inner |
500 x 500 x 600 |
500 x 500 x 1000 |
600 x 600 x 1200 |
|
W x D x H mm |
Outer |
680 x 830 x 1430 |
680 x 830 x 1830 |
780 x 930 x 2030 |
|
Temperature |
Range |
Light Off : +0°C ~ 70°C Light On : +10°C ~ 70°C |
||
|
|
Accuracy |
± 0.2°C at 20.0°C |
||
|
|
Uniformity |
± 0.5°C at 20.0°C |
||
|
Illumination |
Control |
ON / OFF |
||
|
|
Lamp |
2 x 20 Watt FL |
4 x 30 Watt FL |
4 x 36 Watt FL |
|
|
Intensity |
6,500 Lux |
7,000 Lux |
7,000 Lux |
|
Controller |
Programmable PID Control 5 Patterns 80 segments 999 cycles repeatable |
|||
|
Sensors |
Class A Pt-100 Ω Sensor |
|||
|
Number of shelves/Max. |
2 / 16 |
3 / 16 |
3 / 16 |
|
|
Heater Capacity |
900 Watt |
1.0 kW |
1.5 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
|||
|
Electric Requirement |
220VAC 50/60Hz 1P |
|||
|
Power Rating |
8.0 Amp |
8.6 Amp |
11.5Amp |
|
|
Power Plug |
CEE 7/7 Schuko or BS1363 |
|||
Features
|
Controller |
|
JSC-5D Programmable Controller 5 Patterns 80 Segments ±0.1°C Programmable 16-bit Microprocessor PID Controller Two-line back-light LCD Display 5 Patterns Memory 80 Segments 999 Cycles repeatable Supports Constant Temperature Mode / Program Mode Pattern link function Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min continuous operation Programmable photoperiodic light control Temperature calibration function Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

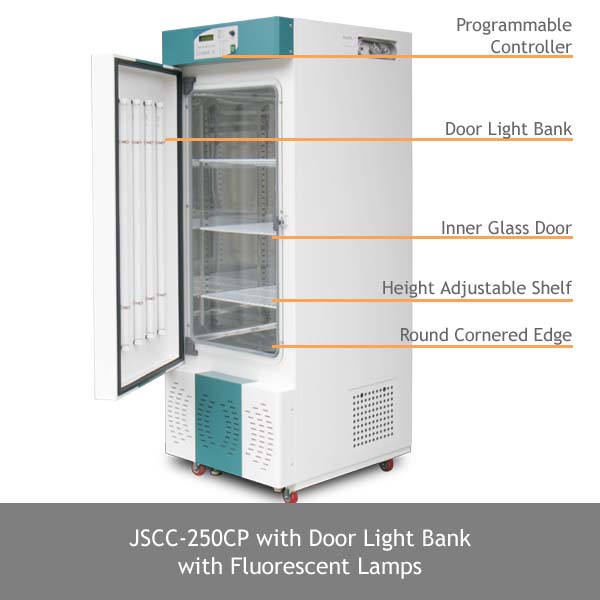

Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevent leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ± 0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevent leakage Removable and height adjustable shelf by 25mm spacing Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSCC-150C |
Tissue Culture Chamber |
220 VAC 50/60 Hz |
150 L |
95 kg |
105 kg |
|
JSCC-250C |
Tissue Culture Chamber |
220 VAC 50/60 Hz |
250 L |
130 kg |
160 kg |
|
JSCC-460C |
Tissue Culture Chamber |
220 VAC 50/60 Hz |
432 L |
175 kg |
210 kg |
|
|
|||||
|
Optional Accessories |
|||||
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
||||
|
PHS-A06 |
for JSCC-150, 250CP W470 x D480 mm |
||||
|
PHS-A09 |
for JSCC-460CP W570 x D580 mm |
||||
|
|
|
||||
|
Art No. |
PVC Coated Wire Shelf |
||||
|
PHS-C05 |
for JSCC-150, 250CP W470 x D480 mm |
||||
|
PHS-C13 |
for JSCC-460CP W570 x D580 mm |
||||
|
|
|
||||
|
PHS-A99 |
Shelf Support, Set of 4 |
||||
