Digital Overhead Stirrer
| Documents |  |
 |
Model Selection Guide
| Model No. | Viscosity | Torque | RPM | |||
|
JSMS-050D |
LOW |
~ 50,000 mPas |
LOW |
~ 85 Ncm |
HIGH |
120 ~ 3000 rpm |
|
JSMS-070D |
LOW |
~ 70,000 mPas |
LOW |
~ 120 Ncm |
HIGH |
100 ~ 2000 rpm |
|
JSMS-100D |
MIDDLE |
~ 100,000 Mpas |
MIDDLE |
~ 180 Ncm |
MIDDLE |
80 ~ 1200 rpm |
|
JSMS-150D |
HIGH |
~ 150,000 mPas |
HIGH |
~ 270 Ncm |
LOW |
50 ~ 800 rpm |
Model
|
Art. No. |
JSMS-050D |
JSMS-070D |
JSMS-100D |
JSMS-150D |
|
Stirring Capacity (H2O) |
Max. 15 Liters |
Max. 25 Liters |
Max. 40 Liters |
Max. 60 Liters |
|
Outer Dims. (W x D x H mm) |
80 x 190 x 245 |
|||
|
Speed Range |
120 to 3,000 rpm |
100 to 2,000 rpm |
80 to 1,200 rpm |
50 to 800 rpm |
|
Maximum Viscosity |
50,000 mPas |
70,000 mPas |
100,000 mPas |
150,000 mPas |
|
Maximum Torque |
85 Ncm |
120 Ncm |
180 Ncm |
270 Ncm |
|
Gear Rate |
1.5 : 1 |
2.0 : 1 |
3.0 : 1 |
4.5 : 1 |
|
Impeller Shaft |
Diameter Ø 8 ~ Ø 10 mm, Length L 500 ~ L 800 mm |
|||
|
Controller |
Digital Fuzzy Controller |
|||
|
Display |
Back Light Graphic LCD Display |
|||
|
Button |
Capacitive touch LED Lighting Touch Button |
|||
|
Interface |
Push and Rotary encoder type Jog Dial |
|||
|
Resolution |
5 rpm |
5 rpm |
1 rpm |
1 rpm |
|
Timer |
1 min to 99 hr 59 min |
|||
|
Safety |
Over Load and Over Heat Protection |
|||
|
Material (Main Body) |
Aluminum casting and ABS Plastic |
|||
|
Electric Requirement |
220 ± 10% VAC, 50/60 Hz, 1-Phase |
|||
|
Motor Rating(Input/Output) |
110 W/ 85 W |
|||
|
Nominal power |
180 W |
|||
|
Plug configuration |
CEE 7/7 Schuko or BS1363 |
|||
Features
|
Controller |
|

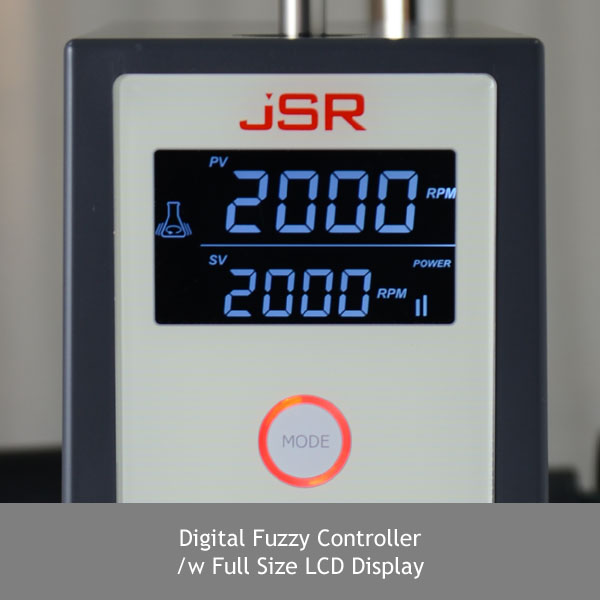

- Advanced microprocessor Digital Fuzzy Controller with Touch button and Jog Dial
- Accurate stirring speed display and control
- Rugged, solid and chemical-proof control panel surface

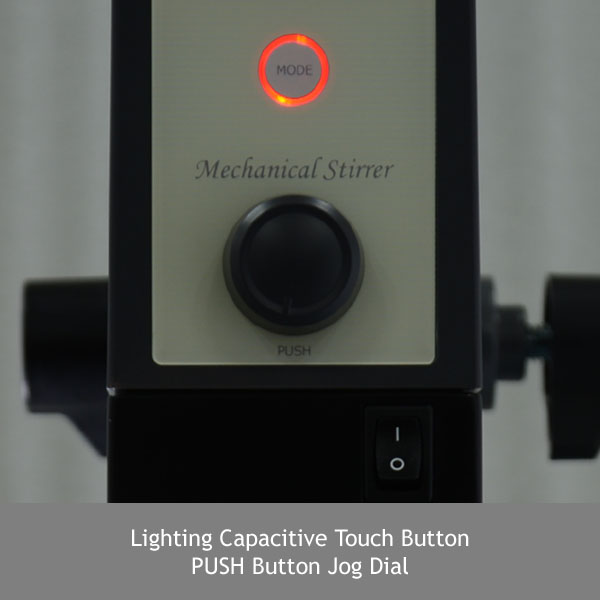

- Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch
- Easy-to-use Jog Dial for quick and convenient setting of stirring speed and timer

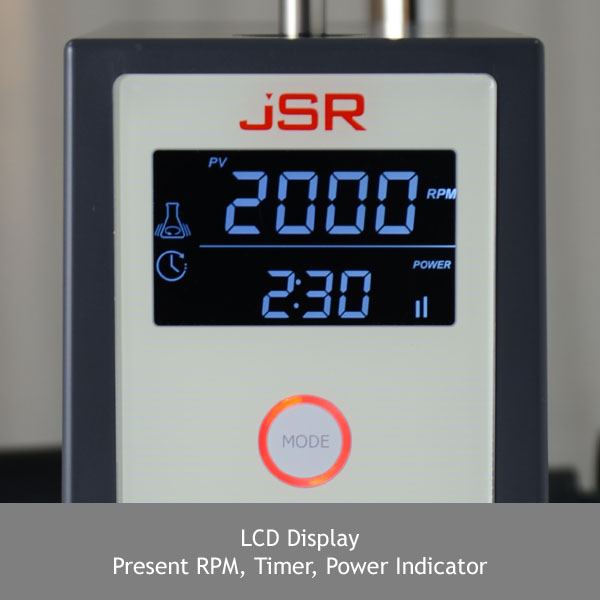

- High-fidelity clear back light LCD displays complete setting and operating condition at a glance
- Easy to monitoring set speed and present speed
- Auto-Stop Timer 1 min ~ 99 hour 59 min
- Stirring Capacity 15 to 60 liter H2O depends on model
- Viscosity 50,000 ~ 150,000 mPas depends on model
- Speed Range 800 to 3,000 rpm depends on model
|
|
Construction |
|
- Compact and handy design to fit all purpose

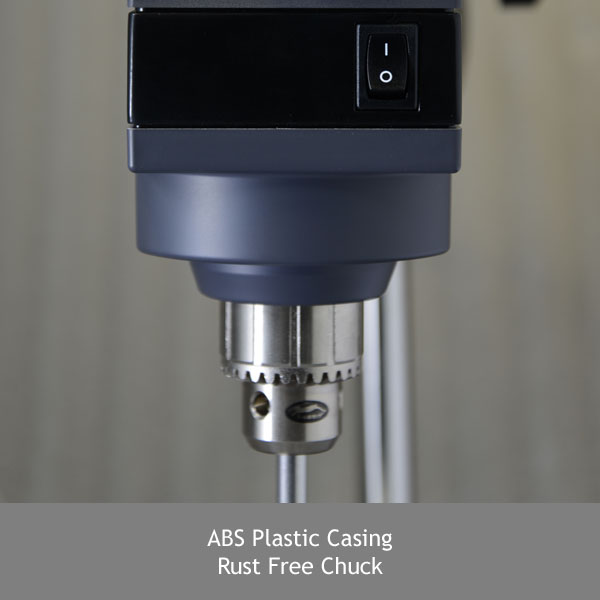

- Main body made by aluminum casting with durable ABS Plastic
- Stainless Steel anti-rust thread chuck
|
|
Performance |
|
- Homogenization, emulsification and dispersion and mixing of fluids at high speed
- Advanced Fuzzy Control System maintaining accurate and consistent RPM
- Gearless torque conversion mechanism ensure less heat generation
- Anti-trembling shaft guarantee vibration and noise free operation
|
|
Safety |
|
- Over load and over heat protection
|
Ordering Information
|
Art No. |
Descriptions |
Viscosity |
Torque |
RPM |
Elec. Req. |
|
JSMS-050D |
Digital Overhead Stirrer |
50,000 mPas |
85 Ncm |
120~3000rpm |
220 VAC 50/60 Hz |
|
JSMS-070D |
Digital Overhead Stirrer |
70,000 mPas |
120 Ncm |
100~2000 rpm |
220 VAC 50/60 Hz |
|
JSMS-100D |
Digital Overhead Stirrer |
100,000 mPas |
180 Ncm |
80~1200 rpm |
220 VAC 50/60 Hz |
|
JSMS-150D |
Digital Overhead Stirrer |
150,000 mPas |
270 Ncm |
50~800 rpm |
220 VAC 50/60 Hz |
Optional Accessories
|
|
Art No. |
Descriptions |
|
|
PHA-04S |
Standard Plate Stand 25Ⅹ37Cm Plate with Rod and Silicon Pad |
|
|
PHA-04S |
Telescopic Stand
25Ⅹ37Cm Plate with Rod and Silicon Pad
|
|
|
PHA-05C |
Bosshead Clamp, up to Ø23mm Rod |
|
3 BLADE PROPELLER |
|||||
|
|
Art. No. |
Blade Type |
Blade Dia. |
Rod Dia. |
Rod Length |
|
|
PHA-P30850 |
3 Blade Propeller |
Ø50 mm |
Ø8 mm |
L 500 mm |
|
PHA-P30870 |
3 Blade Propeller |
Ø70 mm |
Ø8 mm |
L 500 mm |
|
|
PHA-P31070 |
3 Blade Propeller |
Ø70 mm |
Ø10 mm |
L 650 mm |
|
|
4 BLADE PROPELLER |
|||||
|
|
Art. No. |
Blade Type |
Blade Dia. |
Rod Dia. |
Rod Length |
|
|
PHA-P40870 |
4 Blade Propeller |
Ø70 mm |
Ø8 mm |
L 500 mm |
|
PHA-P40890 |
4 Blade Propeller |
Ø90 mm |
Ø8 mm |
L 500 mm |
|
|
PHA-P41090 |
4 Blade Propeller |
Ø90 mm |
Ø10 mm |
L 650 mm |
|
|
4 BLADE DIAMOND |
|||||
|
|
Art. No. |
Blade Type |
Blade Dia. |
Rod Dia. |
Rod Length |
|
|
PHA-D40890 |
4 Blade Diamond |
Ø90 mm |
Ø8 mm |
L 500 mm |
|
PHA-D40810 |
4 Blade Diamond |
Ø110 mm |
Ø8 mm |
L 500 mm |
|
|
PHA-D41010 |
4 Blade Diamond |
Ø110 mm |
Ø10 mm |
L 650 mm |
|
|
2 BLADE CENTRIFUGAL |
||||||
|
|
Art. No. |
Blade Type |
Coating |
Blade Dia. |
Rod Dia. |
Rod Length |
|
|
PHA-C20810 |
2 Blade Centrifugal |
none |
Ø100 mm |
Ø8 mm |
L 500 mm |
|
PHA-C2890F |
2 Blade Centrifugal |
Teflon Coated |
Ø90 mm |
Ø10 mm |
L 500 mm |
|
|
PHA-C2812F |
2 Blade Centrifugal |
Teflon Coated |
Ø120 mm |
Ø10 mm |
L 650 mm |
|
|
2 BLADE ANCHOR |
|||||
|
|
Art. No. |
Blade Type |
Blade Dia. |
Rod Dia. |
Rod Length |
|
|
PHA-A20870 |
2 Blade Anchor |
Ø70 mm |
Ø8 mm |
L 500 mm |
|
PHA-A20890 |
2 Blade Anchor |
Ø90 mm |
Ø8 mm |
L 650 mm |
|
|
PHA-A21090 |
2 Blade Anchor |
Ø90 mm |
Ø10 mm |
L 650 mm |
|
|
PHA-A21014 |
2 Blade Anchor |
Ø140 mm |
Ø10 mm |
L 800 mm |
|
