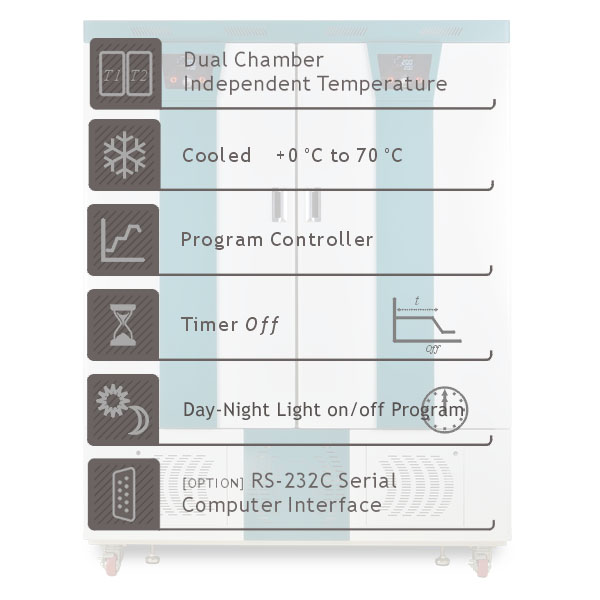

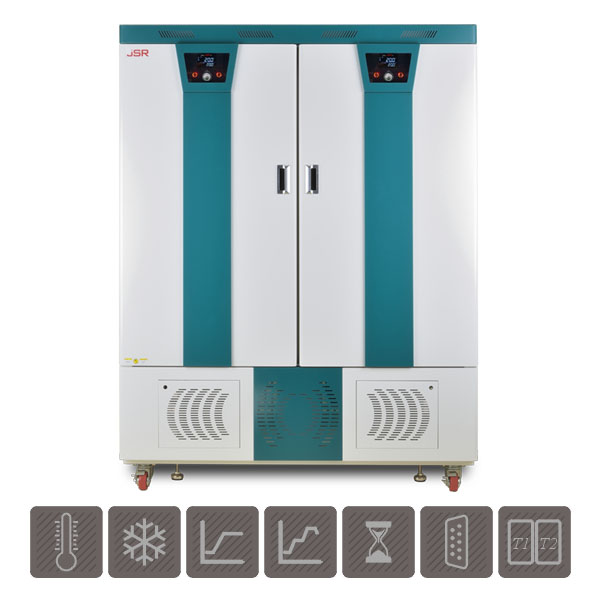

2 x 250L Dual Chamber Refrigerated Incubator
Refrigerated Incubator, Dual Chamber, 10 Step Programmable, Temperature Range +0 °C to +70 °C, Light ON/OFF Program
 |
catalog-jsbi-250dcpl-incubator-eng.pdf |
|
Download Data Sheet |
|||
|
Product Configuration |
|
|
|
|
Fixed Temperature Control |
Yes |
Yes |
Yes |
|
Lamp ON/OFF Control |
No |
No |
Yes |
|
10 Step Temperature Program |
No |
Yes |
Yes |
|
Lamp ON/OFF Program |
No |
No |
Yes |
|
Lamp Type, Length |
No |
No |
LED 570 mm |
|
Lamp Configuration |
No |
No |
15 watt x 5 ea / chamber |
General Specifications
|
Heating |
Forced Air Convection |
|
Refrigeration |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+0 oC ~ 70 oC |
|
Accuracy |
± 0.2 oC at 20.0 oC |
|
Uniformity |
± 0.5 oC at 20.0 oC |
|
Controller |
JIC-CON 5th Generation Digital PID Temperature Controller |
|
10 Step Temperature Programming Capability, 1 ~ 999 times repeatable [ JSBI-250DCP, JSBI-250DCPL ] |
|
|
Light ON/OFF Program on each program step for Day-Night simulation [ JSBI-250DCPL ] |
|
|
|
3 Group Zone PID Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over-Cooling Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
|
|
|
|
|
|
|
10 Step Temperature and Day/Night PROGRAM |
|
 |
[ JSBI-250DCPL ] User can compose 10 steps of varying temperature and light ON/OFF program and can save it in a memory. Composed program can be repeated 1 ~ 999 times or unlimited number of time. |
|
|
3 GROUP ZONE PID ALGORITHM |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
3 POINT CALIBRATION |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
1 POINT OFFSET CALIBRATION |
|
|
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use. |
|
Performance |
|
• Control Temperature Range from +0℃ to +70℃ • Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor
|
|
Controller |
|
• DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable [ JSBI-250DCP, JSBI-250DCPL ] • Light ON/OFF Program on each program step for Day-Night simulation [ JSBI-250DCPL ] • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION • 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples
|
|
Convenience |
|
• Outer door with self-adhesive magnetic packing • Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
|
Safety |
|
• PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM • DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Models
|
|
|||
|
Dimension Data |
|
|
|
|
Chamber Volume |
250 Liters x 2 chambers |
||
|
Inner Dims. (W x D x H mm) |
500 x 500 x 1000 x 2 chambers |
||
|
Outer Dims. (W x D x H mm) |
1365 x 825 x 1760 |
||
|
Inner Glass Door (W x H mm) |
561 x 1077 |
||
|
No. of Shelf Positions |
36 ea by 25mm spacing / chamber |
||
|
No. of Shelf included |
6 ea |
||
|
|
|
|
|
|
Performance Data |
|
|
|
|
Heating System |
Forced Air Convection |
||
|
Cooling System |
2 ea x CFC Free Hermetically Sealed Air Cooled Compressor |
||
|
Temp. Range |
+0 oC ~ +70 oC |
||
|
Accuracy at +20.0 oC |
±0.2 oC |
||
|
Uniformity at +20.0 oC |
±0.5 oC |
||
|
Lamp Type, Length |
n/a |
n/a |
LED 570 mm |
|
Lamp Configuration |
n/a |
n/a |
15 watt x 5 ea / chamber |
|
|
|
|
|
|
Controller |
|
|
|
|
Processor |
Digital Microprocessor PID Temperature Controller |
||
|
Display |
Back Light Graphic LCD Display |
||
|
Panel |
UV Coated Polycarbonate Solid Touch Panel |
||
|
Button |
Capacitive touch LED Lighting Touch Button |
||
|
Interface |
Push and Rotary encoder type Jog Dial |
||
|
Control Logic |
3 Zone PID Control |
||
|
Calibration |
1 Point Temperature OFFSET |
||
|
|
3 Point Temperature Calibration |
||
|
Resolution |
0.1 oC |
||
|
Temperature Program |
Fixed Temp. |
10 Step Program |
10 Step Program |
|
Lamp Program |
n/a |
n/a |
10 Step Program |
|
Auto-Stop Timer |
1 min. ~ 99 hr 59 min |
||
|
Auto-Start Time |
1 min. ~ 99 hr 59 min |
||
|
Sensor |
CLASS A PT-100 Ω Sensor |
||
|
Power Restoration |
Power and Timer Restoration Function in case of power outage |
||
|
PC Communication Interface |
RS-232C PC COMMUNICATION INTERFACE [OPTION] |
||
|
|
|
|
|
|
Electrical Data |
|
|
|
|
Rated voltage |
220 ± 10% VAC |
||
|
Power frequency |
50 / 60Hz |
||
|
Heater Output |
1.0 kW / chamber |
||
|
Nominal power |
2 ea Separate Plug x 1.8 kW 8.2 amp |
||
|
Phase |
1 Phase |
||
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
||
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSBI-250DC |
Dual Chamber Refrigerated BOD Incubator, 250 L x 2 Chambers |
220 VAC 1~ ph 50/60Hz |
|
|
|
|
|
JSBI-250DCP |
Dual Chamber Refrigerated BOD Incubator, Programmable 250 L x 2 Chambers |
220 VAC 1~ ph 50/60Hz |
|
|
|
|
|
JSBI-250DCPL |
Dual Chamber Refrigerated BOD Incubator, Programmable 250 L x 2 Chambers with Light |
220 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art. No. |
Descriptions |
|
PHS-A06 |
Perforated Shelf, Stainless Steel 304, W470 x D480 mm |
|
PHS-C05 |
PVC Coated Wire Shelf, W470 x D480 mm |
|
PHS-A99 |
Shelf Support, Set of 4 ea |
