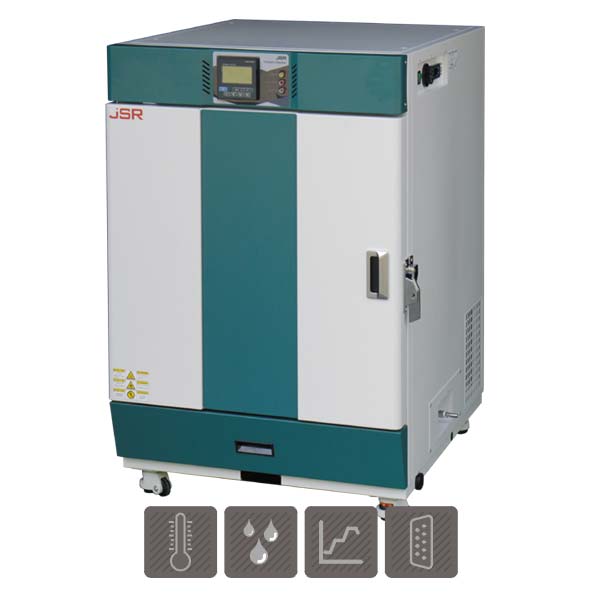

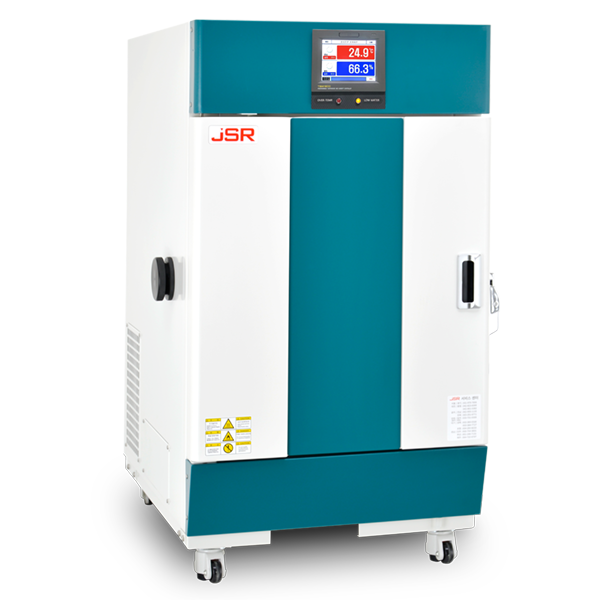

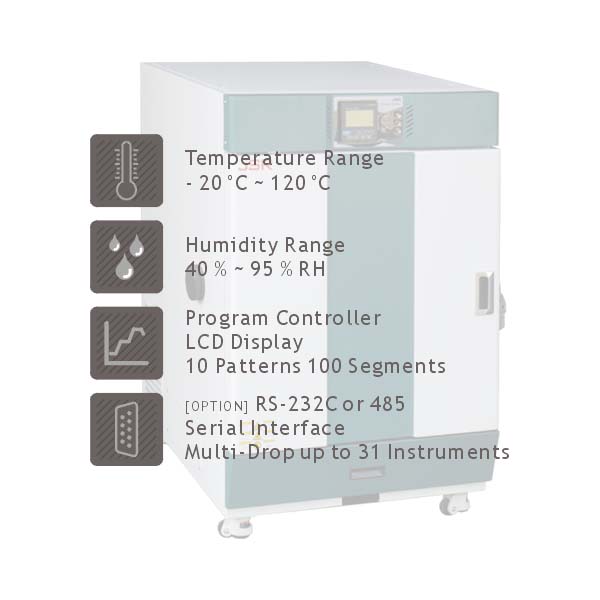

Table Top Climatic Chamber -20°C ~ +120°C
| Primary Applications: | Temperature Range: | Humidity Range: | Chamber Volume: |
|
Stability, reliability, and accelerated aging tests for moderate environmental range specifically tailored for small-scale, high-precision laboratory testing |
-20.0°C ~ 120.0°C | 40 ~ 95% RH |
70 liter 100 liter |
----------
Documents
| JSCH-070CPL | JSCH-100CPL |
 |
|
----------
Common Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
- 20°C ~ + 120°C ( no humidity control below 5°C ) |
|
Accuracy |
± 0.2°C at 20.0°C, (JSCH-070) |
|
Uniformity |
± 0.6°C at 20.0°C, (JSCH-070) |
|
Temp. Sensor |
Electronic Sensor, (E+E, Germany) |
|
Humidity Range |
40 ~ 95% RH ( no humidity control below 5°C ) |
|
Accuracy |
± 0.3 % at 60% RH (JSCH-070) |
|
Uniformity |
± 1.0 % at 60% RH (JSCH-070) |
|
Humidity Sensor |

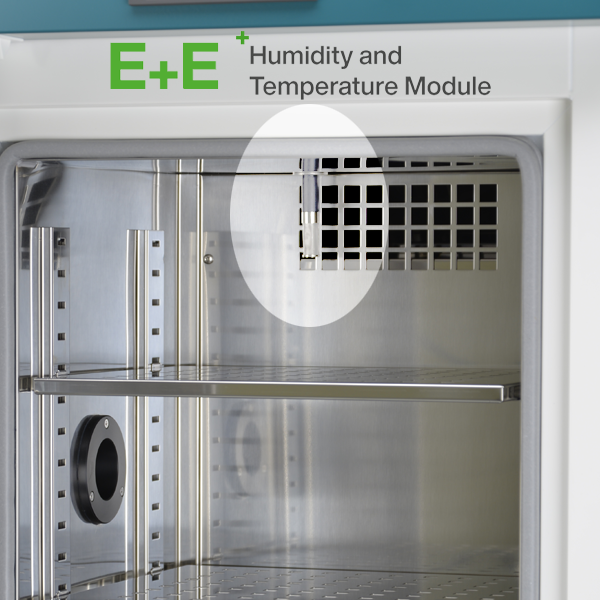

Electronic Sensor, Built-in humidity calibration (E+E, Germany) |
|

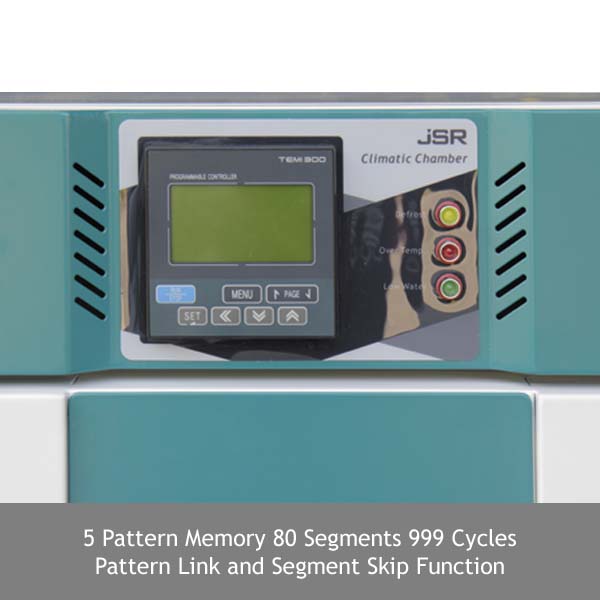

Controller |

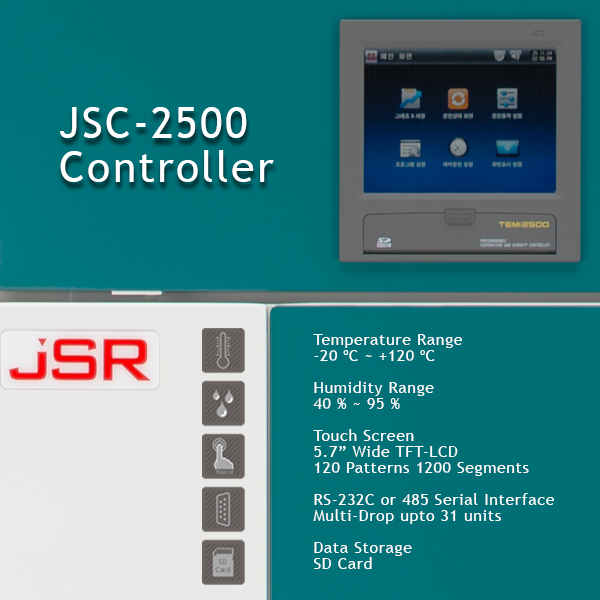

JSC-1500 5.6" TFT-LCD Touch Screen |
|
|
JSC-2500 5.7" Full Color TFT-LCD Touch Screen [option] |
|
Safety |
Over-Temperature Cut-Off |
|
|
Max. Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Including Stainless Steel Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
CEE 7/7 Schuko |
|
|
|
----------

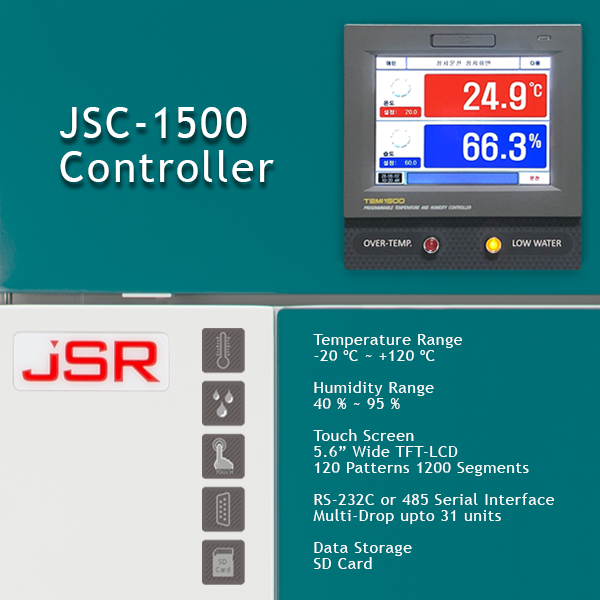

Featured Controller
 |
Touch screen interface Easy access to setup operate with touch screen |
 |
Digital recorder function Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required |
|
 |
SD memory card support The pattern and parameter can be up/download via SD memory card |
 |
Multi-language system Supporting of various languages of korean, english, Chinese, Japanese and russian |
|
 |
Powerful communication RS232C/485 serial [option] 115,200bps Ethernet [option] |
 |
Free PC software Free PC multi-monitoring software for communication and SD viewer for data management of SD data |
|
 |
Precision Control 18bit A/D converter Temperature: ±0.1% of full scale ±1 digit Humidity: ±1.0% of full scale ±1 digit |
 |
Operation time management Display of the operation starting time, estimated termination time and operation time up to now |
|
-----
| JSC-1500 Basic Controller | JSC-2500 Optional Controller | |
 |
 |
|
----
| 5.6" TFT-LCD | 5.7" Full Color TFT-LCD | |||
|
|
Resolution 640x480 64MB Internal Memory stores up to 90 days of continuous temperature and humidity data at a precise 1-second sampling interval |
 |
Resolution 640x480 64MB Internal Memory stores up to 90 days of continuous temperature and humidity data at a precise 1-second sampling interval |
|
| External Memory | External Memory | |||
|
|
SD/SDHC card(FAT32) Logging function: Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
 |
SD/SDHC card(FAT32) 2GB Logging function: Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
|
| Program | Program | |||
|
|
120 Patterns/1200 Segments Segment time: Max. 999hours 59minutes 59seconds, Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode Pattern/Segment repeat operation 9 PID groups (6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
|
120 Patterns/1200 Segments Segment time: Max. 999hours 59minutes 59seconds, Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode Pattern/Segment repeat operation 9 PID groups (6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
|
| Digital recorder function | Digital recorder function | |||
|
|
Real-Time Monitoring: PV, SV, and MV monitoring for each channel via intuitive trend graphs. Secure, automated data recording to the built-in internal memory. Recorded data can be transfer to SD card manually SD Card Adapter: Backs up trend logs and setup parameters from internal memory directly to an SD card. File-based data storage for streamlined management of operation records and system settings. |
|
Real-Time Monitoring: PV, SV, and MV monitoring for each channel via intuitive trend graphs. Secure, automated data recording to the built-in internal memory. Recorded data automatically transferred to SD Card SD Card Adapter: Backs up trend logs and setup parameters from internal memory directly to an SD card. File-based data storage for streamlined management of operation records and system settings. On-Screen Trend Graph Display: Real-time trend graphing and instant on-screen replay of historical data files stored in the internal memory. |
|
| Program Setting | Program Setting | |||
|
|
Instant recall of saved program patterns. Effortless program upload/download via seamless PC connectivity. |
|
Instant recall of saved program patterns. Effortless program upload/download via seamless PC connectivity. |
|
| Powerful Communication [option] | Powerful Communication [option] | |||
|
|
RS232C RS485 Max. 31 nodes. Max. 115,200 bps Ethernet(TCP/IP) |
|
RS232C RS485 Max. 31 nodes. Max. 115,200 bps Ethernet(TCP/IP) |
|
| PC Software | PC Software | |||
|
|
Effectively control and monitoring devices |
|
Effectively control and monitoring devices |
-----

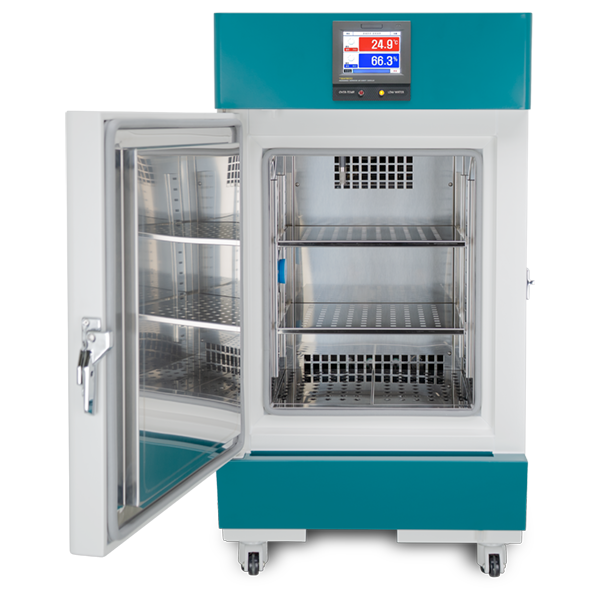

| 50mm Cable Access Port | Inside View | |
|
|
|
|

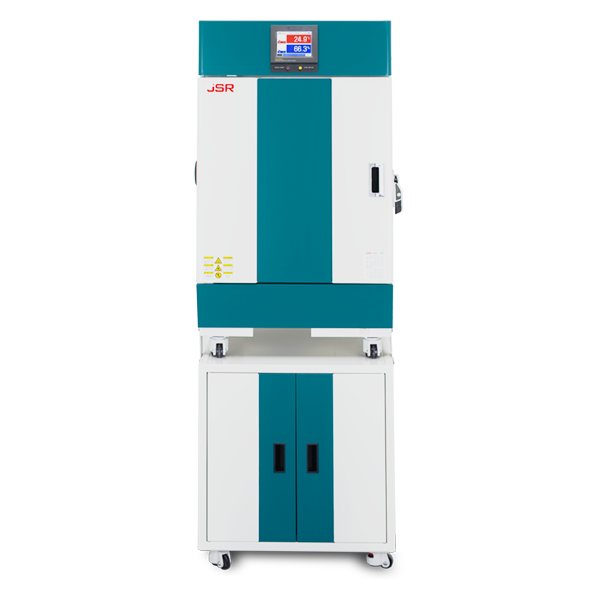

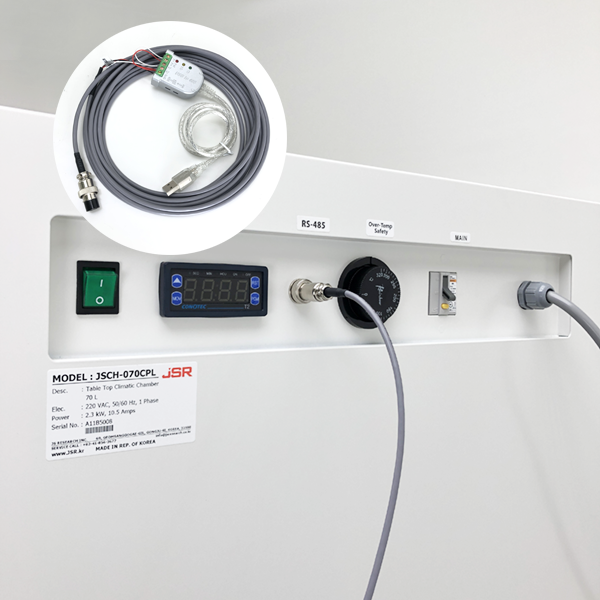

| RS-232/485 Comm Option | Cabinet Stand [option] | |
|
|
|
|

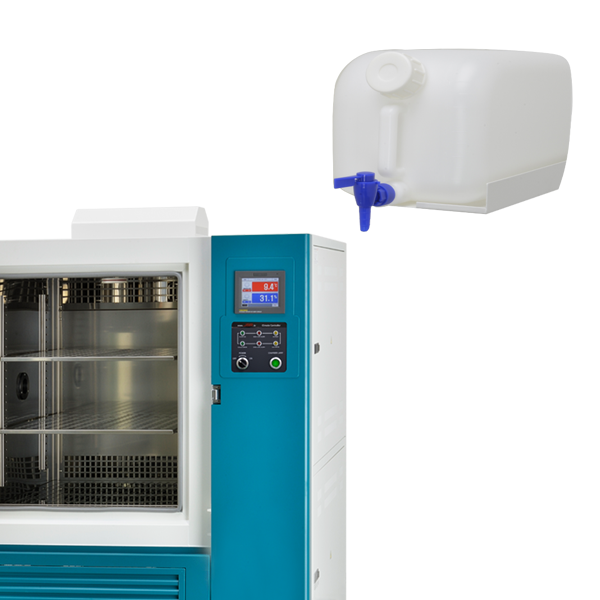

| Temp.&Humi Sensor | Water Supply Carboy | |
|
|
|
-----
Premium Construction
- Rugged Exterior: Built with a durable, epoxy powder-coated metallic casing to withstand demanding laboratory environments
- Corrosion-Resistant Interior: High-grade Stainless Steel 304 internal chamber ensures long-term longevity and clean testing conditions.
- Advanced Thermal Elements: Outfitted with a durable Stainless Steel 304 sheath heater and a highly efficient copper-aluminum fin evaporator.
- Flexible Loading: Includes removable and height-adjustable shelving to accommodate various sample sizes.

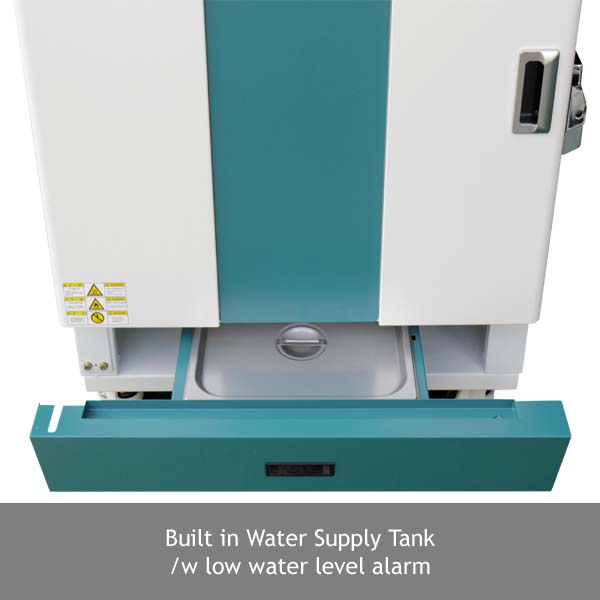

- Seamless Humidification: Features a built-in humidifier with an automatic water supply feed drawing directly from an external carboy water tank.
----
High-Performance Engineering
- Optimized Environmental Control: Advanced control system allows for extended, long-term stability and reliability testing under precise climate conditions.
- Excellent Thermal Uniformity: Forced-air circulation continuously distributes controlled temperature and humidity evenly throughout the chamber.
- Micro-Precision Resolution: Achieve tight testing parameters with a ±0.1°C temperature control resolution and a ±1.0% RH humidity control resolution.
- Reliable Refrigeration: High-efficiency cooling system powered by a rugged, hermetically sealed compressor.
----
User Convenience & Utility
- Airtight Door: Engineered with high-density silicone gaskets and an air-tight door lock to prevent thermal leakage.

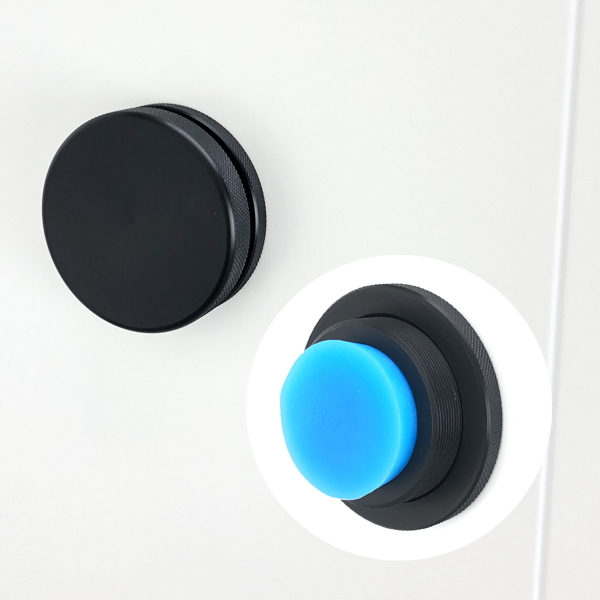

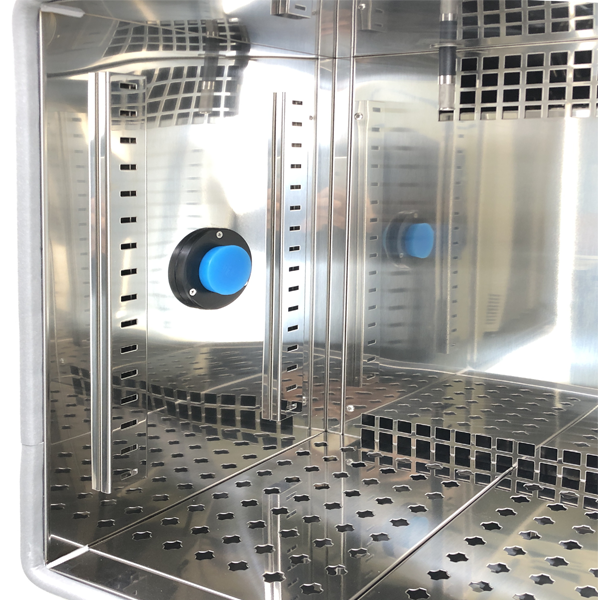

- Convenient Access Port: Features a Ø50 mm access port to easily route external cables and sensors directly into the chamber during live tests.
- Continuous Testing: Automatic water supply connection minimizes manual maintenance during multi-day testing cycles.
- Lab Mobility: Equipped with integrated, heavy-duty built-in casters for effortless transport and positioning on or around your lab benches.
----
Multi-Tiered Safety Systems
To protect your valuable samples and ensure worry-free, unattended operation, the JSCH-Series includes a comprehensive suite of automatic cut-offs and alarms:
- Dual Over-Temperature Cut-Off:
- Digital Safeguard: Automatically cuts off the heater and triggers an audio-visual alarm if the chamber rises +2°C above your set temperature.
- Analog Backup: A secondary, independent analog system cuts power to the heater if temperatures exceed 10% of the set point.
- Max Temperature Limit Protection: Triggers an immediate audio-visual alarm and cuts the heater if the temperature reaches +1°C above the absolute maximum operating limit.
- Sensor Disconnection Alarm: Instantly alerts operators if any environmental sensors lose connection or malfunction.
- Water Supply Protections: Features a low-water level alarm with automatic cut-off, alongside specialized dry-burn protection for the humidifier system.
- Electrical Safeguard: Electric Leakage
----
Model
|
Art No. |
|||
|
Chamber Volume (Capacity) |
70 L |
100 L |
|
|
Dimensions |
Inner |
400 x 350 x 500 |
500 x 365 x 550 |
|
W x D x H mm |
Outer |
650 x 885 x 1070 |
750 900 x 1120 |
|
Temperature Range |
-20°C ~ + 120°C (without Humidification) |
||
|
Accuracy at 20.0°C |
± 0.2°C |
± 0.3°C |
|
|
Uniformity at 20.0°C |
± 0.6°C |
± 0.8°C |
|
|
Humidity Range |
40% ~ 95% RH |
||
|
Accuracy at 60% RH |
± 0.3% |
± 0.4% |
|
|
Uniformity at 60% RH |
± 1.0% |
± 1.3% |
|
|
Number of shelves / Max. |
2 / 16 |
2 / 18 |
|
|
Cable Port |
1 ea x ∅50 mm |
||
|
Humidity Water Supply |
Built-in Water Tank |
||
|
Heater Capacity |
1.6 kW |
2.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||
|
Power Rating |
10.8 Amp |
12.7 Amp |
|
|
Power Plug |
CEE 7/7 Schuko |
||
-----
Ordering Information
| Art No. | Descriptions | Capacity | Elec. Req. |
| JSCH-070CPL | Table Top Climatic Chamber | 70 L | 220 VAC 50/60 Hz |
| JSCH-100CPL | Table Top Climatic Chamber | 100 L | 220 VAC 50/60 Hz |
-
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
 |
|
| PHS-A21 | for JSCH-070 W370 x D330 mm |
| PHS-A22 | for JSCH-100 W470 x D345 mm |
--
