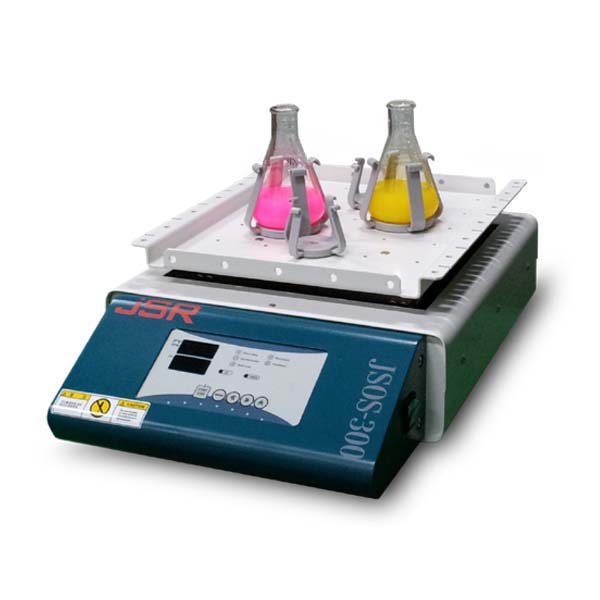

Compact Orbital Shaker
JSOS-300 Orbital Shaker is compact and practical shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
 |
download_catalog_compact_orbital_shaker.pdf |

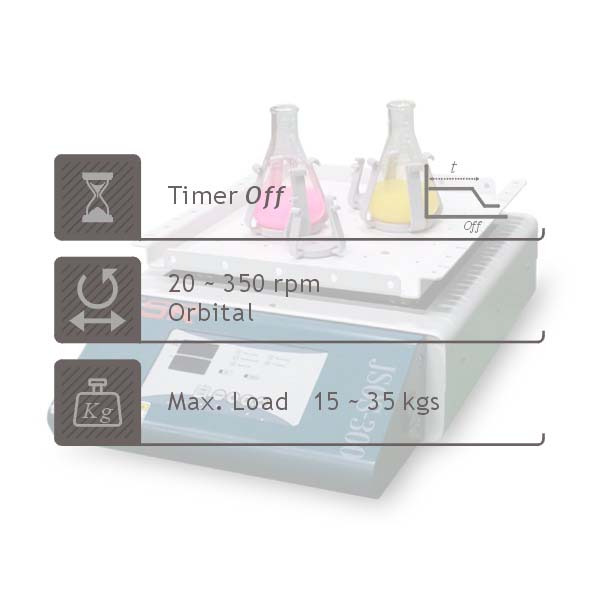

Specifications
|
Shaking Motion |
Orbital |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Accuracy |
± 1 rpm |
|
Control |
Microprocessor Feedback Control |
|
|
Auto STOP Timer |
|
Safety |
Over-Speed Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Flask Platform – Epoxy Powder Coated Steel |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Model
|
Art No. |
||
|
Dimensions |
Platform |
W275 x D345 mm |
|
|
Oversized Platform |
none |
|
W x D x H mm |
Outer |
350 x 520 x 165 |
|
|
Max. load |
15 kgs |
|
Shaking |
Motion |
Orbital |
|
|
Speed |
20 ~ 350 rpm |
|
|
Stroke |
20 mm |
|
Motor Capacity |
15 Watt |
|
|
Power Rating |
0.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|
Features
|
Controller |
|
JSC-TACHO Digital Shaking Controller Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 Universal Spring Rack
|
|
Performance |
|
Speed control from 20 to 350 rpm Precise feedback control within ± 1 rpm Durable shaking mechanism with powerful AC motor supports orbital shaking motion maximum load up to 15 kgs
|
|
Convenience |
|
Height adjustable level feet for balancing, anti-vibration Various choice of shaking platforms - Universal Flask Holder Platform - Dedicated Flask Holder Platform - Non slip Rubber Mat - Size adjustable poly-carbonate flask holder - Stainless steel flask holder - Test Tube Rack
|
|
Safety |
|
MAX RPM Cut-Off motor and AUDIO VISUAL ALARM Motor failure ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Platform Size |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSOS-300 |
Orbital Shaker |
W275 x D345 mm |
220 VAC 50/60 Hz |
18 kg |
20 kg |
|
(Orbital Shaker supplied without shaking platform and accessories) |
|||||

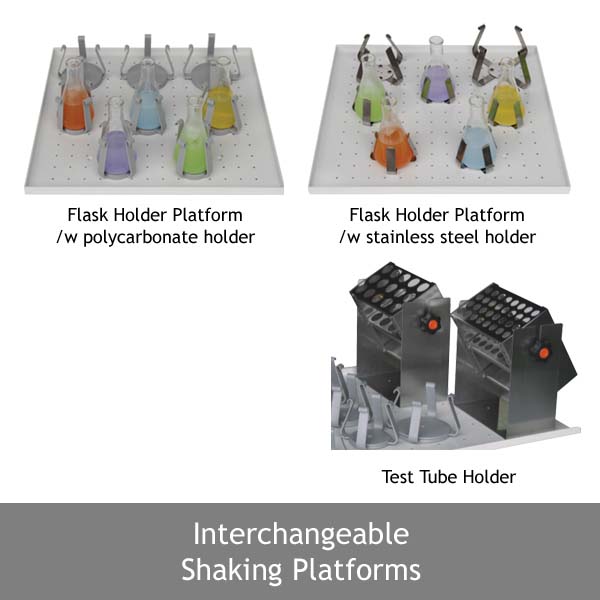

Optional Accessories
|
Art No. |
|
PHF-P30 |

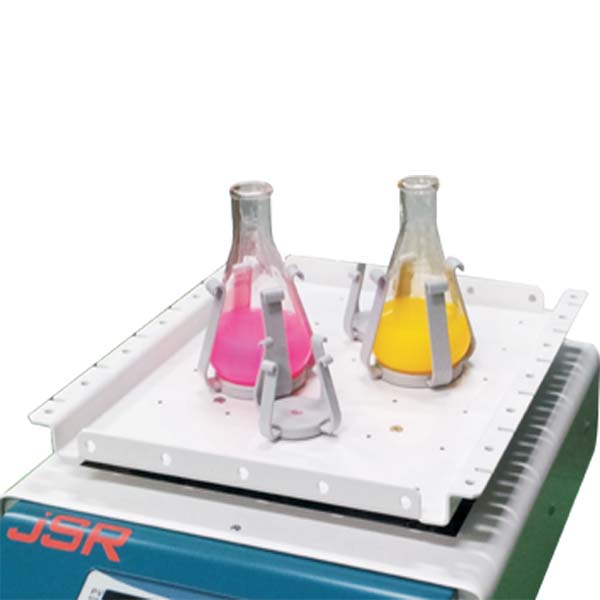

Universal Flask Platform W275 x D345 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 100 ml 8 ea 250 ml 6 ea 500 ml 5 ea 1000 ml 3 ea 2000 ml 2 ea |
|
Art No. |
|
PHF-M30 |
Non-Slip Rubber Mat W275 x D345 mm |
|
|
|
|
|
|
|
|
Art No. |

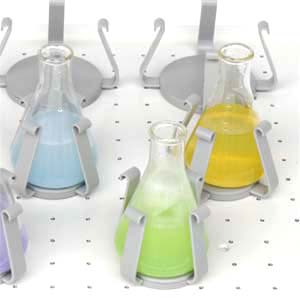

Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
