Orbital Shaker
JSOS-350Q Orbital Shaker designed for agitation of samples in a container (e.g. flasks, bottles, tubes) within ambient condition to aerating, mixing and extracting. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
 |
jsos-350qr-eng.pdf |
Features
|
Controller |
|
Advanced MCU processor applies precise speed control technology 6 Preset Programs 10 Steps for each program Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. Easy-to-use Jog Dial for quick and convenient setting of speed and timer. Push to Run and Stop control. High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present speed and time.
|
|
Performance |
|
Speed range 10 to 300 rpm 20 mm orbital stroke Digital Timer set up to 99hr 59min by 1 min W350 x D350 mm standard shaking platform Powerful driving mechanism with “Slow Start Function” Silent BLDC motor provides long shelf life and maintenance free Maximum loading capacity up to 10 kgs
|
|
Construction |
|
Silent BLDC motor Rugged and low profile ABS plastic body
|
|
Convenience |
|
Interchangeable shaking platform Max. loading capacity of universal flask platform 16ea x 50/100ml, 9ea x 250/500ml, 5ea x 1L, 4ea x 2L, 2ea x 3L, 1ea x 5L Anti-Slip Silicone Mat
|
|
Safety |
|
-Over load protection -Over current protection
|
Specifications
|
Type of Shaking |
: Orbital |
|
Platform Dimensions (WxD) |
: 350 x 350 mm |
|
Speed Range |
: 10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
: 20 mm |
|
Controller |
: Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
|
: 99hr 59min by 1 min resolution |
|
|
: Full Size Digital Back Light LCD Display |
|
|
: Independent ON/OFF Switch |
|
|
: 6 Preset Programs, 10 Steps for each program |
|
Motor |
: Brushless DC Motor |
|
Safety Device |
: Over Load Protection |
|
|
: Over Current Protection |
|
Material |
: ABS Plastic body |
|
Electric |
: 230±10% VAC 50/60 Hz 1-Phase |
|
Plug config. |
: CEE 7/7 Schuko or BS 1363 |
|
|
|
Model
|
Art No. |
|
|
Performance Data |
|
|
Type of Shaking |
Orbital |
|
Platform Dimensions (W x D) |
350 x 350 mm |
|
Speed Range |
10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
20 mm |
|
Max Load |
10 kgs |
|
|
|
|
Controller |
|
|
Type |
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min resolution |
|
Display |
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
Program Function |
6 Preset Programs, 10 Steps for each program |
|
|
|
|
Platform Dimensions |
|
|
Universal Spring Rack |
W350 x D350 mm |
|
Universal Flask Holder Platform |
W370 x D370 mm |
|
|
|
|
Motor |
|
|
Type |
Brushless DC Motor |
|
Power |
45 Watt |
|
Rotating Direction |
Clockwise |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Load Protection |
|
|
Over Current Protection |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Platform |
Aluminum / Steel |
|
|
|
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50/60 Hz |
|
Nominal power |
45 Watt |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H) |
600 x 590 x 210 mm |
|
Type of packaging |
Carton |
|
Net Weight |
14.0 kg |
|
Shipping Weight |
16.0 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSOS-350Q |
Orbital Shaker |
230 VAC 1 ph 50/60 Hz |
|
|
(Orbital Shaker supplied without shaking platform and accessories)
|
|
Optional Accessories
|
|
|
Art No. |
Descriptions |
|
|
|

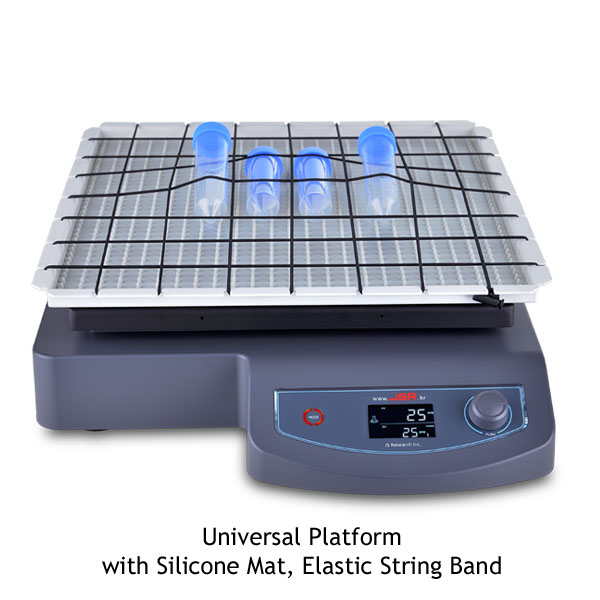

PHF-P35SET |
PHF-P35 Universal Flask Holder Platform PHF-M35 Silicone Mat PHF-S35 Elastic String Band |
|
|
|
PHF-U35 |

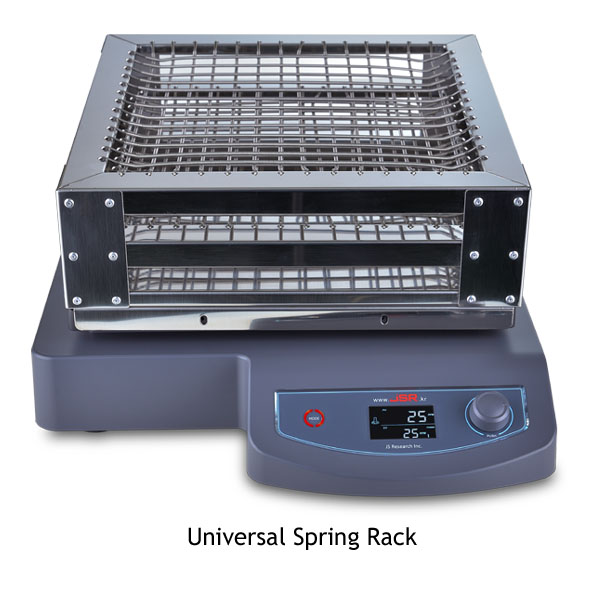

Universal Spring Rack |
|
|
|
PHF-P35 |

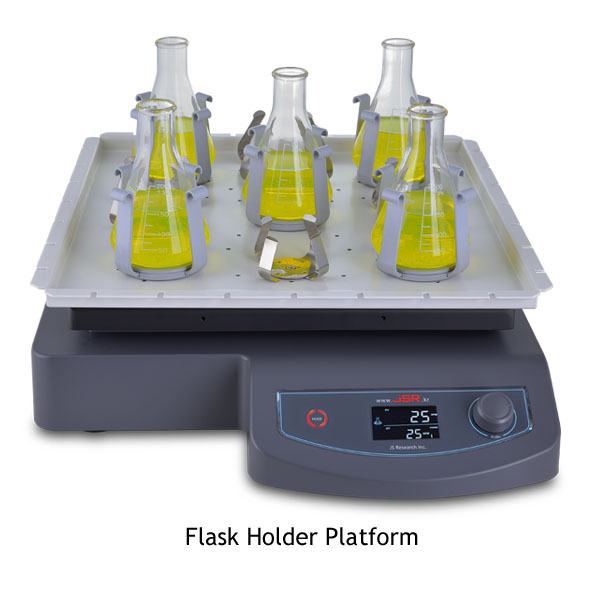

Universal Flask Holder Platform |
|
Art. No. |
Descriptions |
|
PHF-P35SET |
PHF-P35 Universal Flask Holder Platform W370 x D370 mm |
|
|
PHF-M35 Silicone Mat W350 x D350 mm |
|
|
PHF-S35 Elastic String Band x 2 Set |
|
|
|
|
PHF-U35 |
Universal Spring Rack W350 x D350 mm |
|
|
|
|
PHF-P35 |
Universal Flask Holder Platform W370 x D370 mm |
|
|
Max. 16ea x 50/100ml or 9ea x 250/500ml or 5ea x 1L or 4ea x 2L or 2ea x 3L or 1ea x 5L |
|
|
Does not including Flask Holder |
|
|
|
|
PHF-M35 |
Silicone Mat W350 x D350 mm |
|
|
|
|
PHF-S35 |
Elastic String Band with Stopper x 2 Set |
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
