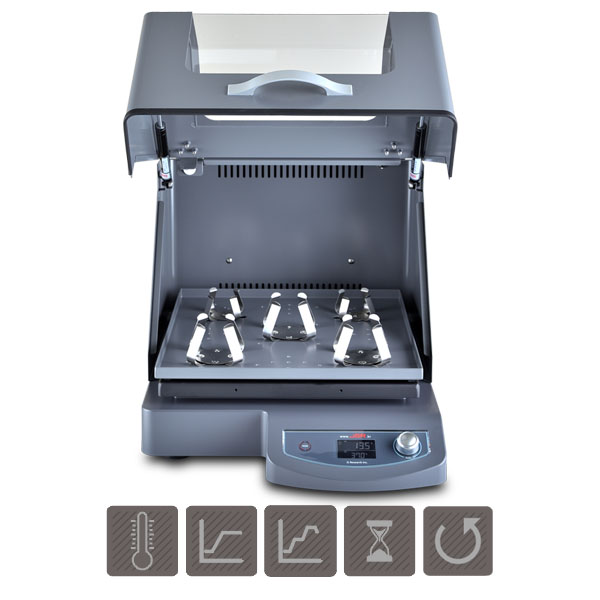

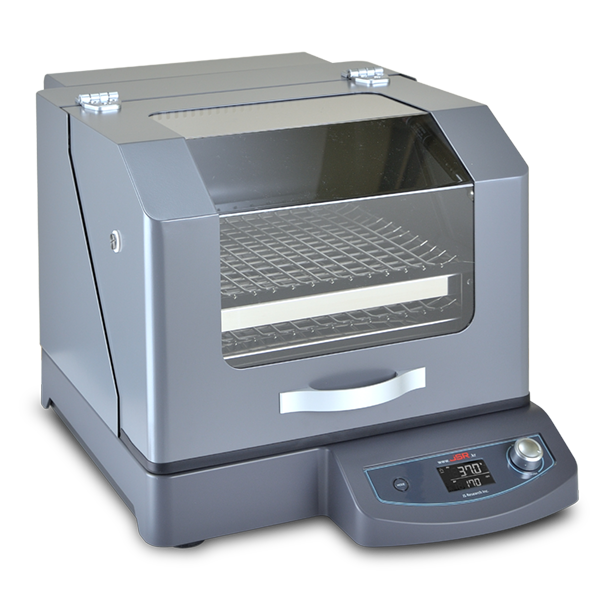

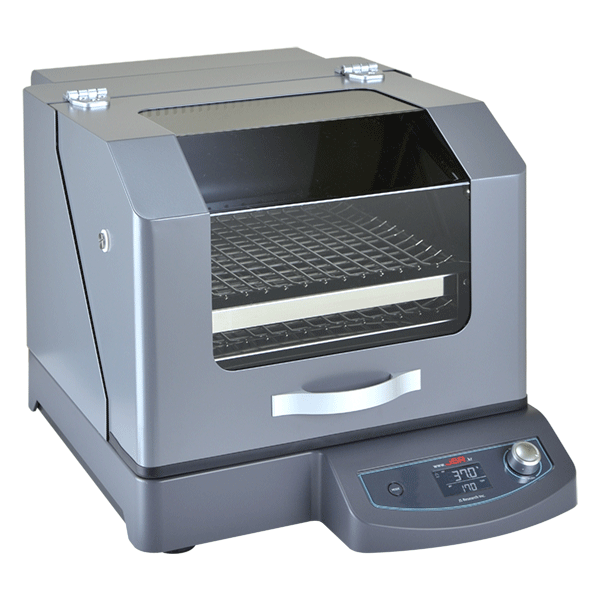

Compact Tabletop Shaking Incubator
JSSI-350T Tabletop Shaking Incubator is compact to fit laboratory table and ideal for any shaking application requiring controlled temperature and shaking speed for microbiology, cell biology, cell culture, tissue culture, biochemistry, molecular biology, environmental engineering, soil testing field temperature range from ambient +5 oC to +50 oC and 10 to 300 rpm.
 |
catalog-jssi-350-shaking-incubator-eng.pdf |
Features
|
Performance |
|
• Temperature Range ambient +5 oC to 50 oC • Temp. accuracy within +/- 0.2 oC • Speed range 10 to 300 rpm • 20 mm orbital stroke • Digital Timer set up to 99hr 59min by 1 min • W350 x D350 mm standard shaking platform • Powerful driving mechanism with “Slow Start Function” • Silent BLDC motor provides long shelf life and maintenance free • Maximum loading capacity up to 10 kgs
|
|
Controller |
|

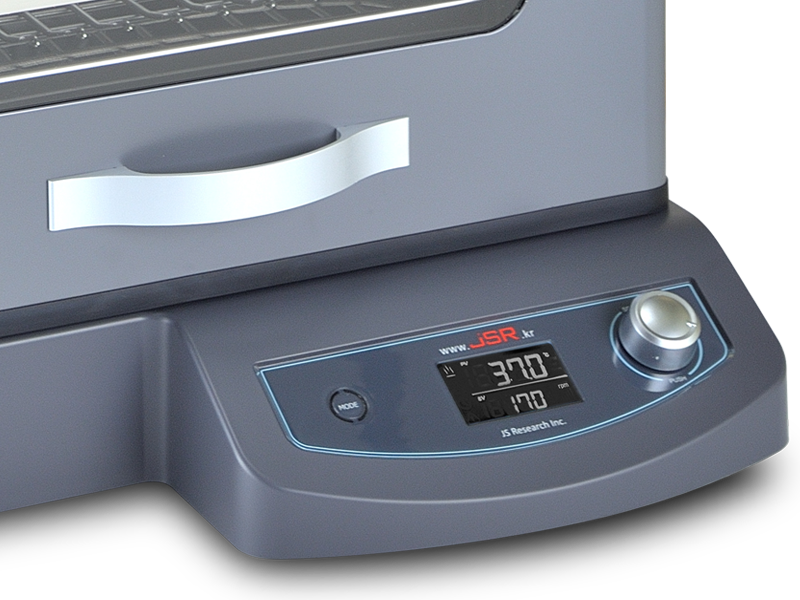

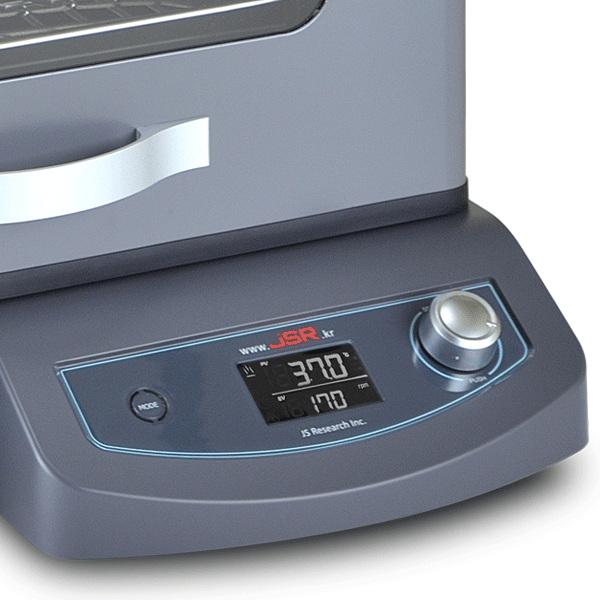

• Advanced MCU processor applies precise speed control technology • 3 Preset Shaking Programs • 10 shaking steps per each program • Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. • Easy-to-use Jog Dial for quick and convenient setting temperature, speed and timer. • Push to Run and Stop control. • High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present speed and time.
|
|
Construction |
|
• Hinged door with transparent acrylic window • Silent DC motor • Rugged and low profile ABS plastic body
|
|

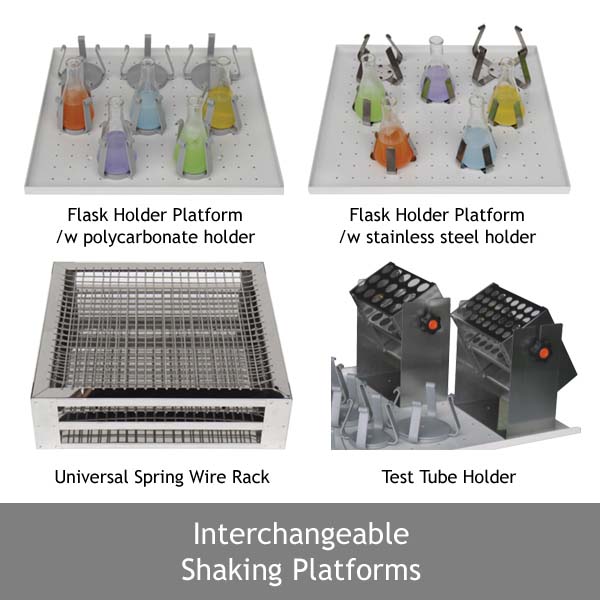

Convenience |
|

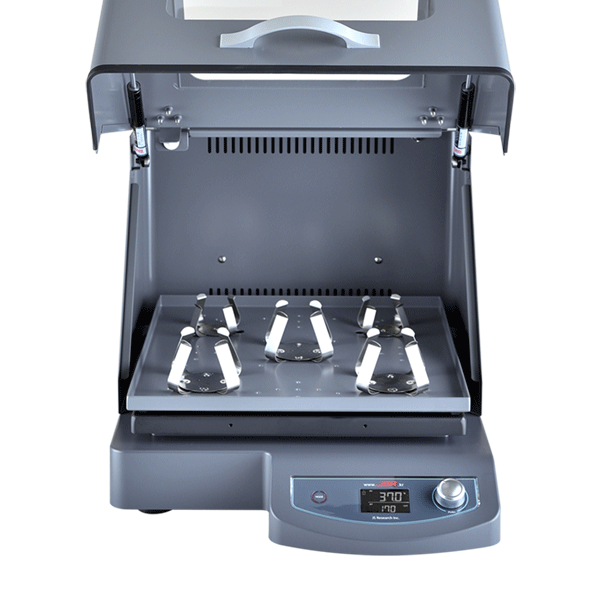

• Interchangeable shaking platform • Max. loading capacity of universal flask platform 16ea x 50/100ml, 9ea x 250/500ml, 5ea x 1L • Anti-Slip Silicone Mat |
|
Safety |
|
• Over-Temperature Cut-Off • Over load protection • Over current protection |
Model
|
Description |
|
|
Performance Data |
|
|
Heating |
Forced Air Convection |
|
Temperature Range |
ambient +5 oC ~ +50 oC |
|
Temperature Accuracy |
+/- 0.2 oC at +37 oC |
|
Temperature Uniformity |
+/- 1.0 oC at +37 oC |
|
Type of Shaking |
Orbital |
|
Speed Range |
10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
20 mm |
|
Max Load |
10 kgs |
|
|
|
|
Controller |
|
|
Type |
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min resolution |
|
Display |
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
Program Function |

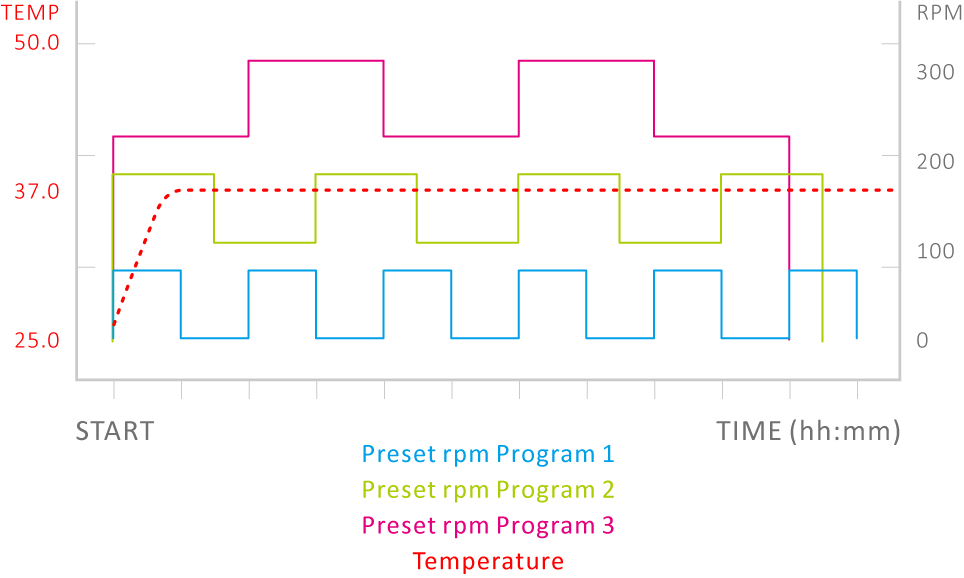

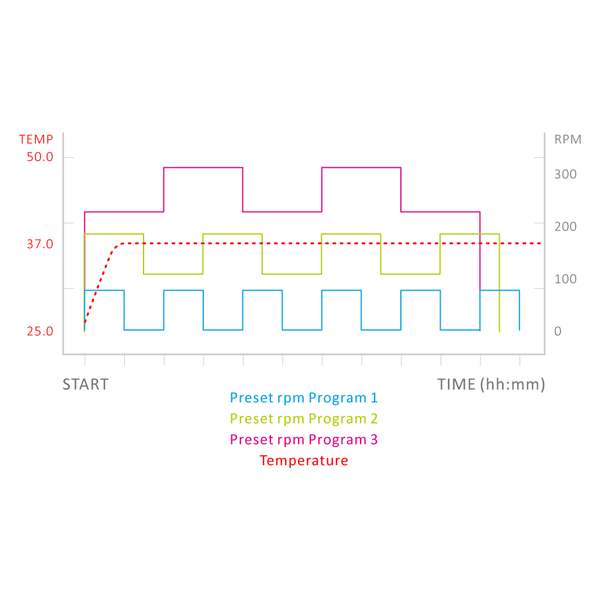

3 Preset Shaking Programs, 10 Steps for each program |
|
|
|
|
Dimensions |
|
|
Inner Dimensions (W x D x H) |
400 x 400 x 280 mm |
|
Outer Dimensions (W x D x H) |
400 x 600 x 370 mm |
|
Platform Dimensions (W x D) |
350 x 350 mm |
|
Maximum Usable Height |
230 mm |
|
|
|
|
Motor |
|
|
Type |
DC Motor |
|
Power |
45 Watt |
|
Rotating Direction |
Clockwise |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Load Protection |
|
|
Over Current Protection |
|
|
Door Cut-Off Switch |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Platform |
Aluminum / Steel |
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50/60 Hz |
|
Nominal power |
350 Watt |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSSI-350T |
Tabletop Shaking Incubator |
220 VAC 1 ph 50/60 Hz |
Optional Accessories
|
Art. No. |
Descriptions |
|
PHF-U350T |

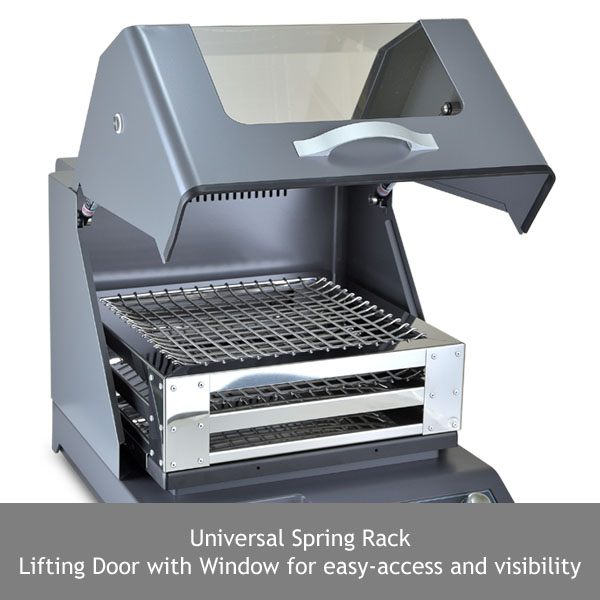

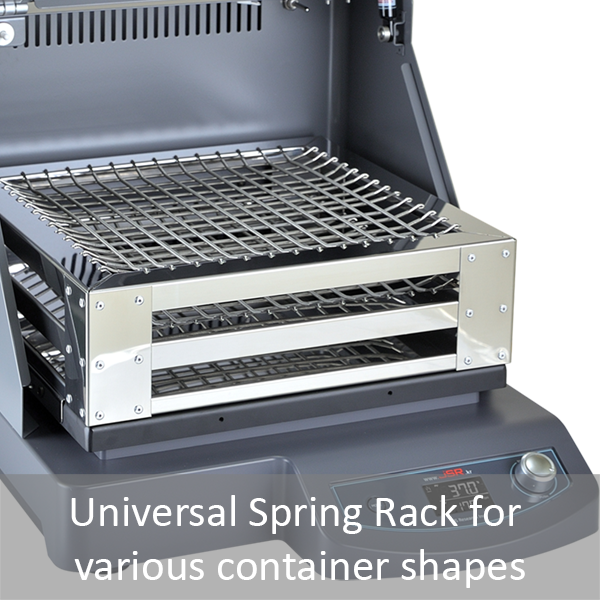

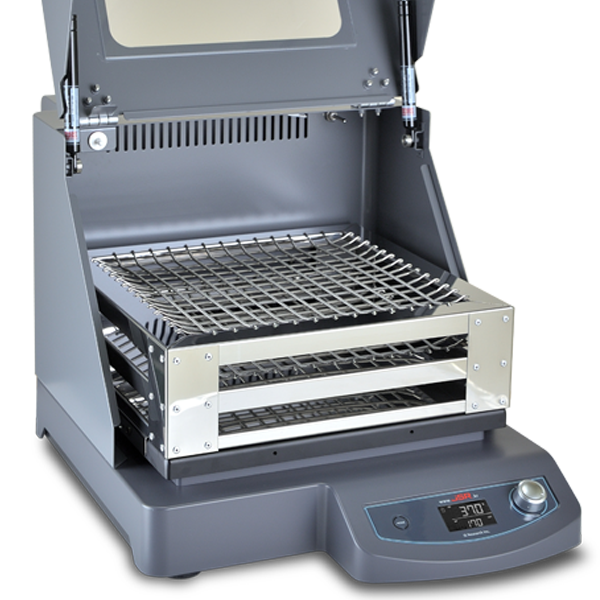

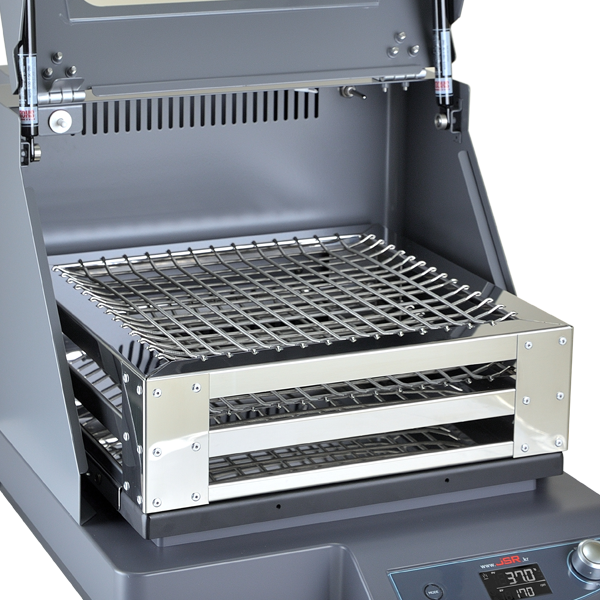

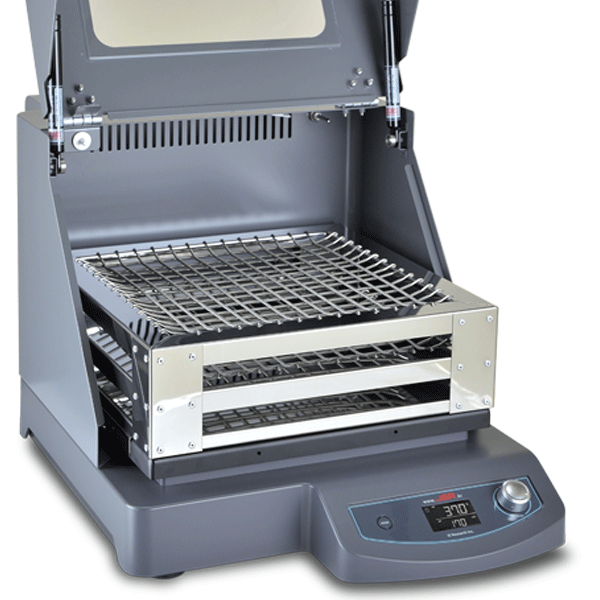

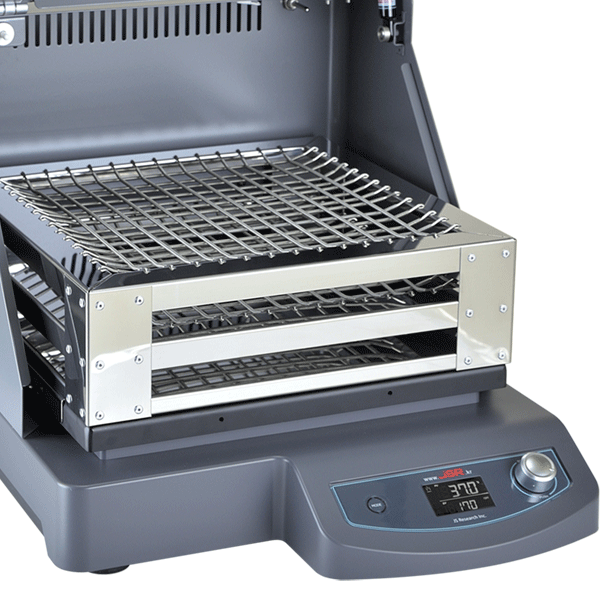

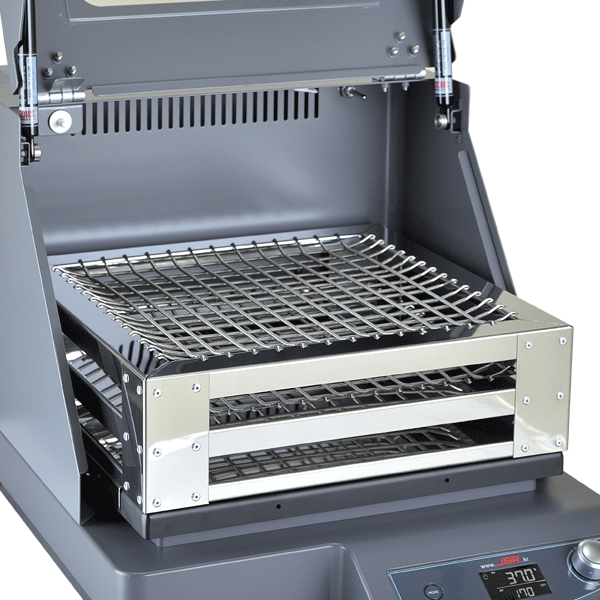

Universal Spring Rack W350 x D350 mm |
|
|
|
|
PHF-P350T |

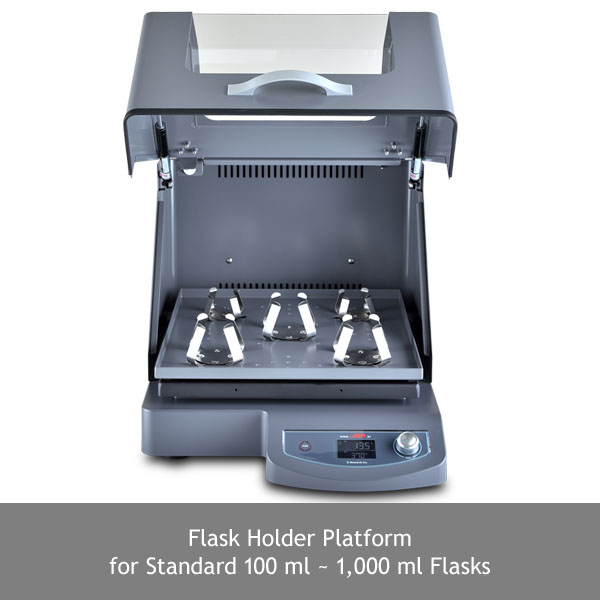

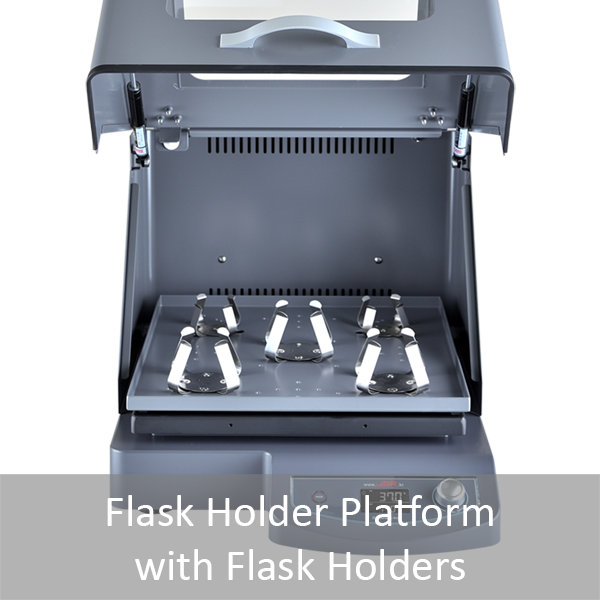

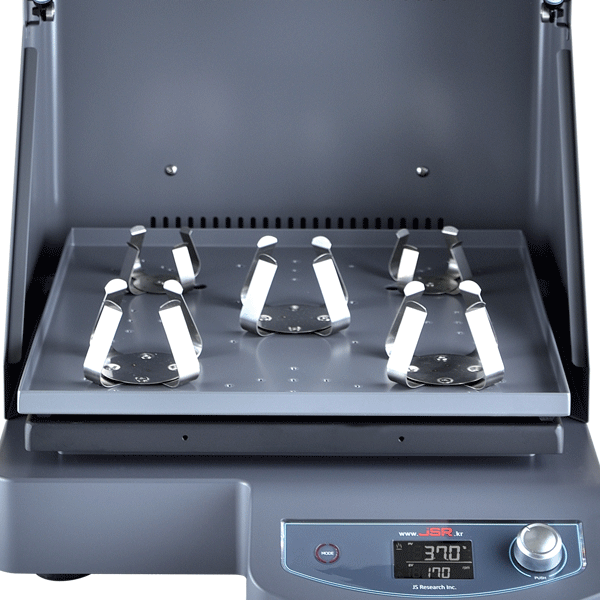

Universal Flask Holder Platform W350 x D350 mm Max. 16ea x 50/100ml or 9ea x 250/500ml or 5ea x 1L Does not including Flask Holder |
|
|
|
|
PHF-M350T |

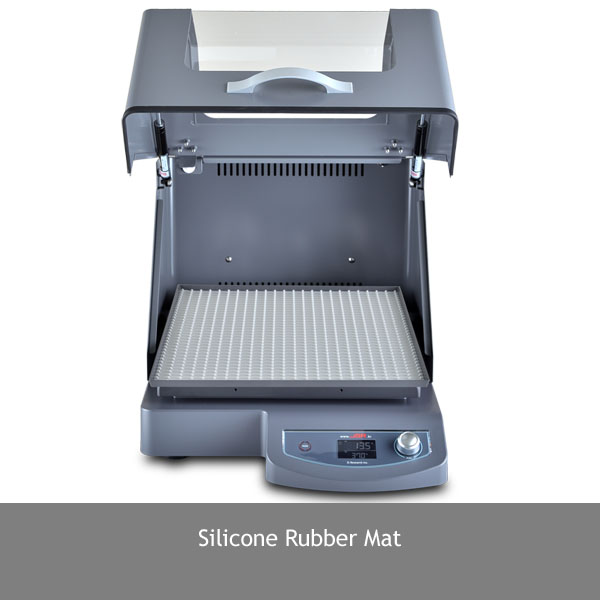

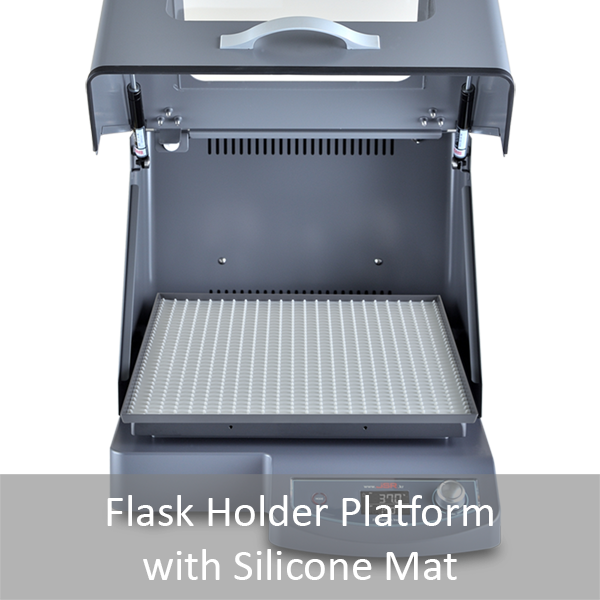

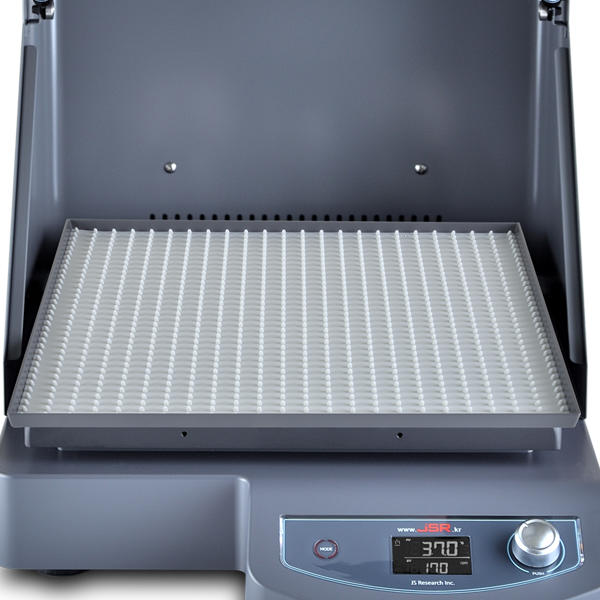

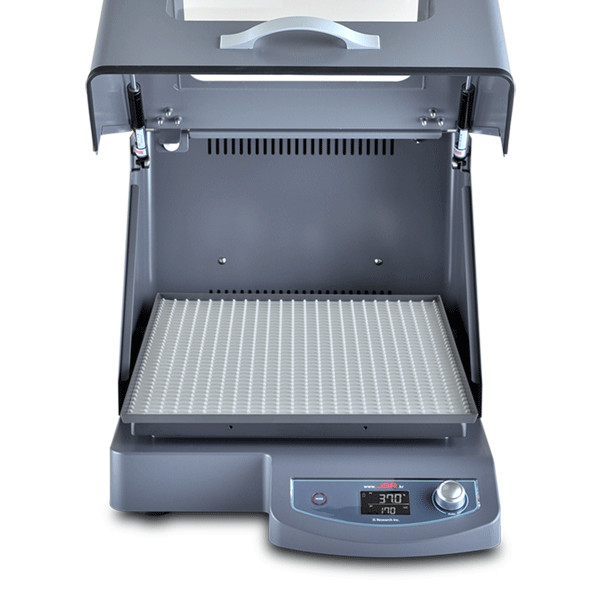

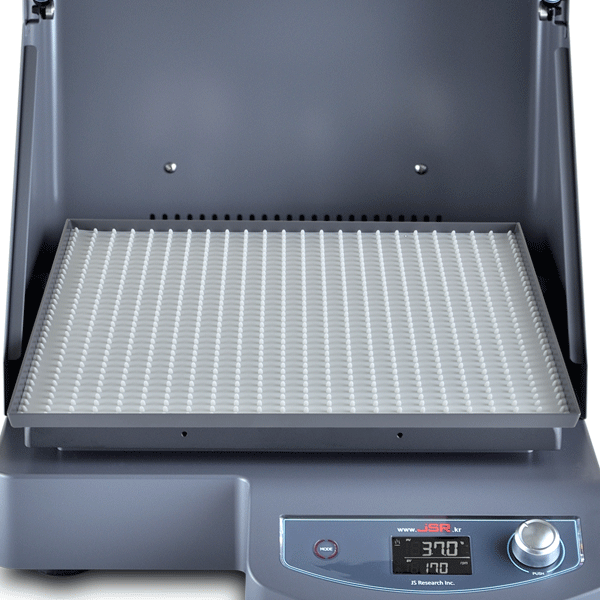

Silicone Mat W350 x D350 mm |
|
|
|
|
PHF-S01 |
Stainless Steel Flask Holder 100 ml |
|
PHF-S02 |
Stainless Steel Flask Holder 250 ml |
|
PHF-S03 |
Stainless Steel Flask Holder 500 ml |
|
PHF-S04 |
Stainless Steel Flask Holder 1000 ml |
