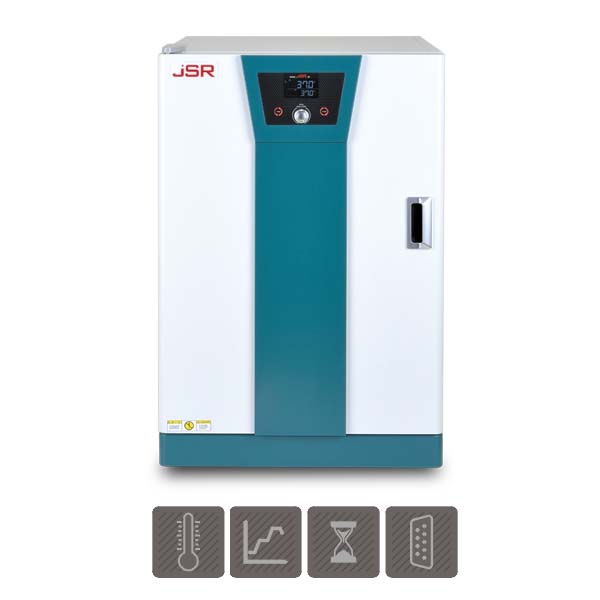

General Incubator, Programmable
Heated Incubator, 10-Step Programmable, Temperature Range ambient +5 °C to +70 °C, Chamber Volume 50, 100, 150, 250 liters
 |
catalog-jsgi-incubator-eng.pdf |
|
Download Data Sheet |
||||
|
General Incubator |
50 Liter |
100 Liter |
150 Liter |
250 Liter |
General Specifications
|
Heating System |
Forced Air Convection |
|
Temp. Range |
ambient+5 oC ~ 70 oC |
|
Accuracy |
± 0.2 oC at 37.0 oC (JSGI-050T) |
|
Uniformity |
± 0.5 oC at 37.0 oC (JSGI-050T) |
|
Controller |
JIC-CON 5th Generation Programmable Temperature Controller |
|
Program |
1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
|
|
|
|
|
|
|
|

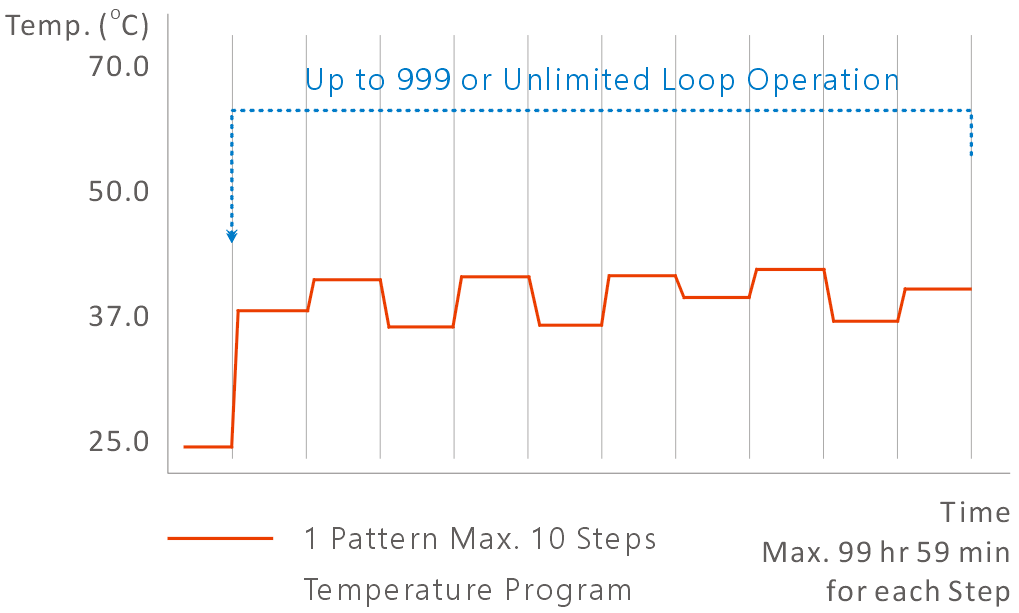

1 Pattern 10 Step PROGRAM |
|
|
User can compose 10 steps of varying temperature program and can save it in a memory. Composed program can be repeated 1 ~ 999 times or unlimited number of time. |
|
|

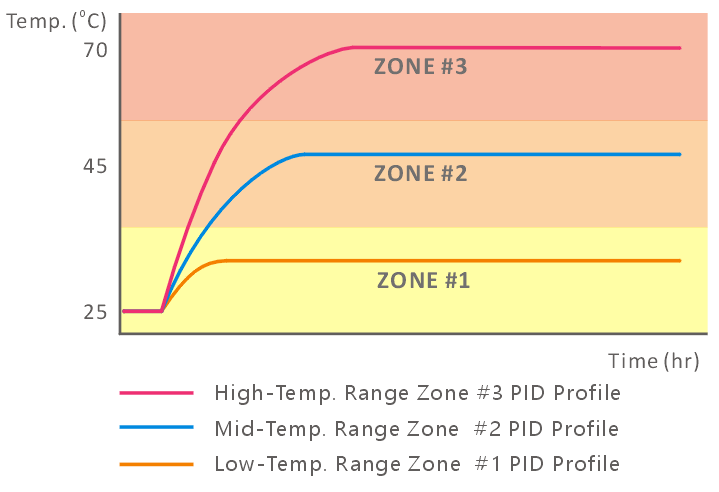

3 GROUP ZONE PID ALGORITHM |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|

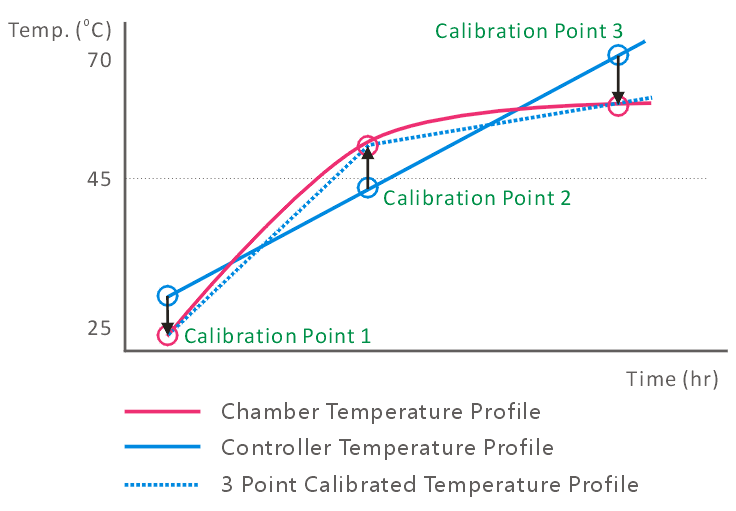

3 POINT CALIBRATION |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|

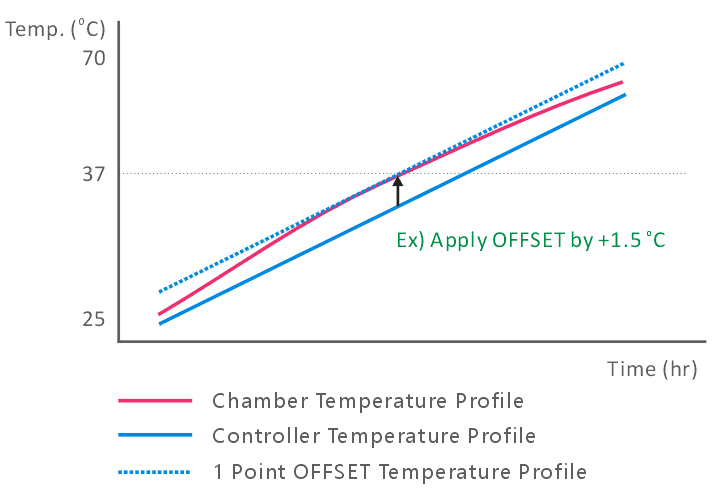

1 POINT OFFSET CALIBRATION |
|
|
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use. |
|
Performance |
|
• Control Temperature Range from ambient +5 oC to +70 oC. • Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free
|
|

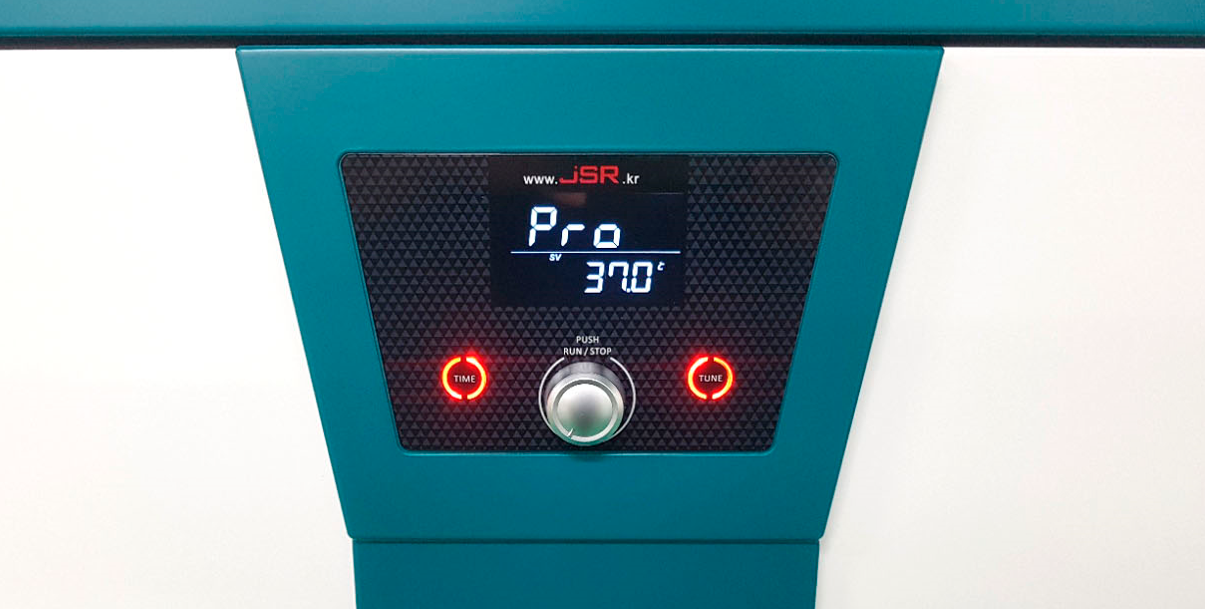

Controller |
|

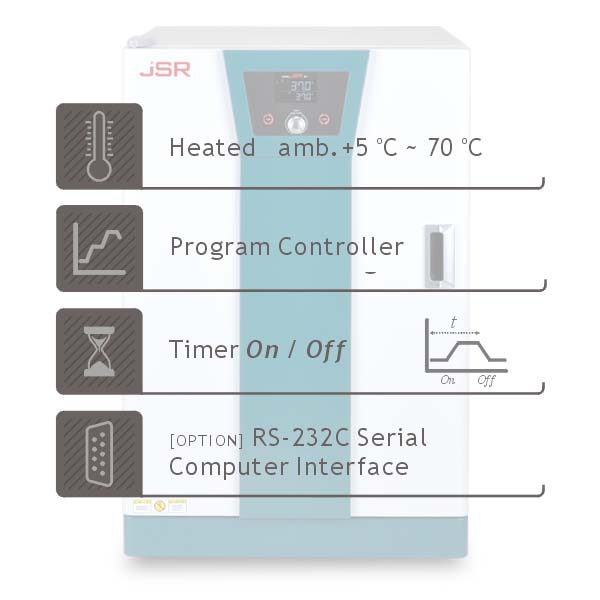

• DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL • Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-GROUP ZONE PID ALGORITHM • 3-POINT CALIBRATION • 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|
• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples • Cable Access Port
|
|
Convenience |
|
• Outer door with self-adhesive magnetic packing • Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing • Opening size adjustable access port • Door switch cut-off heater and fan to reduce thermal drop when put in and out samples
|
|
Safety |
|

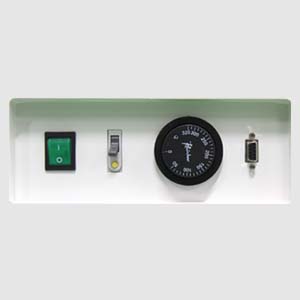

• PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM • DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater and AUDIO VISUAL ALARMS * ALARM HIGH : +5 oC above set temp. * ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • INNER GLASS DOOR AJAR AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF
|

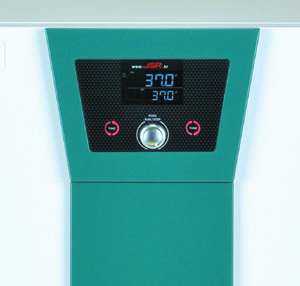

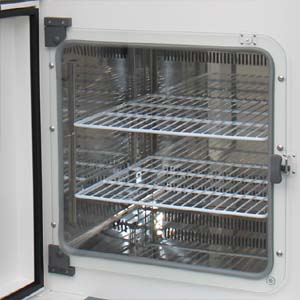

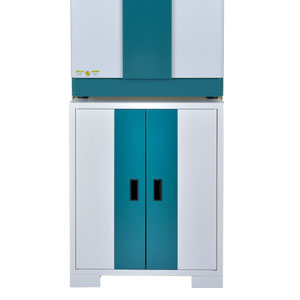

| Controller | Cabinet Stand [OPTION] | Inner Glass Door | ||
 |
 |
 |
||

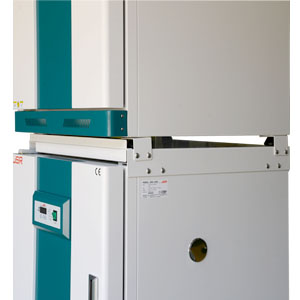

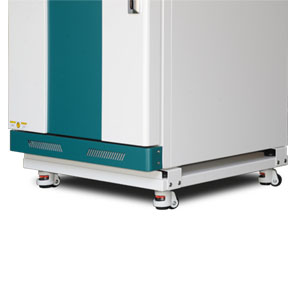

| Base Trolley Kit [OPTION] | Stacking Kit [OPTION] | Safety | ||
 |
 |
 |
Models
|
Art. No. |
||||
|
Dimension Data |
|
|
|
|
|
Chamber Volume |
48 Liters |
96 Liters |
150 Liters |
250 Liters |
|
Inner Dims. (W x D x H mm) |
400 x 300 x 400 |
400 x 400 x 600 |
500 x 500 x 600 |
500 x 500 x 1000 |
|
Outer Dims. (W x D x H mm) |
580 x 535 x 720 |
580 x 635 x 920 |
680 x 735 x 920 |
680 x 735 x 1320 |
|
Inner Glass Door (W x H mm) |
461 x 477 |
461 x 677 |
561 x 677 |
561 x 1077 |
|
No. of Shelf Positions |
12 ea |
20 ea |
20 ea |
36 ea |
|
No. of Shelf included |
2 ea |
2 ea |
2 ea |
3 ea |
|
No. of Cable Access Port |
1 ea |
1 ea |
1 ea |
1 ea |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
|
Heating System |
Forced Air Convection |
|||
|
Temp. Range |
Amb. +5 oC ~ +70 oC |
|||
|
Accuracy at 37.0 oC |
±0.2 oC |
±0.2 oC |
±0.2 oC |
±0.3 oC |
|
Uniformity at 37.0 oC |
±0.5 oC |
±0.5 oC |
±1.0 oC |
±1.5 oC |
|
Heat up time to 37.0 oC |
15 min. |
15 min. |
15 min. |
20 min. |
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
|
Rated voltage |
220 ± 10% VAC |
|||
|
Power frequency |
50 / 60Hz |
|||
|
Heater Output |
150 W |
200 W |
250 W |
400 W |
|
Nominal power |
160 W 0.7 amp |
210 W 1.0 amp |
260 W 1.2 amp |
410 W 2.0 amp |
|
Phase |
1 Phase |
|||
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|||
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSGI-050T |
General Incubator, 48 L including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSGI-100T |
General Incubator, 96 L including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSGI-150T |
General Incubator, 150 L including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
|
JSGI-250T |
General Incubator, 250 L including standard accessories 3 ea x PVC Coated Wire Shelf 12 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A03 |
for JSGI-050T W370 x D280 mm |
|
PHS-A04 |
for JSGI-100T W370 x D380 mm |
|
PHS-A06 |
for JSGI-150T W470 x D480 mm |
|
PHS-A06 |
for JSGI-250T W470 x D480 mm |
|
Art No. |
Wire Shelf, PVC Coated Steel |
|
PHS-C03 |
for JSGI-050T W370 x D280 mm |
|
PHS-C04 |
for JSGI-100T W370 x D380 mm |
|
PHS-C05 |
for JSGI-150T W470 x D480 mm |
|
PHS-C05 |
for JSGI-250T W470 x D480 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
|
Art No. |

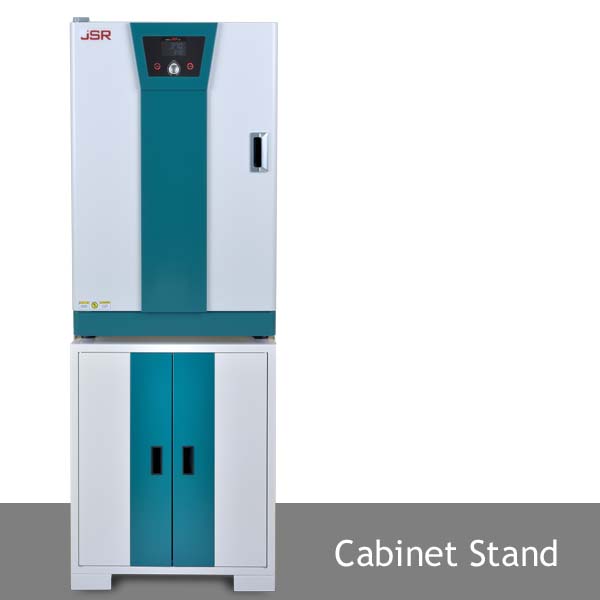

Cabinet Stand with Caster |
|
|
PCG-050 |
for JSGI-050T |
|
|
PCG-100 |
for JSGI-100T |
|
|
PCG-150 |
for JSGI-150T |
|
|
Art No. |

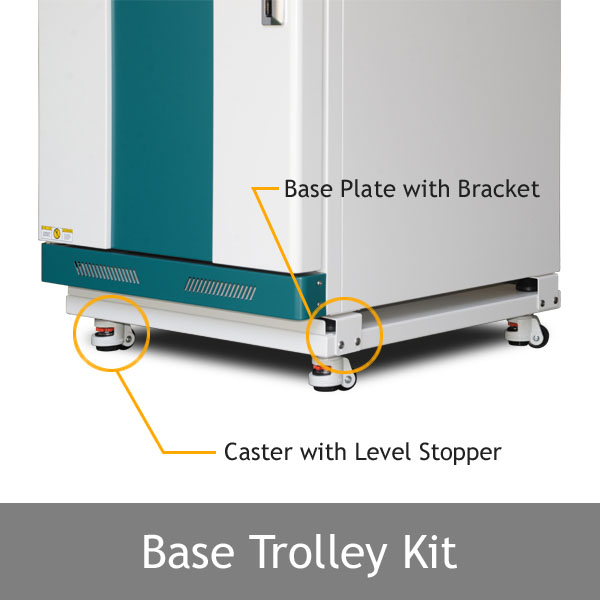

Base Trolley Kit |
|
|
PHA-01G |
for JSGI-050T |
|
|
PHA-03G |
for JSGI-100T |
|
|
PHA-05G |
for JSGI-150T |
|
|
Art No. |

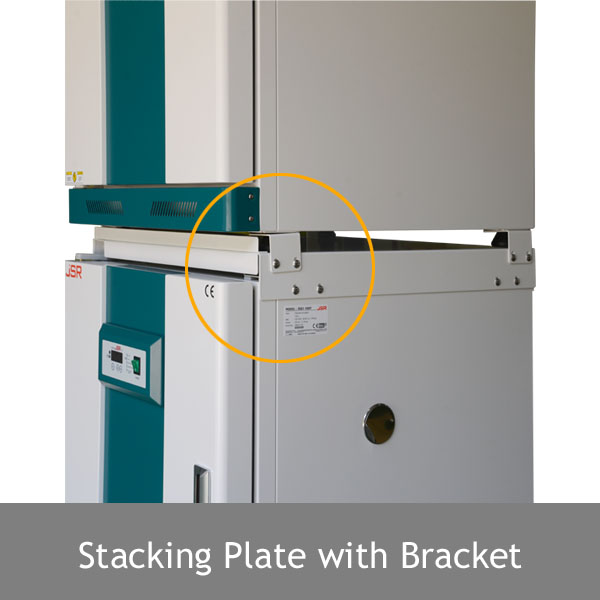

Stacking Kit |
|
|
PHA-02G |
for JSGI-050T |
|
|
PHA-04G |
for JSGI-100T |
|
|
PHA-06G |
for JSGI-150T |
|
