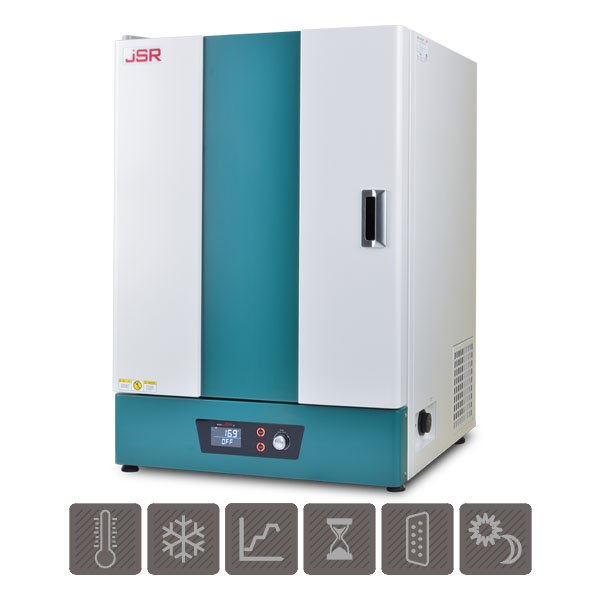

Tabletop Refrigerated Incubator, Programmable, Light ON/OFF Control
Refrigerated Incubator, Tabletop, 10-Step Programmable, Temperature Range +0 °C to +70 °C, Light ON/OFF Program, Chamber Volume 50, 100 liters
 |
catalog-jsbi-xxcpl-incubator-eng.pdf |
|
Download Data Sheet |
|
|
||
|
Tabletop Refrigerated Incubator, Programmable with Light Control |
50 Liter |
100 Liter |
|
|
General Specifications
|
Heating |
Forced Air Convection |
|
Refrigeration |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+0 oC ~ 70 oC |
|
Accuracy |
± 0.2 oC at 20.0 oC |
|
Uniformity |
± 0.5 oC at 20.0 oC |
|
Controller |
JIC-CON 5th Generation Digital PID Temperature Controller |
|
10 Step Temperature Programming Capability, 1 ~ 999 times repeatable |
|
|
Light ON/OFF Program on each program step for Day-Night simulation |
|
|
|
3 Group Zone PID Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over-Cooling Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
|
|
|
|
|
|
|
10 Step Temperature and Day/Night PROGRAM |
|
 |
User can compose 10 steps of varying temperature and light ON/OFF program and can save it in a memory. Composed program can be repeated 1 ~ 999 times or unlimited number of time. |
|
|
3 GROUP ZONE PID ALGORITHM |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
3 POINT CALIBRATION |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
1 POINT OFFSET CALIBRATION |
|
|
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use. |
|
Performance |
|

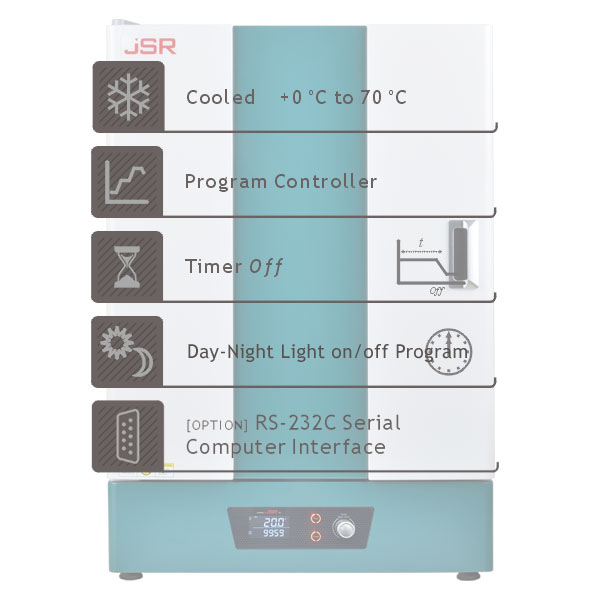

• Control Temperature Range from +0℃ to +70℃ • Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor
|
|
Controller |
|

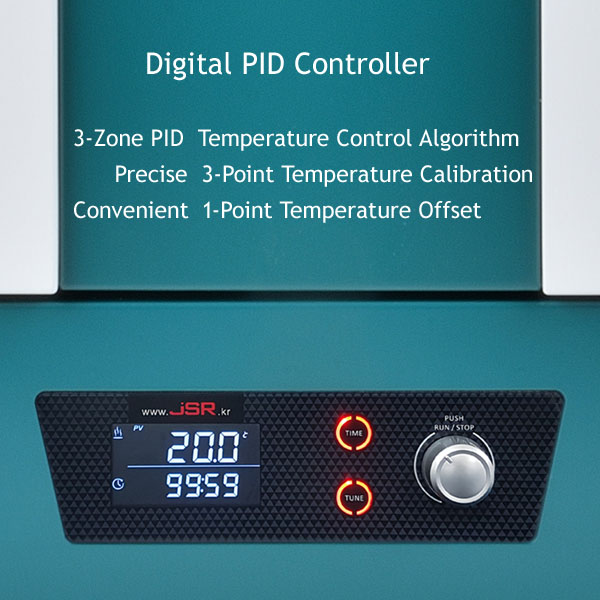

• DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable • Light ON/OFF Program on each program step for Day-Night simulation • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|

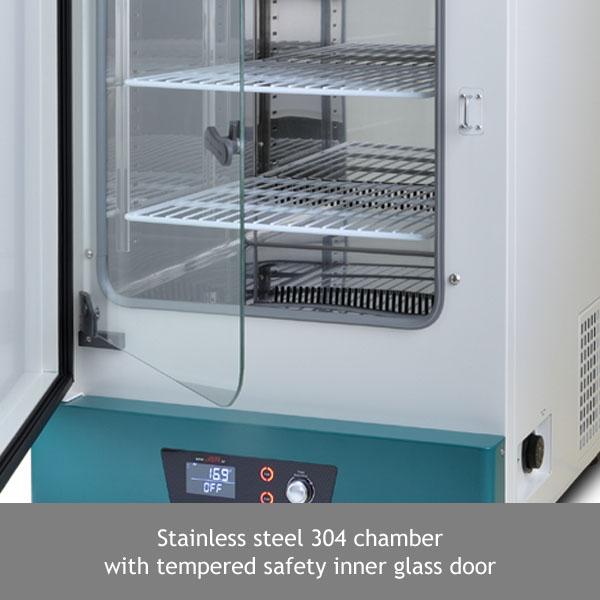

• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples
|
|
Convenience |
|
• Outer door with self-adhesive magnetic packing • Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
|
Safety |
|
• PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM • DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Models
|
|
|||
|
Dimension Data |
|
|
|
|
Chamber Volume |
50 Liters |
100 Liters |
|
|
Inner Dims. (W x D x H mm) |
400 x 360 x 350 |
450 x 450 x 500 |
|
|
Outer Dims. (W x D x H mm) |
580 x 600 x 770 |
630 x 690 x 920 |
|
|
Inner Glass Door (W x H mm) |
461 x 477 |
461 x 677 |
|
|
No. of Shelf Positions |
10 ea by 25mm spacing |
16 ea by 25mm spacing |
|
|
No. of Shelf included |
2 ea |
2 ea |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
Heating System |
Forced Air Convection |
||
|
Cooling System |
Hermetically Sealed Air Cooled Compressor |
||
|
Temp. Range |
+0 oC ~ +70 oC |
||
|
Accuracy |
±0.2 oC at +20.0 oC |
||
|
Uniformity |
±0.5 oC at +20.0 oC |
||
|
Lamp Type, Length |
LED 300 mm |
LED 300 mm |
|
|
Lamp Configuration |
11 watt x 5 ea |
11 watt x 5 ea |
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
Rated voltage |
220 ± 10% VAC |
220 ± 10% VAC |
|
|
Power frequency |
50 / 60Hz |
50 / 60Hz |
|
|
Heater Output |
700 W |
700 W |
|
|
Nominal power |
1.3 kW 6.0 amp |
1.3 kW 6.0 amp |
|
|
Phase |
1 Phase |
1 Phase |
|
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
CEE 7/7 Schuko or BS 1363 |
|
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSBI-050CPL
|
Tabletop Refrigerated Incubator, 50 L with Light Control including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz
|
|
JSBI-100CPL
|
Tabletop Refrigerated Incubator, 100 L with Light Control including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz
|
Optional Accessories
|
Art. No. |
Descriptions |
|
PHS-A23 |
Perforated Shelf, Stainless Steel 304, W370 x D340 mm for JSBI-050CPL |
|
PHS-C09 |
PVC Coated Wire Shelf, W370 x D340 mm for JSBI-050CPL |
|
PHS-A24 |
Perforated Shelf, Stainless Steel 304, W420 x D430 mm for JSBI-100CPL |
|
PHS-C10 |
PVC Coated Wire Shelf, W420 x D430 mm for JSBI-100CPL |
|
PHS-A99 |
Shelf Support, Set of 4 ea |
