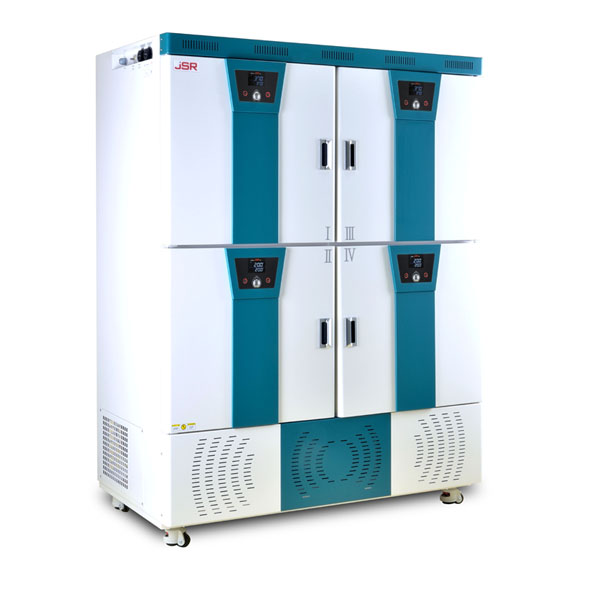

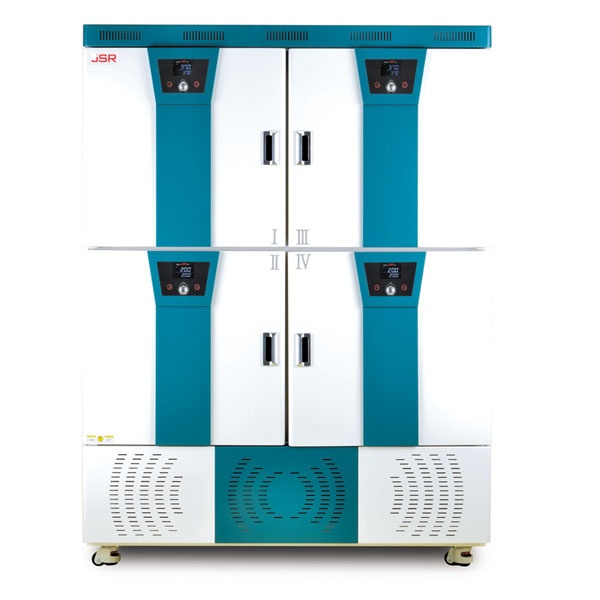

4 x 125L Four Chamber Incubator
Heated, Refrigerated Incubator, 125 Liter Four Chamber, 10 Step Programmable, Light ON/OFF Program Control
 |
catalog-jsmi-04tcpl-incubator-eng.pdf |
|
Download Data Sheet |
||||
|
Product Selection Guide |
|
|
|
|
|
Temperature Range |
amb.+5 oC ~ 70 oC |
+0 oC ~ 70 oC |
+0 oC ~ 70 oC |
+0 oC ~ 70 oC |
|
Heated |
O |
O |
O |
O |
|
Refrigerated |
X |
O |
O |
O |
|
Fixed Temperature Control |
O |
O |
O |
O |
|
10-Step Temperature Program |
X |
X |
O |
O |
|
10-Step Light ON/OFF Program |
X |
X |
X |
O |
General Specifications
|
Heating |
Forced Air Convection |
|
Refrigeration |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
ambient +5 oC ~ 70 oC [ JSMI-04T ] +0 oC ~ 70 oC [ JSMI-04C, 04CP, 04CPL ] |
|
Accuracy |
± 0.2 oC |
|
Uniformity |
± 1.0 oC |
|
Controller |
JIC-CON 5th Generation Digital PID Temperature Controller |
|
10 Step Temperature Programming Capability, 1 ~ 999 times repeatable [ JSMI-04CP, CPL ] |
|
|

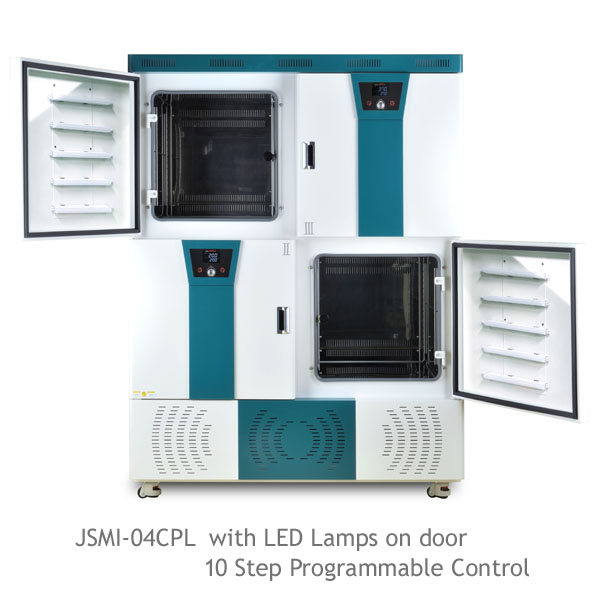

Light ON/OFF Program on each program step for Day-Night simulation [ JSMI-04CPL ] |
|
|
|
3 Group Zone PID Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over-Cooling Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
|
|
|
|
|
|
|
10 Step Temperature and Day/Night PROGRAM |
|
 |

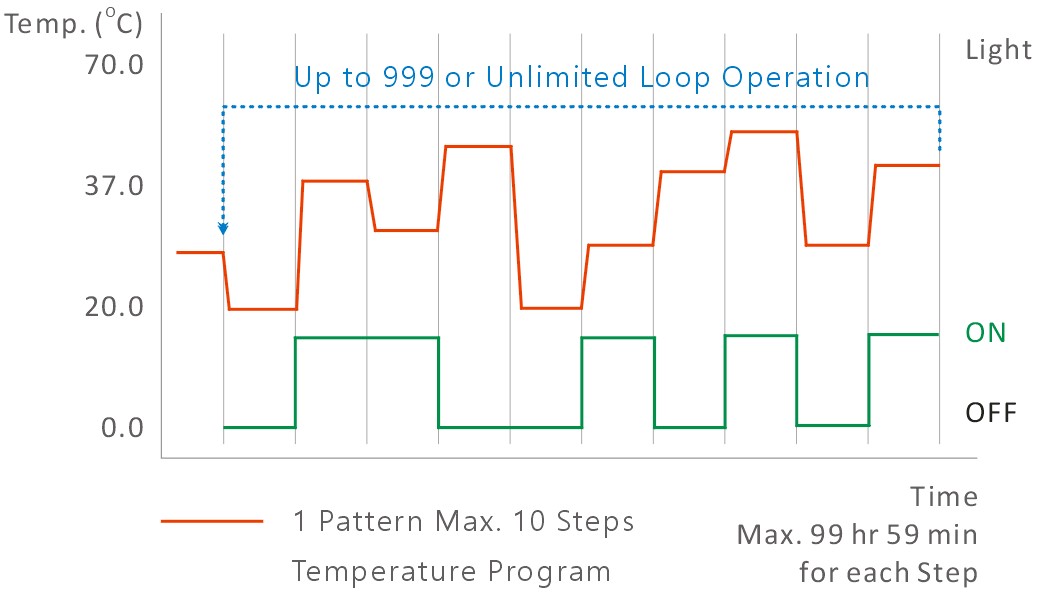

JSMI-04CP, JSMI-04CPL only User can compose 10 steps of varying temperature and light ON/OFF program and can save it in a memory. Composed program can be repeated 1 ~ 999 times or unlimited number of time. |
|
|
3 GROUP ZONE PID ALGORITHM |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
3 POINT CALIBRATION |
|
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
|
|
1 POINT OFFSET CALIBRATION |
|
|
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use. |
|
Performance |
|
• Control Temperature Range JSMI-04T from ambient +5℃ to +70℃ JSMI-04C, 04CP, 04CPL from +0℃ to +70℃ • Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor
|
|

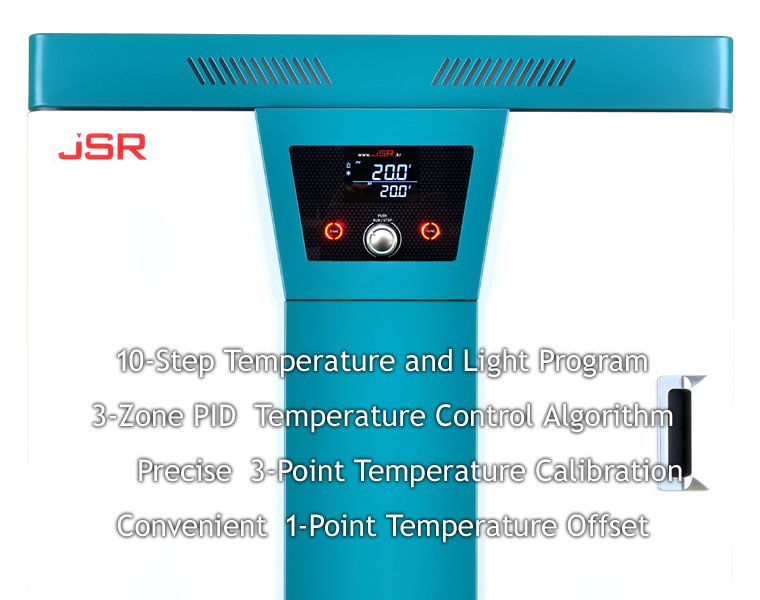

Controller |
|
• DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable [ JSMI-04CP, 04CPL only ] • Light ON/OFF Program on each program step for Day-Night simulation [ JSMI-04CPL only ] • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|

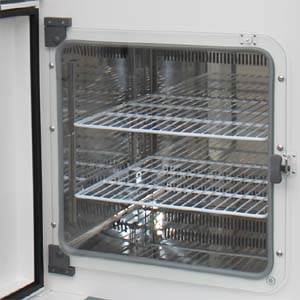

• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples
|
|
Convenience |
|

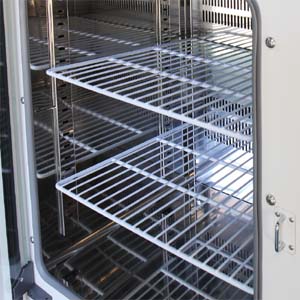

• Outer door with self-adhesive magnetic packing • Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
|
Safety |
|
• PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM • DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Model
|
|
||||
|
Dimension Data |
|
|
|
|
|
Chamber Volume |
4 chamber x 125 L |
← |
← |
← |
|
Inner Dims. (W x D x H mm) |
500 x 500 x 500 |
← |
← |
← |
|
Outer Dims. (W x D x H mm) |
1365 x 830 x 1815 |
← |
← |
1365 x 850 x 1815 |
|
No. of Shelf Positions |
16 ea |
← |
← |
← |
|
No. of Shelf included |
8 ea |
← |
← |
← |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
|
Heating System |
Forced Air Convection |
|||
|
Cooling System |
none |
Compressor |
← |
← |
|
Temp. Range |
amb.+5 oC ~ +70 oC |
+0 oC ~ +70 oC |
← |
← |
|
Accuracy at +20.0 oC |
±0.2 oC at +37.0 oC |
±0.2 oC at +20.0 oC |
← |
← |
|
Uniformity at +20.0 oC |
±1.0 oC at +37.0 oC |
±1.0 oC at +20.0 oC |
← |
← |
|
Lamp Type, Length |
none |
none |
none |
LED 300 mm |
|
Lamp Configuration |
none |
none |
none |
5 watt x 5 ea |
|
|
|
|
|
|
|
Controller |
|
|
|
|
|
Processor |
Digital Microprocessor PID Temperature Controller |
|||
|
10 Step Temperature Program |
n/a |
n/a |
yes |
yes |
|
Light ON/OFF Program |
n/a |
n/a |
n/a |
yes |
|
|
|
|
|
|
|
Electrical Data |
||||
|
Rated voltage |
220 ± 10% VAC |
← |
← |
← |
|
Power frequency |
50 / 60Hz |
← |
← |
← |
|
Heater Output |
4 x 200 W |
4 x 1.0 kW |
← |
← |
|
Nominal power |
880 W 4.0 amp |
6.8 kW 30.8 amp |
← |
← |
|
Phase |
1 Phase |
← |
← |
← |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 ( Two separate power cords for two each chambers ) |
|||
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSMI-04T |
125 L Four Chamber Incubator |
220 VAC 1~ ph 50/60Hz |
|
|
|
|
|
JSMI-04C |
125 L Four Chamber Refrigerated Incubator |
220 VAC 1~ ph 50/60Hz |
|
|
|
|
|
JSMI-04CP |
125 L Four Chamber Refrigerated Incubator Programmable |
220 VAC 1~ ph 50/60Hz |
|
|
|
|
|
JSMI-04CPL |
125 L Four Chamber Refrigerated Incubator Programmable with Light Control |
220 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art. No. |
Descriptions |
|
PHS-A06 |
Perforated Shelf, Stainless Steel 304, W470 x D480 mm for JSMI-04 |
|
PHS-C05 |
PVC Coated Wire Shelf, W470 x D480 mm for JSMI-04 |
|
PHS-A99 |
Shelf Support, Set of 4 ea |
