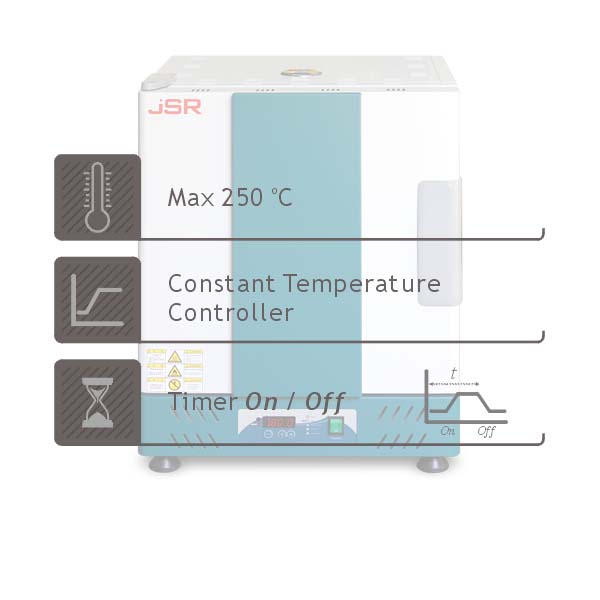

Compact Oven

Download Data Sheet

JSOF-030E

 JSON-050E

Compact Oven

30 Liter

50 Liter

Heating

JSOF-xxxE Forced Air Convection

JSON-xxxE Grativy Air Convection

Temp. Range

ambient + 10°C ~ 250°C

Accuracy

± 0.2°C at 180°C (JSOF-030S)

Uniformity

± 1.0°C at 180°C (JSOF-030S)

Control

Microprocessor PID Control Auto START / STOP Timer

Sensor

Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Chamber – Stainless Steel 304

Insulation – 50mm thick woven mineral wool

Shelf -including stainless steel wire shelf

optional perforated stainless steel shelf

Electric

220±10% VAC 50/60Hz 1-Phase

Plug config.

CEE 7/7 Schuko or BS 1363

Art No.

JSOF-030E

JSOF-050E

JSON-030E

JSON-050E

Hot Air Circulation

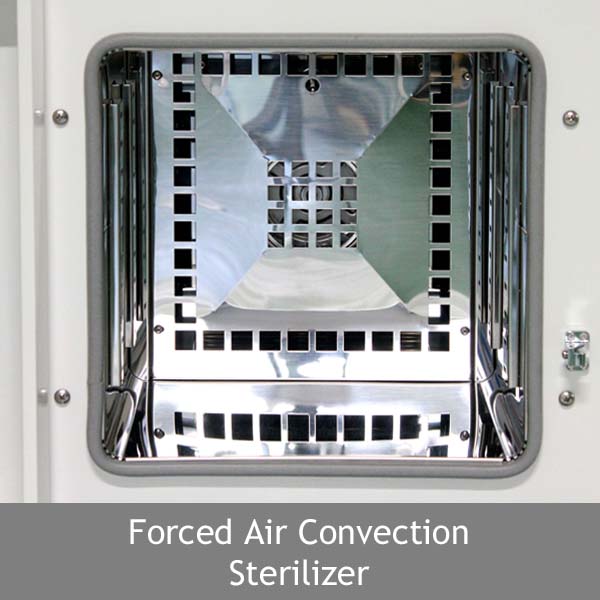

Forced Convection

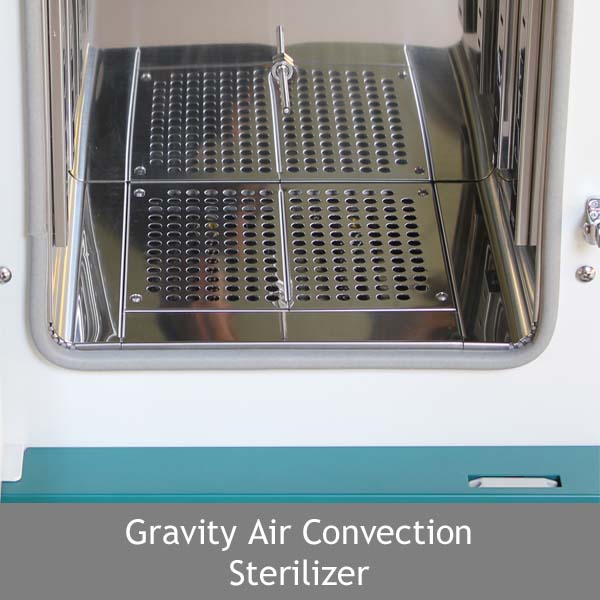

Gravity Convection

Chamber Volume

33 L

48 L

33 L

48 L

Dimensions

Inner

350 x 270 x 350

400 x 300 x 400

350 x 270 x 350

400 x 300 x 400

W x D x H mm

Outer

510 x 570 x 660

560 x 585 x 710

510 x 490 x 660

560 x 505 x 710

Temperature Range

ambient +10°C to 250°C

Accuracy at 180°C

± 0.2°C

± 0.2°C

± 0.3°C

± 0.3°C

Uniformity at 180°C

± 1.0°C

± 1.0°C

± 2.0°C

± 2.0°C

Heat up time to 180°C

15 min.

No. of Shelves / Max. No.

2 / 10

2 / 12

2 / 10

2 / 12

No. of Ventilation damper

1

Heater Capacity

800 W

1.0 kW

800 W

1.2 kW

Power Rating

3.8 Amp

4.7 Amp

3.8 Amp

5.5 Amp

Power Plug

CEE 7/7 Schuko European Standard   or BS 1363 British Plug

Controller

JSC-0D Digital PID Controller

• ±0.1°C Digital PID Controller with LED Display

• Automatic START/STOP timer

• Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation

• Temperature calibration

• Auto-tuning function

• Class A Pt-100 Ω sensor

Construction

• Durable epoxy powder coated metallic casing

• Ventilation damper

• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage

Performance

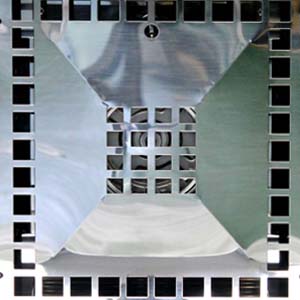

• Choice of Forced or Gravity air convection

• Separate heating compartment prevents contamination and maintenance free

• 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust

Convenience

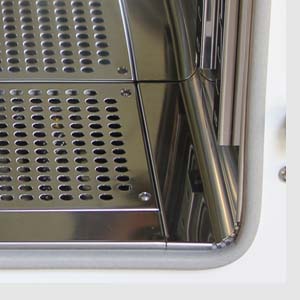

• Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevents leakage

• Removable and height adjustable shelf by 25mm spacing

• Easy to open and air-tight one touch door latch

• Opening size adjustable ventilation damper

• Non-contact door switch cut-off heater and/or blower

Safety

• DUAL OVER TEMP. CUT-OFF

    Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature

    Analog system cut-off heater 10% above set temp.

• MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit

• DOOR SENSOR : Door switch cut-off heater and blower when door opened

• SENSOR DISCONNECTION ALARM

• OVER CURRENT CUT-OFF : Electrical Leakage Breaker

Art No.

Descriptions

Capacity

Elec. Req.

Net Wt.

Ship Wt.

JSOF-030E

Compact Oven, Forced Convection

33 L

220 VAC 50/60Hz

35 kg

41 kg

JSOF-050E

Compact Oven, Forced Convection

48 L

220 VAC 50/60Hz

46 kg

53 kg

JSON-030E

Compact Oven, Gravity Convection

33 L

220 VAC 50/60Hz

30 kg

36 kg

JSON-050E

Compact Oven, Gravity Convection

48 L

220 VAC 50/60Hz

40 kg

47 kg

Art No.

Perforated Shelf, Stainless Steel 304

PHS-A02

for JSOF-030E       W320 x D250 mm

PHS-A03

for JSOF-050E       W370 x D280 mm

PHS-A02

for JSON-030E       W320 x D250 mm

PHS-A03

for JSON-050E       W370 x D280 mm

Art No.

Wire Shelf, Stainless Steel 304

PHS-B02

for JSOF-030E       W320 x D250 mm

PHS-B03

for JSOF-050E       W370 x D280 mm

PHS-B02

for JSON-030E       W320 x D250 mm

PHS-B03

for JSON-050E       W370 x D280 mm

PHS-A99

Shelf Support, Set of 4
