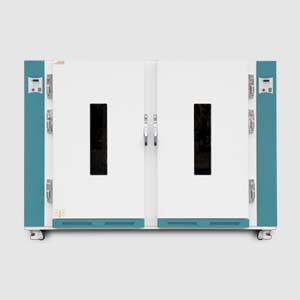

Dual Chamber Industrial Oven
Oven, Forced Convection, Dual Chamber, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 2 x 432 liters, 2 x 612 liters
catalog-jsof-w-oven-eng.pdf |
Download Data Sheet |
JSOF-600W |
|
||
Dual Chamber Oven |
2 x 432 Liter |
2 x 612 Liter |
General Specifications

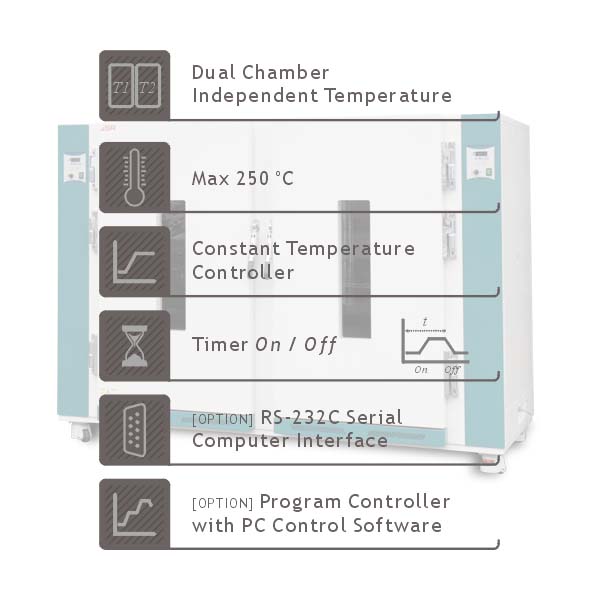

Configuration |
Dual Chamber Independent Temp. Control |
Heating |
Forced Air Convection |
|
Dual Heating Chamber System |
Temp. Range |
ambient + 10°C ~ 250°C |
Accuracy |
± 0.3°C at 120°C (JSOF-400W) |
Uniformity |
± 2.0°C at 120°C (JSOF-400W) |
Control |
Microprocessor PID Control Auto START / STOP Timer |
Sensor |
Class A Pt-100 Ω Sensor |
Safety |
Over-Temperature Cut-Off |
|
Over Current Cut-Off |
Material |
Body - Epoxy Powder Coated Steel |
|
Chamber – Stainless Steel 304 |
|
Insulation – 50mm thick woven mineral wool |
|
Floor Standing with Caster |
|
Shelf -including stainless steel wire shelf |
|
optional perforated stainless steel shelf |
Electric |
220±10% VAC 50/60Hz 1-Phase |
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Features

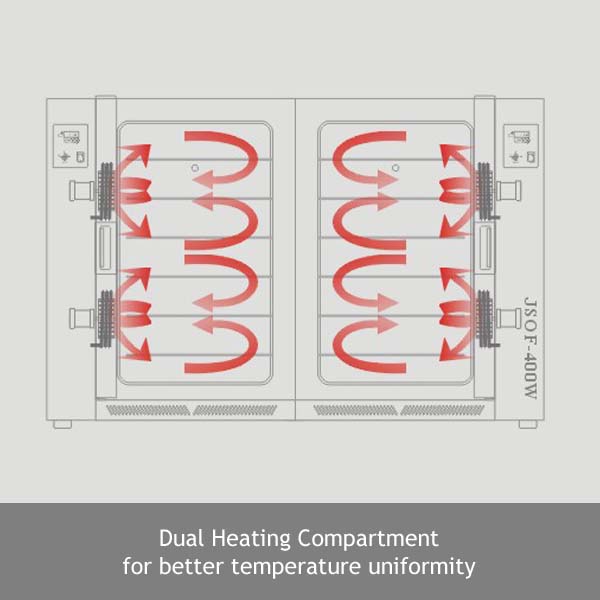

Construction | Chamber | Dual Heating Compartment | ||
Performance |
• Control Temperature Range from ambient +10 oC to 250 oC
• Forced air convection for fast drying application • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on side wall for contamination and maintenance free • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
Controller |
• ±0.1°C Digital PID Controller with LED Display • Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|
Construction |

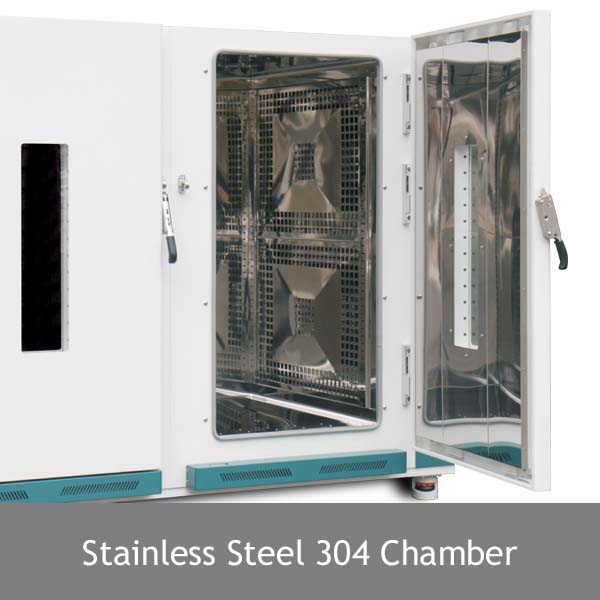

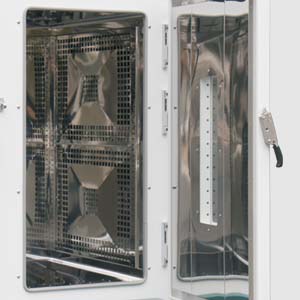

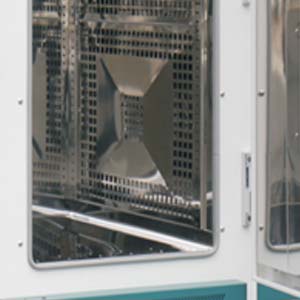

• Durable epoxy powder coated metallic casing • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Double layered glass window for easy observation of samples
|
Convenience |
• Floor standing large capacity independent temperature control dual chamber oven provides more throughput and productivity of sample treatment • Double layered tempered safety glass window for easy observation of samples • Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Removable and height adjustable shelf by 25mm spacing • Opening size adjustable ventilation damper • Door switch cut-off heater and blower to protect user from exposure to hot air
|
Safety |
• DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit • DOOR SENSOR : Door switch cut-off heater and/or blower when door opened • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Models
Art No. |
|||
Chamber Volume |
2 Chamber x 432 L |
2 Chamber x 612 L |
|
Dimensions |
Inner |
600 x 600 x 1200 / chamber |
600 x 850 x 1200 / chamber |
W x D x H mm |
Outer |
2165 x 775 x 1545 |
2165 x 1025 x 1545 |
|
Clearance |
2165 x 775 x 1695 (incl. Damper) |
2165 x 10025 x 1695 (incl. Damper) |
|
Window |
W150 x H615 mm |
|
Temperature Range |
ambient +10°C to 250°C |
||
Accuracy at 120°C |
± 0.3°C |
± 0.3°C |
|
Uniformity at 120°C |
± 2.0°C |
± 3.0°C |
|
Heat up time to 120°C |
15 min. |
||
No. of Shelves / Max. No. |
4 / 22 per chamber |
4 / 22 per chamber |
|
No. of Ventilation damper |
1 per chamber |
||
Heater Capacity |
4 x 1.5 kW |
4 x 2.0 kW |
|
Power Rating |
2 x 13.9 Amp per chamber |
2 x 18.5 Amp per chamber |
|
Power Plug |
2 x CEE 7/7 Schuko |
2 x 30 AMP |
Ordering Information
Art No. |
Descriptions |
Capacity |
Elec. Req. |
Net Wt. |
Ship Wt. |
JSOF-400W |
Dual Chamber Oven |
2 x 432 L |
220 VAC 50/60 Hz |
280 kg |
350 kg |
JSOF-600W |
Dual Chamber Oven |
2 x 612 L |
220 VAC 50/60 Hz |
330 kg |
460 kg |
Optional Accessories
Art No. |
Perforated Shelf, Stainless Steel 304 |
PHS-A09 |
for JSOF-400W W570 x D580 mm |
PHS-A10 |
for JSOF-600W W570 x D830 mm |
|
|
Art No. |
Wire Shelf, Stainless Steel 304 |
PHS-B09 |
for JSOF-400W W570 x D580 mm |
PHS-B10 |
for JSOF-600W W570 x D830 mm |
|
|
PHS-A99 |
Shelf Support, Set of 4 |
