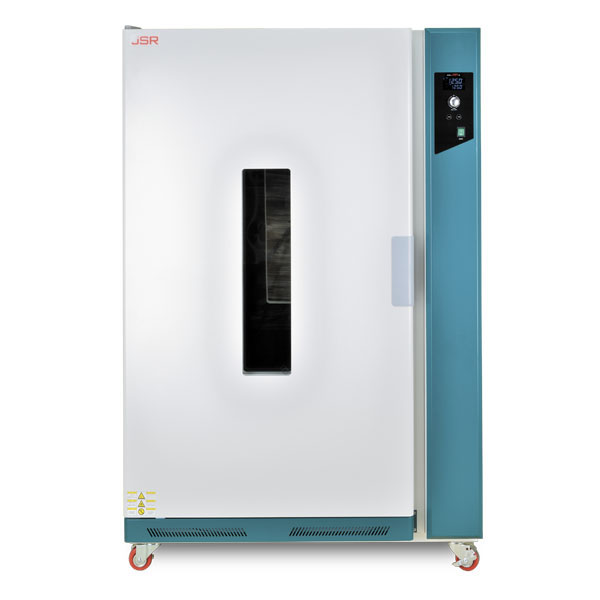

Programmable Upright Convection Oven

Download Data Sheet

JSOF-250P

Programmable Upright Oven

250 Liter

Heating

Forced Air Convection

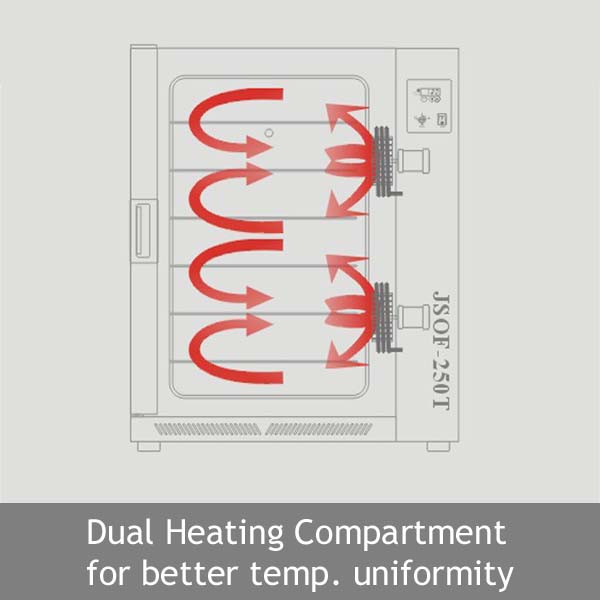

Dual heating chamber system

Temp. Range

ambient + 10°C ~ 250°C

Accuracy

± 0.3°C at 120°C (JSOF-250P)

Uniformity

± 1.5°C at 120°C (JSOF-250P)

Control

JIC-CON 5th GEN Programmable PID Controller

Program

1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat

3-Zone Temperature Control Algorithm

Calibration

3-Point Temperature Calibration

1-Point Temperature Offset Calibration

Sensor

Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Chamber – Stainless Steel 304

Insulation – 50mm thick woven mineral wool

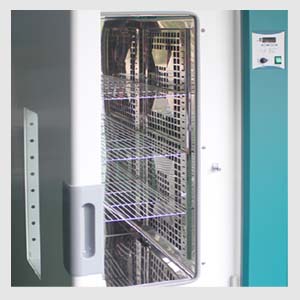

Shelf -including stainless steel wire shelf

optional perforated stainless steel shelf

Electric

220±10% VAC 50/60Hz 1-Phase

Plug config.

CEE 7/7 Schuko or BS 1363 or 30 AMP

10 STEP PROGRAMMING CAPABILITY

User can compose 10 steps of varying temperature

program and can save it in a memory.

Composed program can be repeated 1 ~ 999 times

or unlimited number of time.

3 GROUP ZONE PID ALGORITHM

Complete temperature range is divided into three

zones (LOW/MIDDLE/HIGH) and each ZONE has

its individual PID Algorithm to provides precise

and superior temperature control characteristic

of whole temperature range.

3 POINT CALIBRATION FUNCTION

An excellent calibration tool to calibrate chamber

at THREE DIFFERENT TEMPEATURE POINTS

to adjust multiple TEMPERTURE BIAS

to increase temperature accuracy

of whole temperature range.

1 POINT OFFSET CALIBRATION

Provides simple and easy calibration tool

to calibrate chamber at ONE SPECIFIC

TEMPERTURE POINT of frequent use.

Art No.

JSOF-250P

JSOF-400P

JSOF-700P

Chamber Volume

250 L

372 L

655 L

Dimensions

Inner

500 x 500 x 1000

610 x 610 x 1000

710 x 710 x 1300

W x D x H mm

Outer

895 x 675 x 1360

1050 x 785 x 1360

1105 x 885 x 1660

Window

W150 x H460

W150 x H460

W150 x H615

Temperature Range

ambient +10°C to 250°C

Accuracy at 120°C

± 0.3°C

± 0.3°C

± 0.3°C

Uniformity at 120°C

± 1.5°C

± 2.0°C

± 3.0°C

Heat up time to 120°C

10 min.

15 min.

15 min.

No. of Shelves / Max. No.

3 / 36

4 / 36

6 / 48

No. of Ventilation damper

1

Heater Capacity

2 x 1.5 kW

2 x 1.7 kW

2 x 2.5 kW

Power Rating

14.0 Amp

16.0 Amp

23.2 Amp

Power Plug

CEE 7/7 Schuko

30 AMP

30 AMP

Performance

• Control Temperature Range from ambient +10 ^oC to 250 ^oC

• Forced air convection for fast drying application

• Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity

• Separate heating compartment located on side wall for contamination free and maintenance free

• 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust

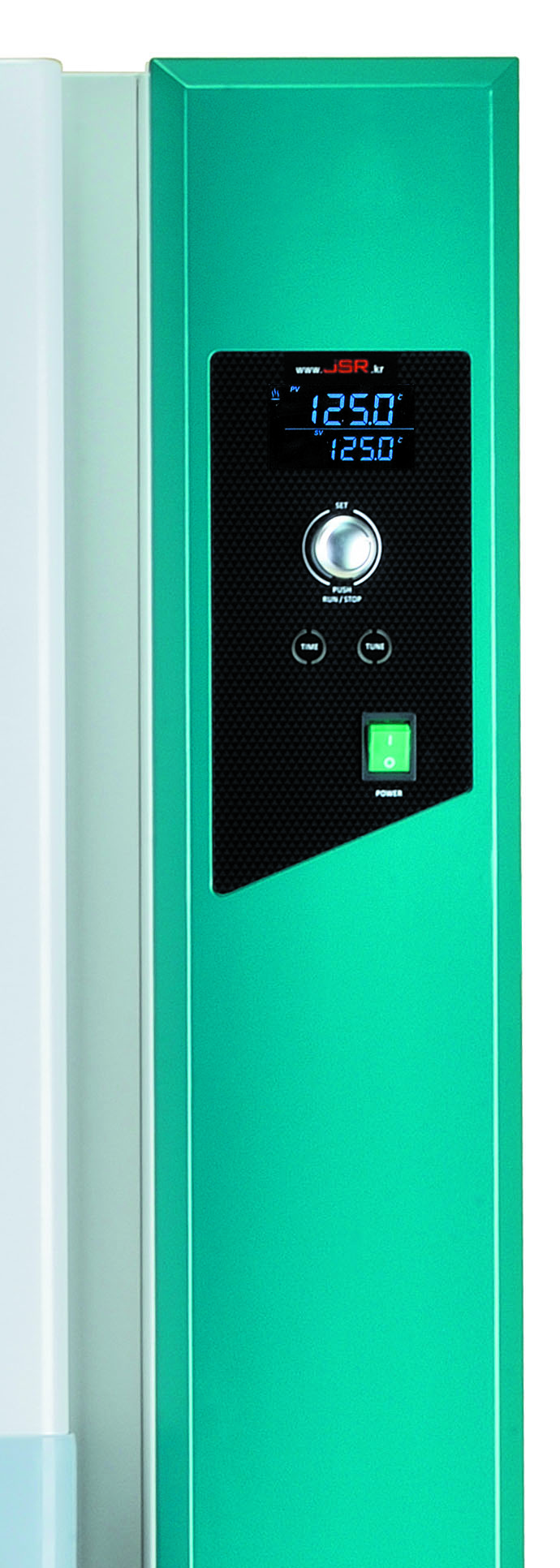

Controller

• DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER

   Integrated Digital Microprocessor Control System

• GRAPHIC LCD DISPLAY

   Back Light Graphic LCD Display provides user-friendly operating information

• UV COATED POLYCARBONATE TOUCH PANEL

   Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability

• ENCODER TYPE JOG DIAL

   Push to Start and Stop, Rotary turn to change values ​​provides easy and simple user interface

• 0.1 °C CONTROL RESOLUTION

• 1 Pattern, 10 Steps, 1 ~ 999 times loop operation programmable

• Auto-Stop Timer   1 min ~ 99 hour 59 min and alarm

• Auto-Start Timer   1 min ~ 99 hour 59 min and alarm

• Temperature and Timer Memory Function in frequent use

• 3-ZONE PID ALGORITHM

• 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION

• POWER and TIMER RESTORE FUNCTION in case electric power outage

• CLASS A PT-100 Ω Sensor

• RS-232C PC COMMUNICATION INTERFACE [OPTION]

Construction

• Durable epoxy powder coated metallic casing

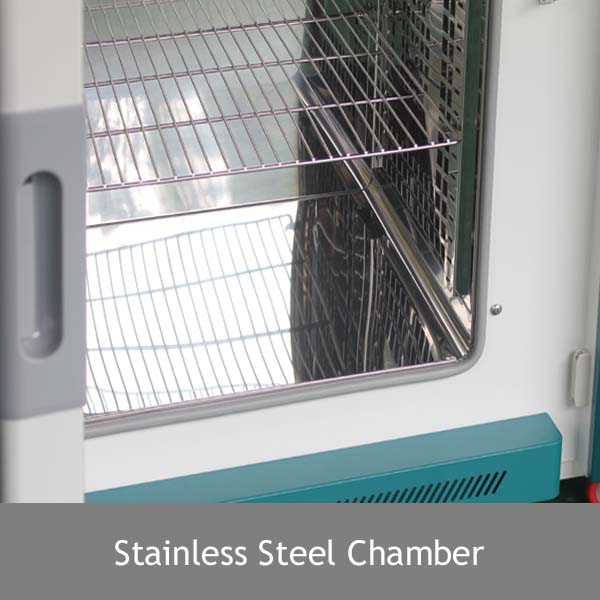

• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage

• Double layered glass window for easy observation of samples

• Ventilation damper

Convenience

• Floor standing large capacity oven provides more through-put and productivity of sample treatment

• Double layered tempered safety glass window for easy observation of samples

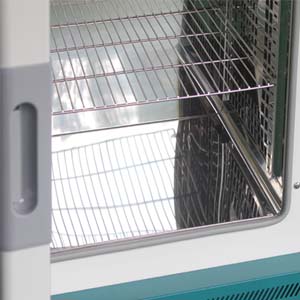

• Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevent leakage

• Removable and height adjustable shelf by 25mm spacing

• Easy-to-open and air-tight one touch door latch

• Opening size adjustable ventilation damper

• Door switch cut-off heater and blower to protect user from exposure to hot air

• Caster for easy transport

Safety

• PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM

• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT

   Controller cut-off heater and AUDIO VISUAL ALARMS

   ALARM HIGH : +10 ^oC above set temp.

   ALARM LOW : -10 ^oC below set temp.

• Independent analog thermostat cut-off heater above set temperature

• DOOR OPEN AUDIO VISUAL ALARM

• OVER CURRENT CUT-OFF : Electric Circuit Breaker

Art No.

Descriptions

Capacity

Elec. Req.

Net Wt.

Ship Wt.

JSOF-250P

Programmable Upright Convection Oven

250 L

220 VAC 50/60 Hz

115 kg

135 kg

JSOF-400P

Programmable Upright Convection Oven

372 L

220 VAC 50/60 Hz

150 kg

200 kg

JSOF-700P

Programmable Upright Convection Oven

655 L

220 VAC 50/60 Hz

190 kg

255 kg

Art No.

Perforated Shelf, Stainless Steel 304

PHS-A06

for JSOF-250T       W470 x D480 mm

PHS-A11

for JSOF-400T       W580 x D590 mm

PHS-A15

for JSOF-700T       W680 x D690 mm

Art No.

Wire Shelf, Stainless Steel 304

PHS-B06

for JSOF-250T       W470 x D480 mm

PHS-B11

for JSOF-400T       W580 x D590 mm

PHS-B12

for JSOF-700T       W680 x D690 mm

PHS-A99

Shelf Support, Set of 4
